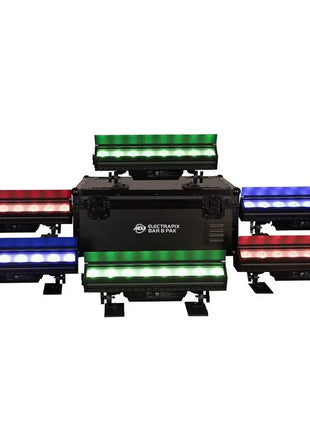

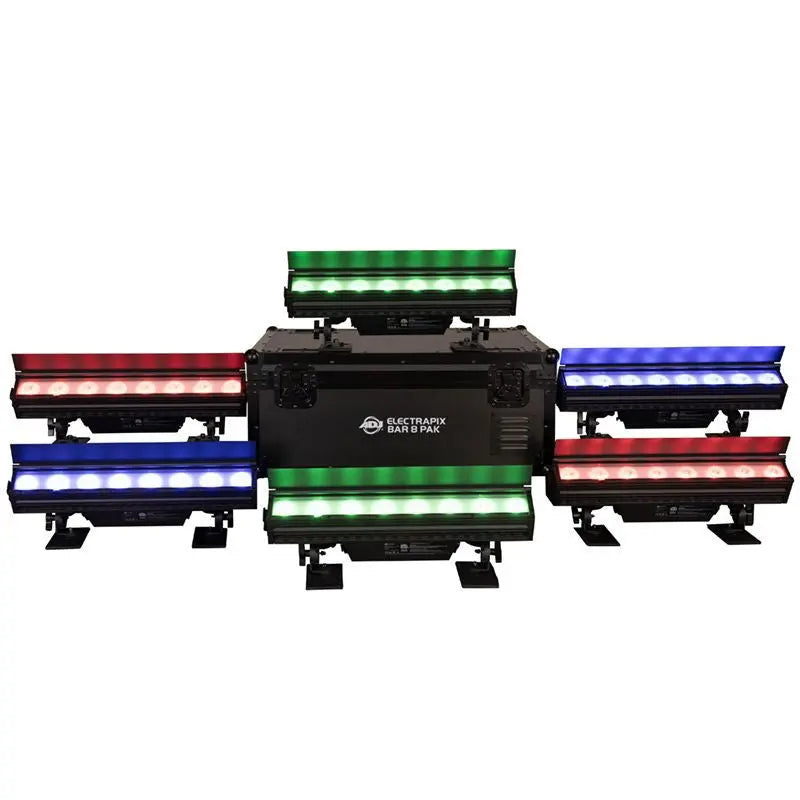

The ElectraPix Bar 8 Pak is a comprehensive lighting solution that combines cutting-edge technology with convenience and portability. This lighting package includes everything you need to elevate your lighting setup for events performances or any situation where vibrant and dynamic illumination is essential.
Key Components:
1. ElectraPix Bar 8 fixtures (x6): Unleash the power of six (6) ElectraPix Bar 8 fixtures each equipped with state-of-the-art technology including long-life LEDs battery-powered and wireless DMX. These lights deliver vivid and customizable colours allowing you to create captivating light displays that suit any atmosphere. Perfect for stage productions concerts or any event where lighting plays a crucial role.
2. Charging Bases (x6): Stay powered up and ready to shine with the included six charging bases. Effortlessly recharge your ElectraPix Bar 8 lights ensuring they are always ready for action. The convenient design of the charging bases allows for efficient organization and easy access making setup and teardown a breeze.
3. UC-IR24 Remote Control (x1): Take command of your lighting setup with the UC-IR24 remote control. This versatile device allows you to adjust colours brightness and other settings from a distance providing you with convenient control over your lighting environment.
4. Outdoor Locking Power Cable (x6): Designed for durability and reliability the outdoor locking power cables ensures a secure and weather-resistant connection.

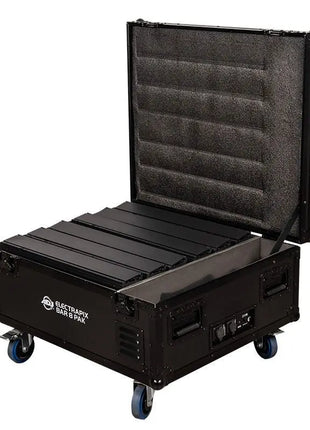

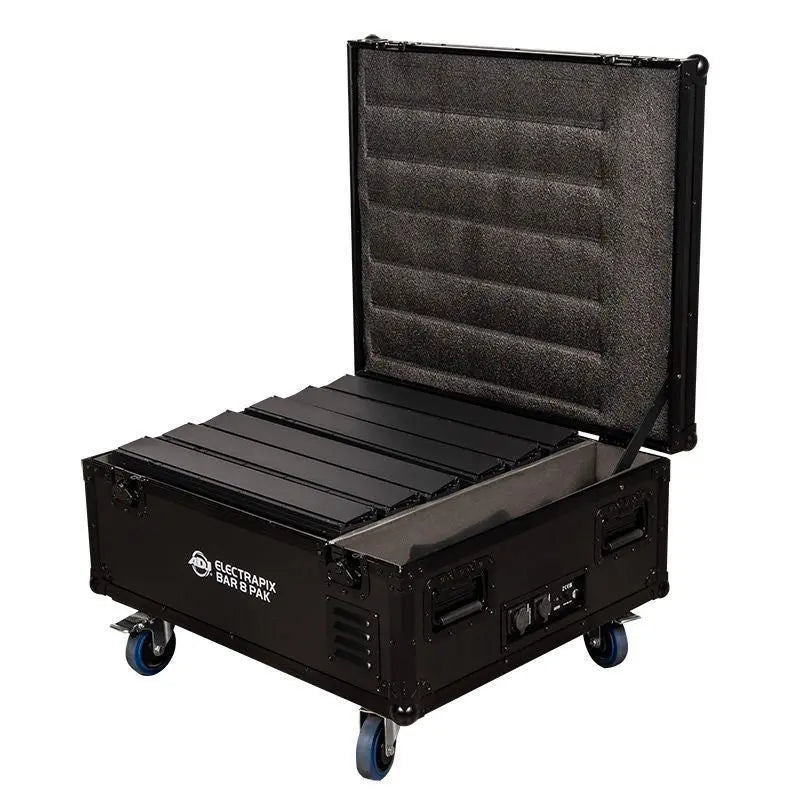

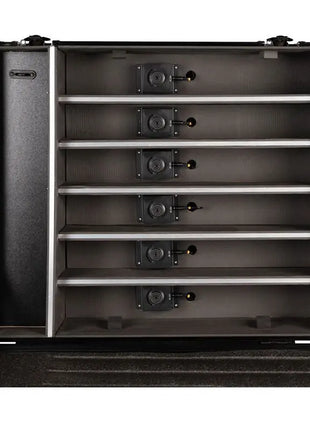

5. ElectraPix Bar 8 FC (Flight Case) (x1): Safeguard your investment and transport your equipment with ease using the ElectraPix Bar 8 FC flight case. This rugged and well-designed case provides a secure and organized storage solution for your lights charging bases remote control and power cable. The dimensions of the flight case (LxWxH): 31.8” x 27.42” x 17.4” (807.5x696.4x441.9mm) ensure that your lighting setup remains protected during transit.
With the ElectraPix Bar 8 Pak you have a versatile and complete lighting solution that combines innovation convenience and portability making it an ideal choice for lighting and event professionals. Illuminate your world and captivate your audience with the power of ElectraPix Bar 8.
Specifications
ElectraPix Bar 8 Pak Includes:
(6) ElectraPix Bar 8 Pak fixtures (1) ElectraPix Bar 8 FC flight case (6) ElectraPix Bar 8 IPCB charging bases & power supplies (1) UC-IR24 wireless infrared controller (6) IP65 locking power cables
ElectraPix Bar 8 Pak Features:

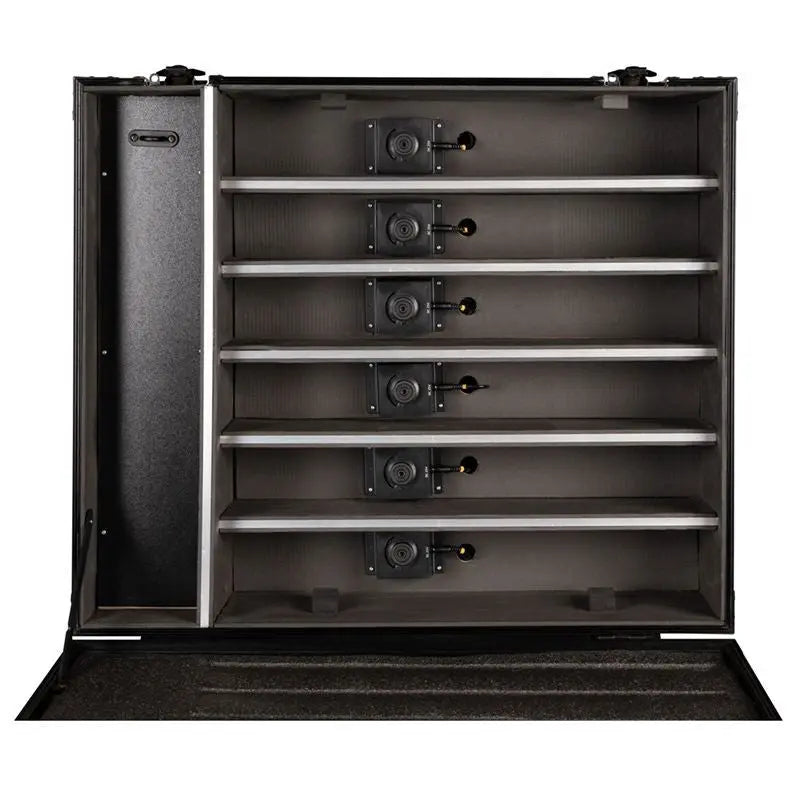

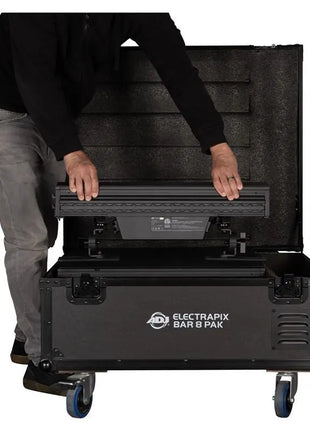

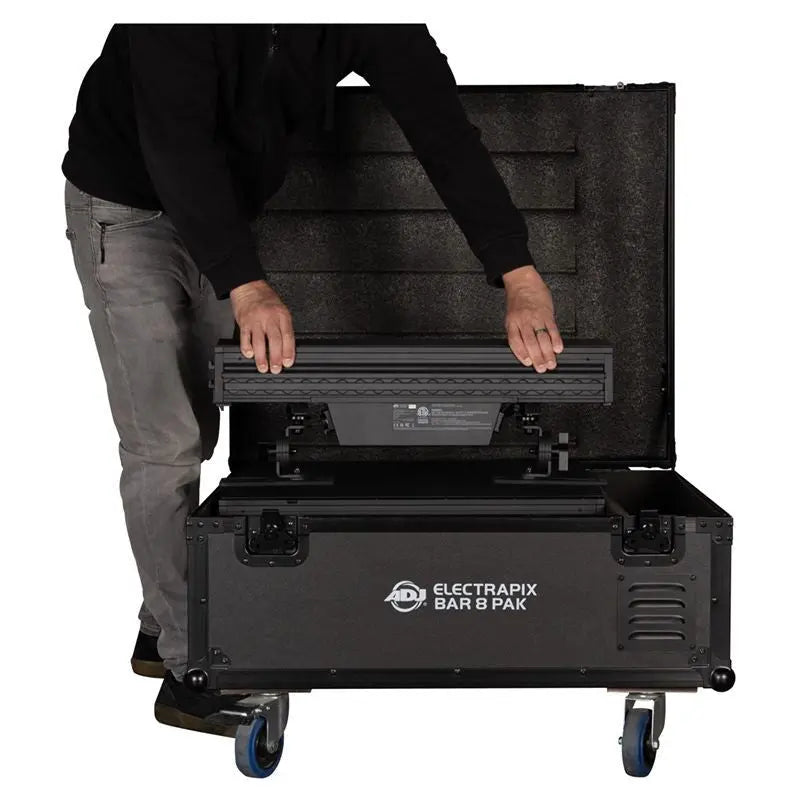

Houses transports & charges (6) ElectraPix Bar 8 fixtures
ElectraPix Bar 8 Pak Dimensions / Weight (loaded case with 6 fixtures):
Length: 807.5mm Width: 696.4mm Height: 441.9mm Loaded weight: 79kg
Flight Case Electrical / Thermal:

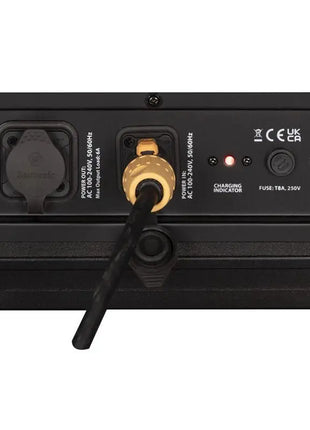

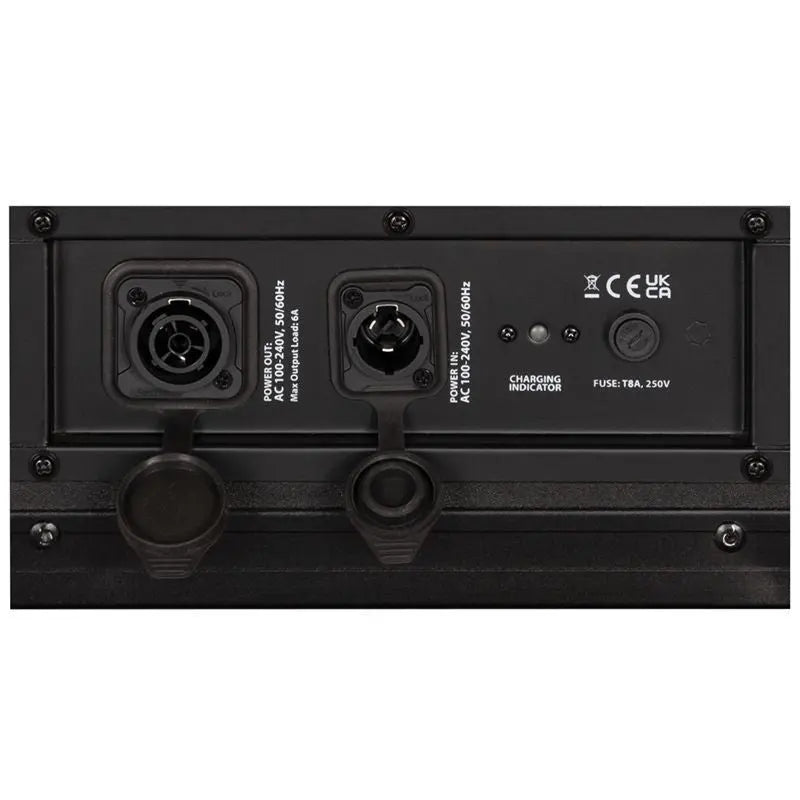

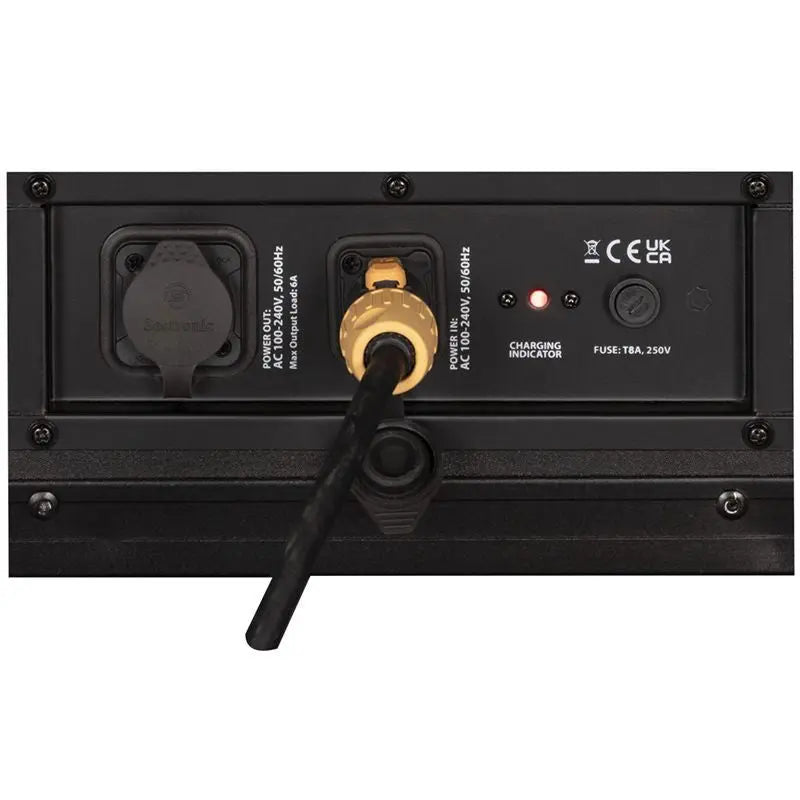

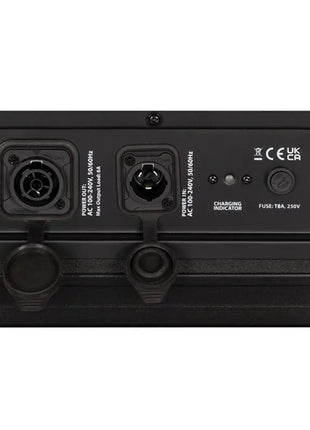

Power input: AC100-240V 50/60Hz IP65 power locking input & output Max power consumption: 400W Power draw: 2A @ 230VAC Charge status indicator Operating temp: -10°C to 45°C
ElectraPix Bar 8 Fixture Specifications
Features:
8-pixel hex-colour (RGBAL+UV) LED bar Battery or wall powered Up to 20h battery operation Battery operation menu option Individual pixel control Built-in foreground & background LED programs Variable white colour temperature (2300K–9900K) English & Spanish menu Built-in alarm Colour-calibrated LEDs User-selectable refresh rates (900Hz–25kHz) 6 dim modes & 4 dim curves Electronic strobe (0.3–11Hz) Electronic dimming Attach up to 4 fixtures to Accu Stand VFB1 floor base
Source:
(8) 20W RGBAL+UV foreground LEDs (32) 0.2W RGB background LEDs Average life: 50000h*
*Varies with conditions voltage usage patterns and dimming.Optical:
White colour temp range: 2300K–9900K Beam angle: 17° Lens diameter: 45mm x8
Physical:
IP65 housing OLED digital display L-track accessory/rigging system Glare shield & diffusion filter slot Angle-adjustable feet Horizontal slide lock for linking fixtures
Control:
DMX512 Aria X2 wireless DMX Bluetooth RDM & RDM Net compatible IR remote (UC-IR24 included) 9 DMX modes: 5/6/9/13/22/24/48/52/66-channel Manual control & primary/secondary mode
Connections:
5-pin XLR DMX in/out (IP65 seal when used with STRxxx cables) IP65 locking power sockets Battery charging socket
Dimensions & Weight:
94.5 x 586.7 x 268.7mm Weight: 7.3kg
Power:
AC100-240V 50/60Hz input 60W power consumption Link up to 28 fixtures @ 230VAC
Battery:
Rechargeable lithium-ion 7000mAh Voltage: 22.2V Charge time: 5h (AC or flight case) Up to 20h operation Battery cycles: 500
Thermal:
Ambient operating temp: -20°C to 45°C Storage temp: -30°C to 45°C
Certifications & IP Rating:
IP65
Included Accessories:
(1) IP65 locking power cable (1) UC-IR24 remote (1) 20° diffusion filter
Optional Accessories:
Accu-Stand VFB floor base LTrack A2 adapter LTrack CA2 adapter with narrow clamp
Specifications and documentation subject to change without notice
