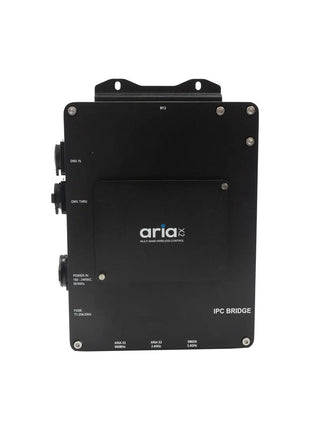

The single universe outdoor Aria X2 Bridge IPC the future of wireless lighting management is here to transform your experience with unparalleled control efficiency and ease. This comprehensive system harnesses cutting-edge technology to offer you a solution that adapts to your needs and provides a harmonious lighting experience whether on show site or in the shop. In addition to transmitting the Aria X2 serial protocol Aria X2 Bridge IPC is also compatible with ADJ WiFLY Elation eFly Magmatic MagFly and Acclaim Aria.
!!!Preliminary info!!!
Features:
Single DMX Universe 900Mhz. 2.4 GHz WiFi and Bluetooth Configuration via App (Coming Soon) or Front panel Wireless to DMX or DMX to Wireless Aria X2 to SM220 (eFly WiFly MagFly and Acclaim Aria) SM220 (eFly WiFly MagFly and Acclaim Aria) to Aria X2
Supported Protocols:
DMX RDM (Planned for future software release) Proprietary 802.15.4Aria X2 Mesh ProtocolBluetooth 5.2 (BLE) Aria X2 Serial ProtocolThis is our proprietary serial protocol for communicating with a variety of fixtures.
RF Characteristics:
Frequency range
2404-2480 MHz 863-870 MHz (EU) 902-928 MHzRadio module: Aria X2 Interference mitigationCSMA Adaptive frequency hopping (on the roadmap) OTA updates
Connectors:

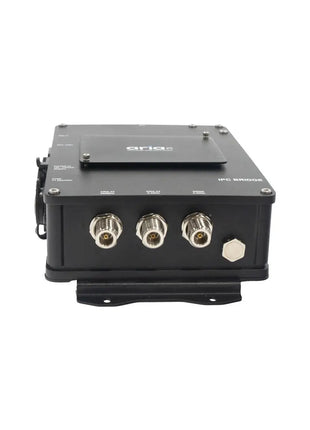

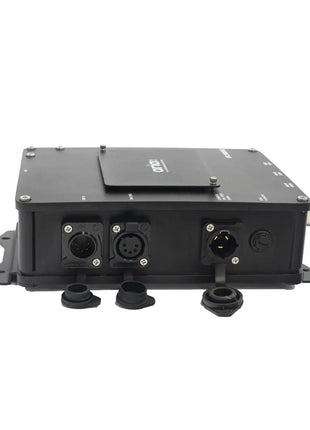

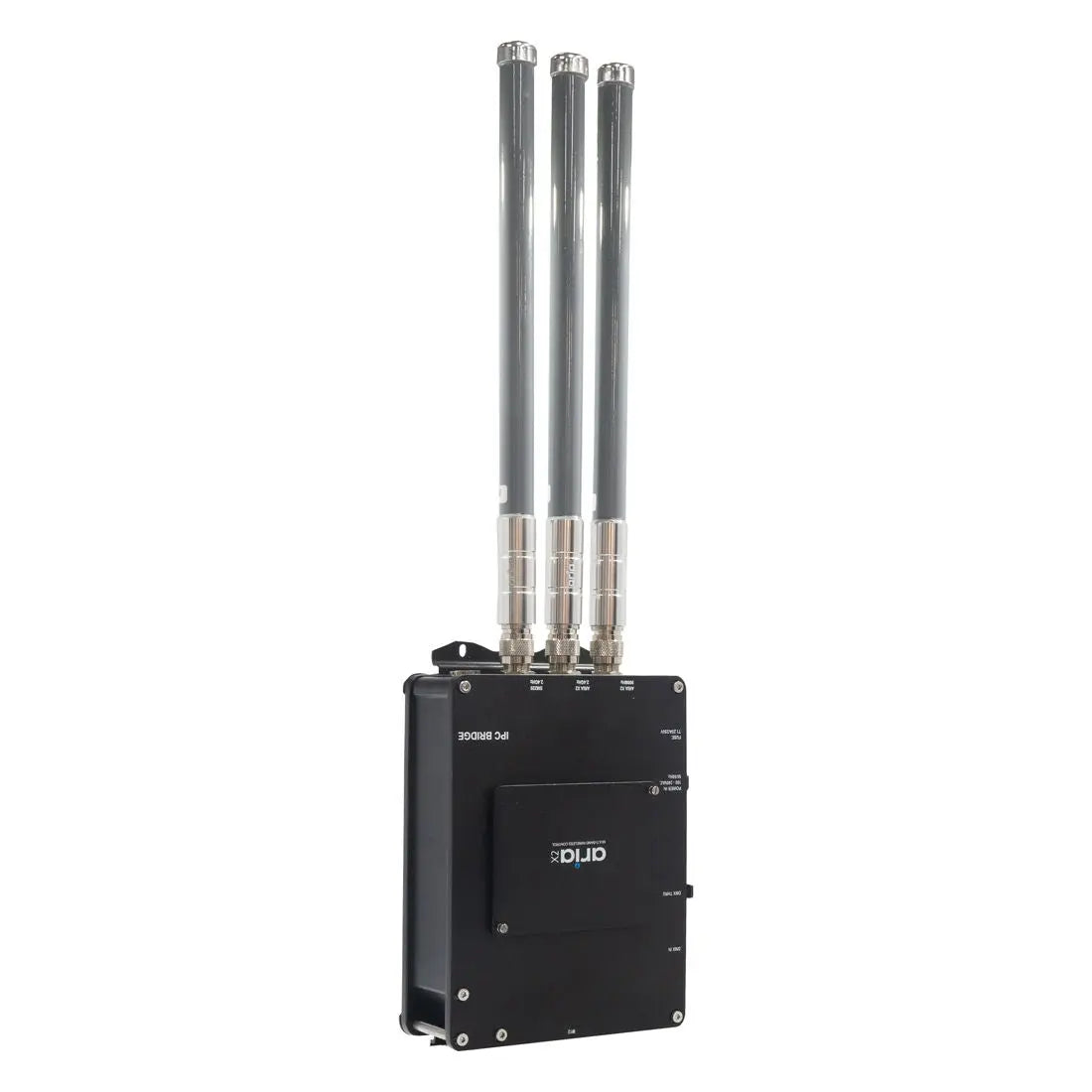

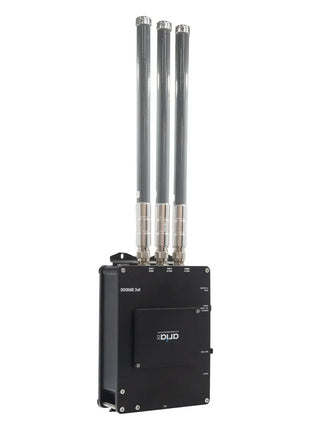

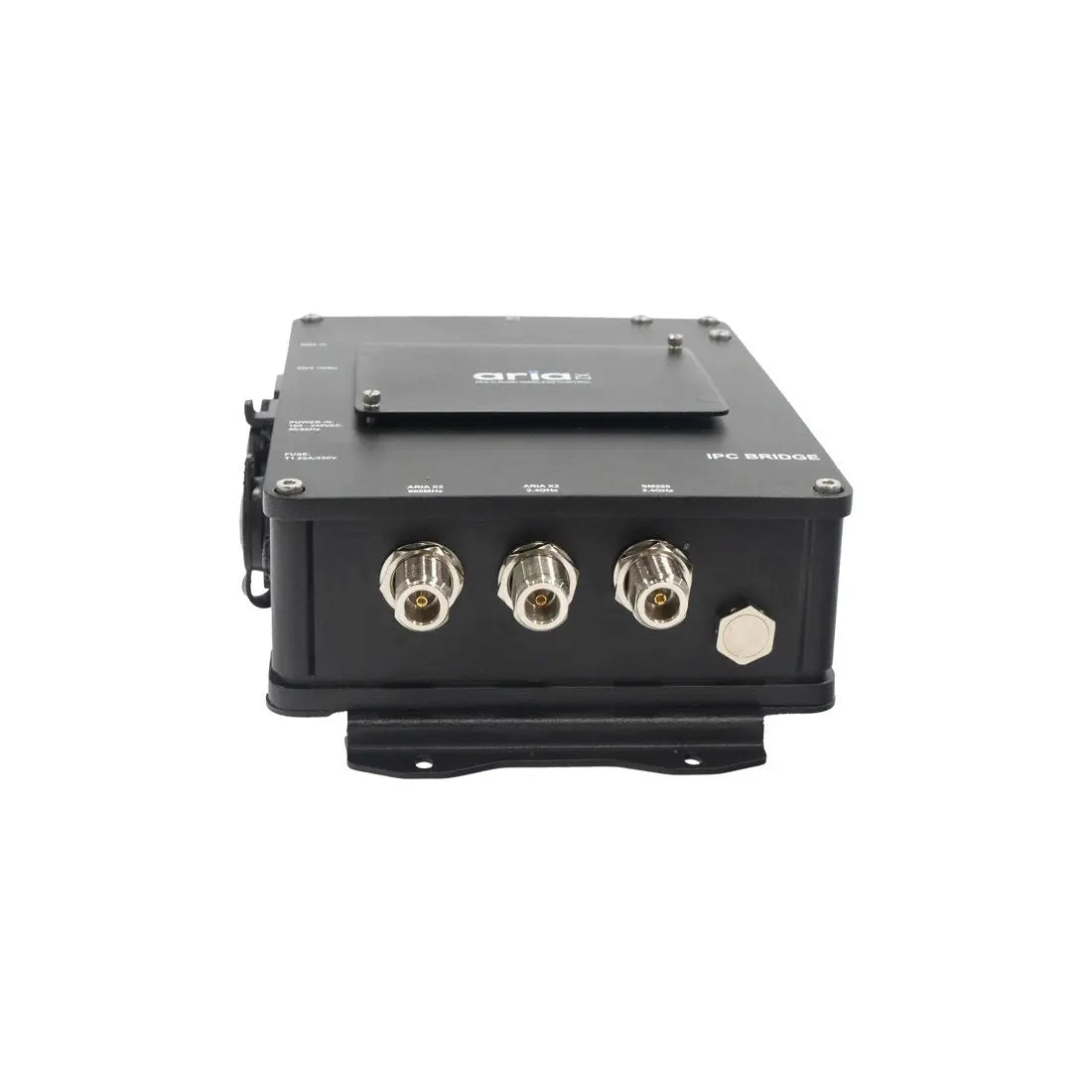

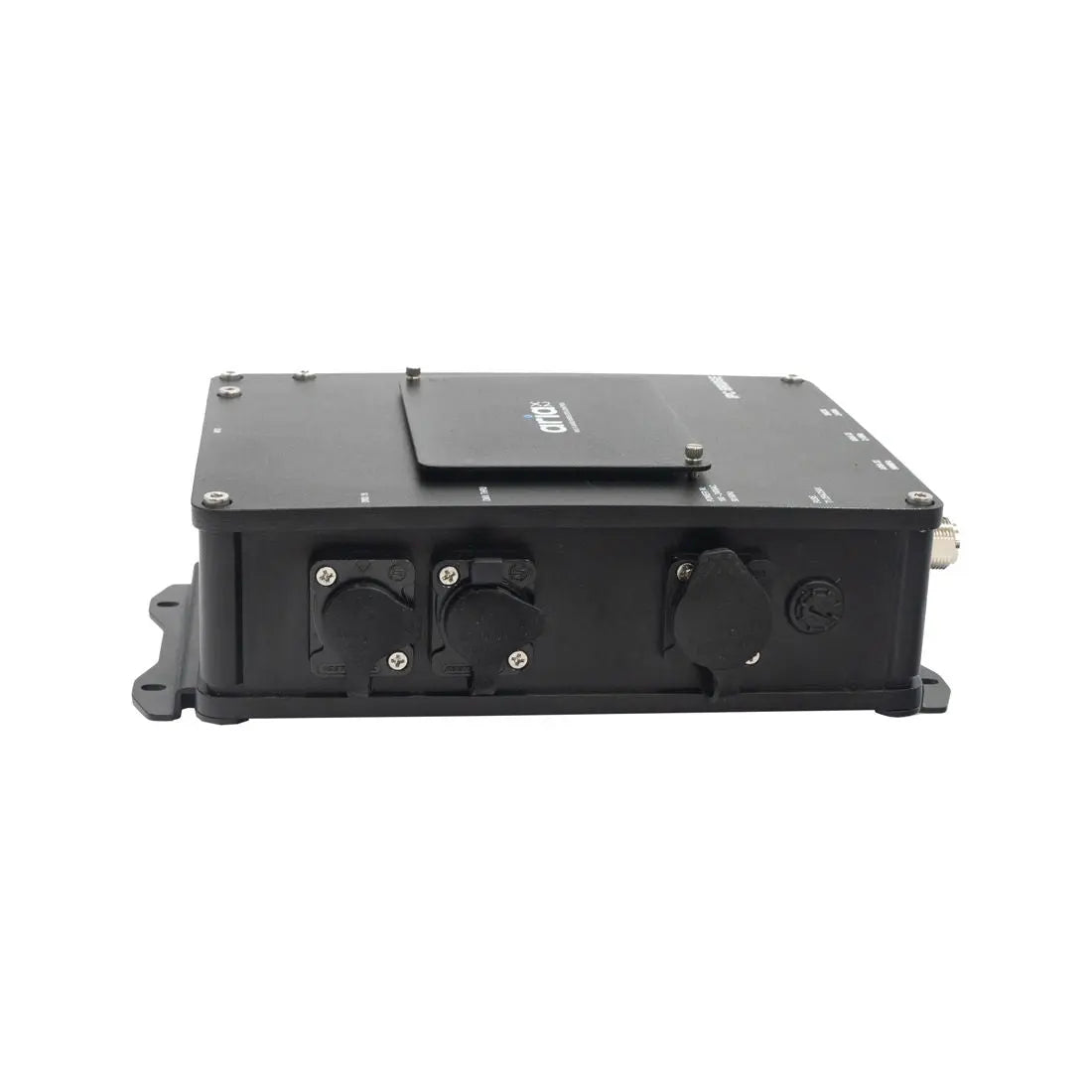

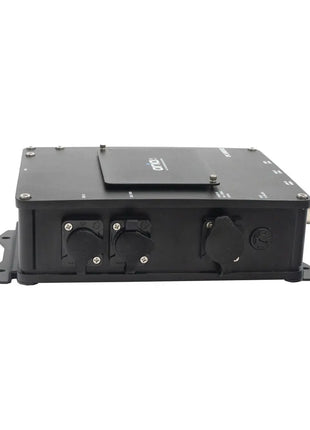

Antenna: 5G JT SMA DMX: 5-pin XLR Input and Output DC: 2.5mm/5.5mm Barrel connector Outdoor Locking Power Input and Output
Power:
AC100-240V 50/60Hz Power Consumption: 2W Power Fuse: T1.25A/250V. (5 x 20mm)
Physical:

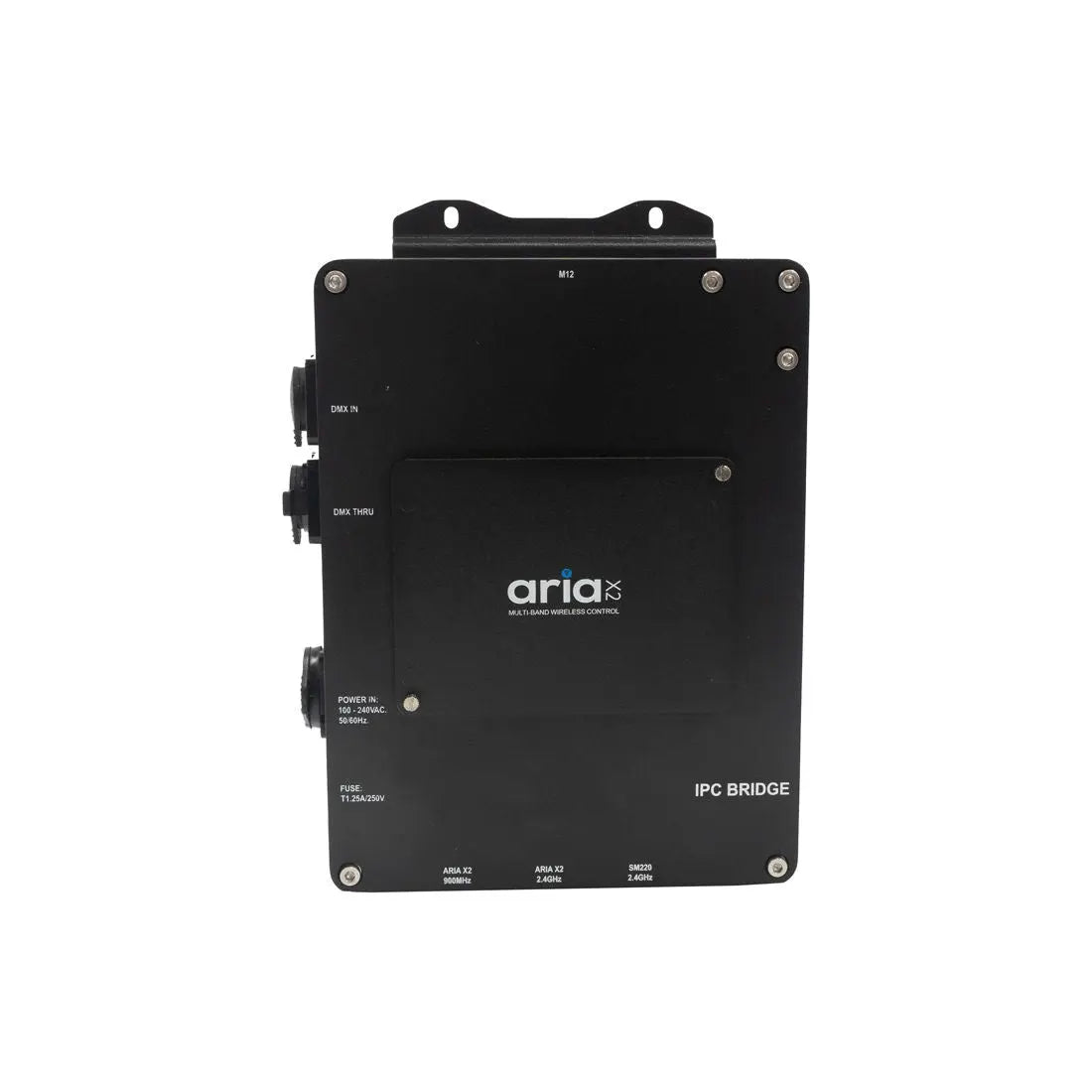

IP65 Metal enclosure Front panel digital screen and rotary knob M10 and M12 Threads Safety Eyelet Max ambient operating temp: 45°C Max operating humidity: <75% Storage temperature: 25°C Rack and wall mount accessories
Dimensions and Weight:
Length: 163.95mm Width: 215.30mm Height: 42mm Weight: 1.23 kg
Specifications subject to change without notice.
