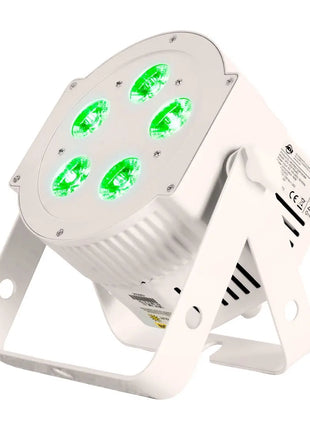

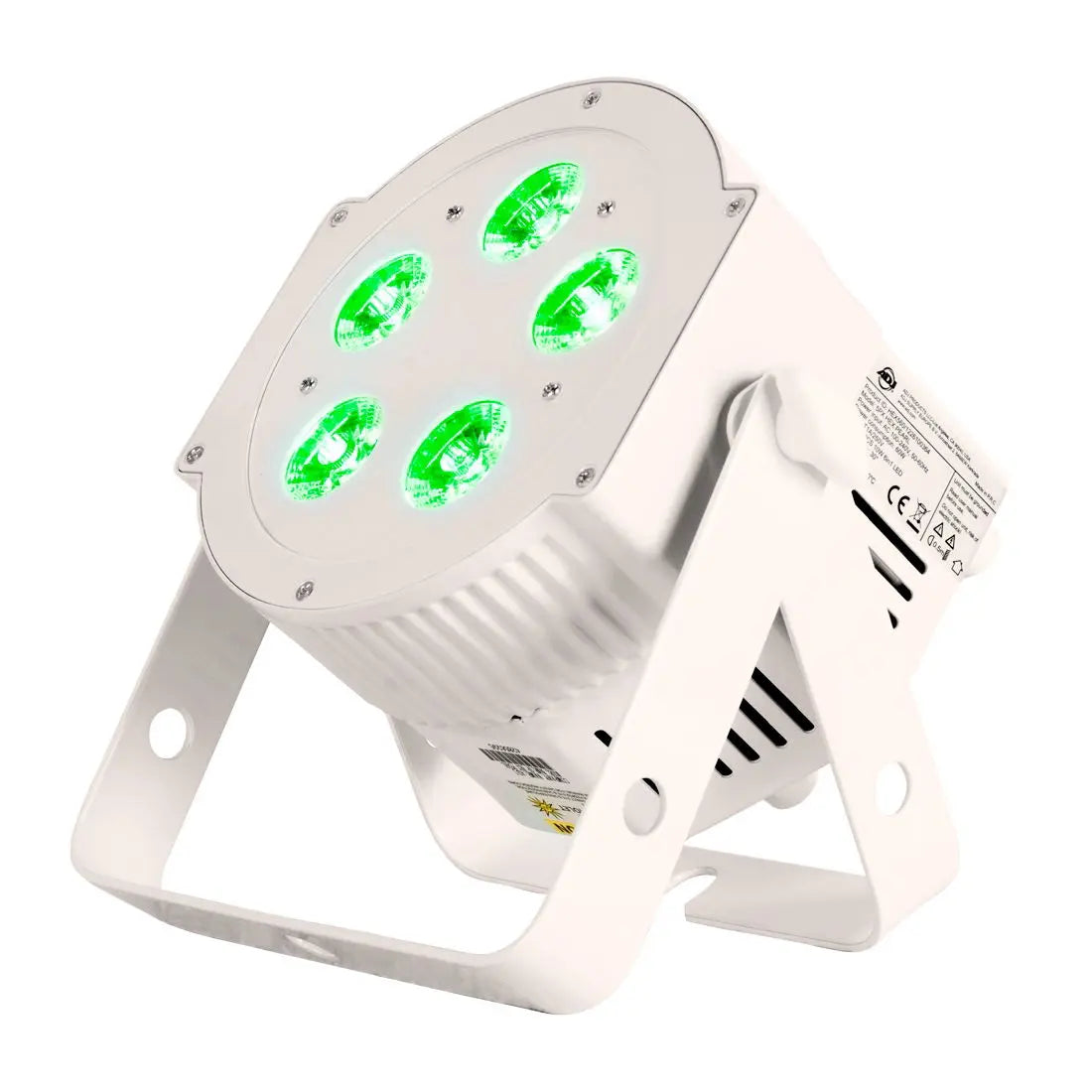

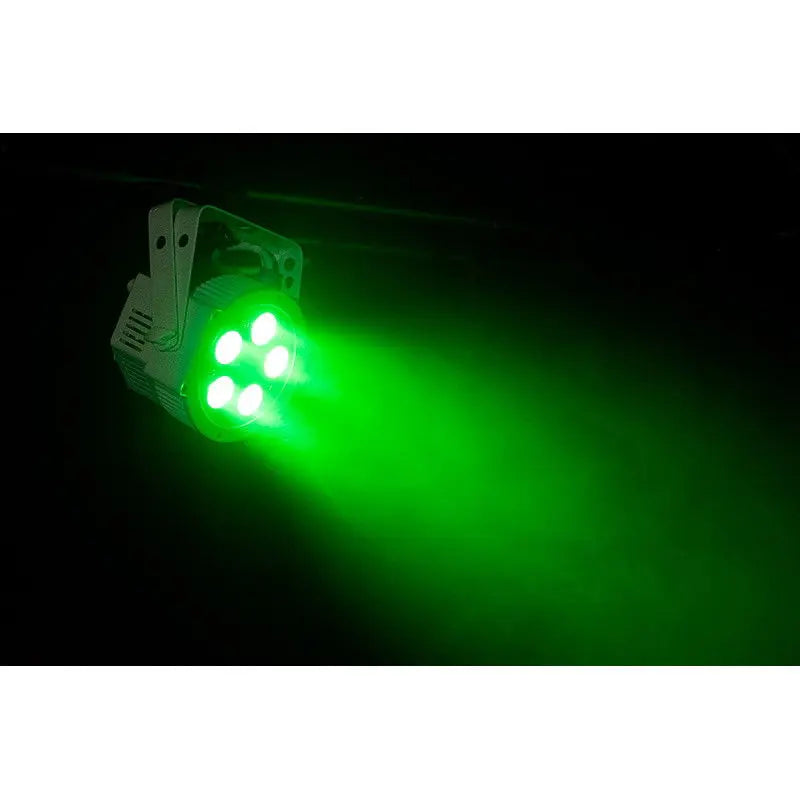

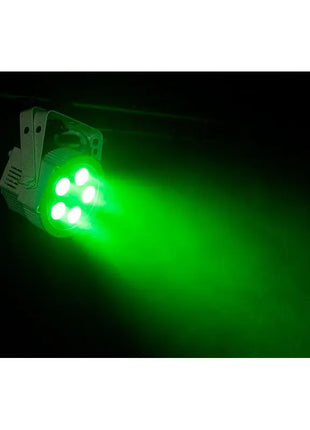

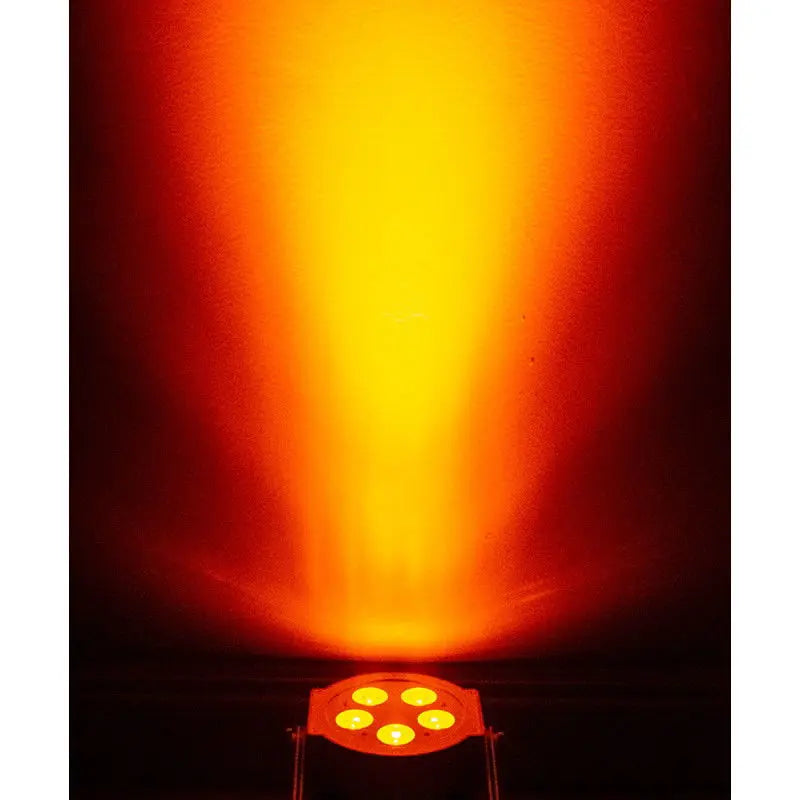

The ADJ 5PX Hex Pearl is a versatile LED Par fixture with 5 x 12-Watt 6-IN-1 HEX LEDs in a white metal housing. With a 25-degree beam angle users may produce wide washes with smooth colour mixing from 63 built-in colour macros utilizing red green blue amber white and UV LEDs. Not only is this LED Par great for lighting stages but with its patent pending intelligently designed Locking Power and 3 & 5pin DMX connectors it’s great for uplighting a venue.
5PX HEX Pearl professional features include: 4 DMX modes (6 7 8 & 12 channel) 5 operational modes 5 dimming curves flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 11 units together via the fixtures built-in Locking Power In/Out connectors.
The 5PX HEX Pearl is compatible with the Dotz Par RF easy-to-use wireless RF remote (sold separately). Alternatively the fixture may be operated via a DMX controller or the units built-in programs.
Specifications:
Source:
5 RGBAW + UV LEDs (red green blue amber white and UV LED) Individual LED power: 12W Average LED life: 50000 hours
Optics:

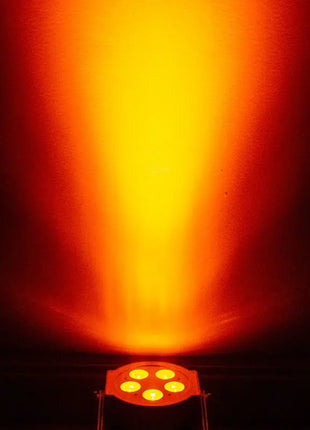

Beam angle: 25° Including filter frame for optional diffusion filters
Control:

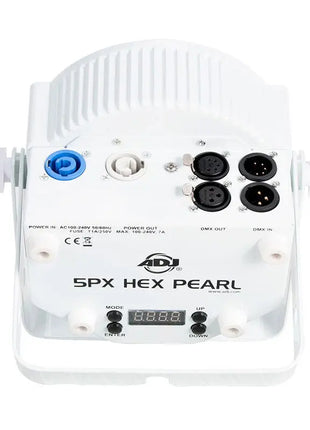

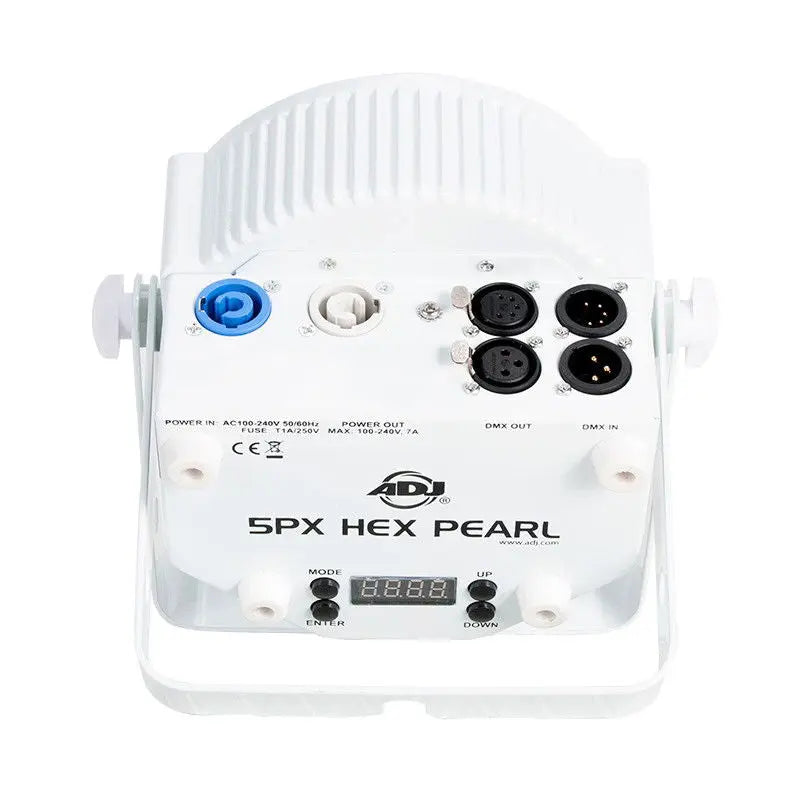

4-button digital display on the back 5 operating modes: static colour mode RGBAW and UV dimmer mode integrated program sequences sound active mode and DMX control 4 DMX channel modes: 6 7 8 and 12 channels Electronic dimming: 0 - 100% 63 built-in colour macros 7 built-in programs Sound Active mode 5 selectable dimmer curves (standard stage TV architecture & theatre) Operation also possible with the optional Dotz PAR RF remote control (item no.1223200035) LED pulse and strobe effect
Colours:
RGBAW + UV colour mixing
Construction:
Metal housing Fan cooled Double bracket
Electric:
Automatic switching power supply: 100-240V 50 / 60Hz Power consumption: 60 watts
Connections:

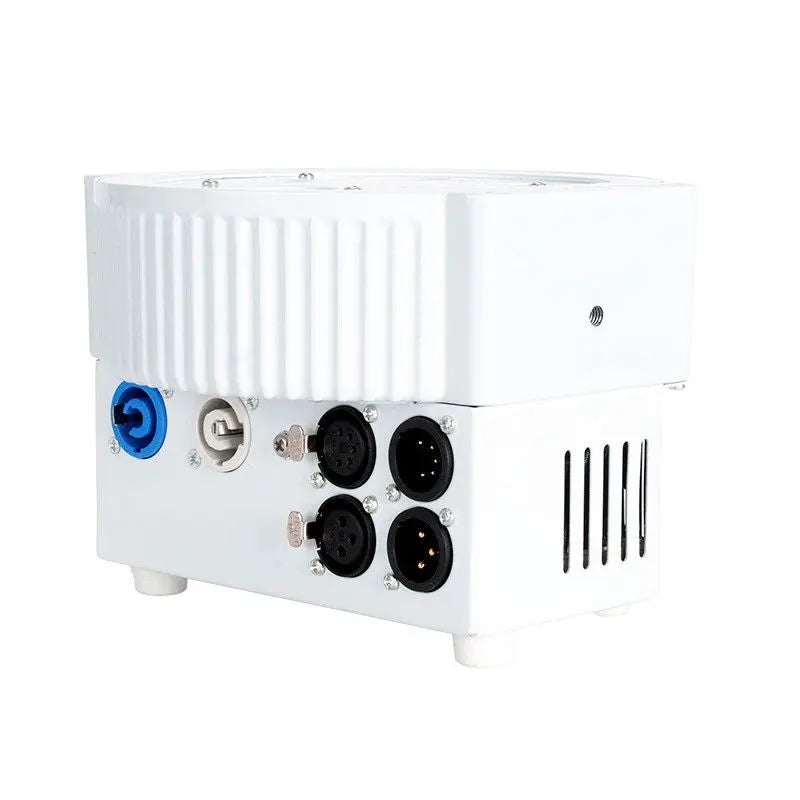

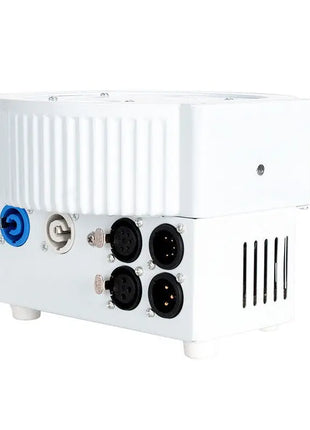

3- and 5-pole Locking DMX inputs and outputs Locking power inputs and outputs
Dimensions & Weight:
Dimensions (LxWxH): 114 x 208 x 222 mm Weight: 2.6 kg
