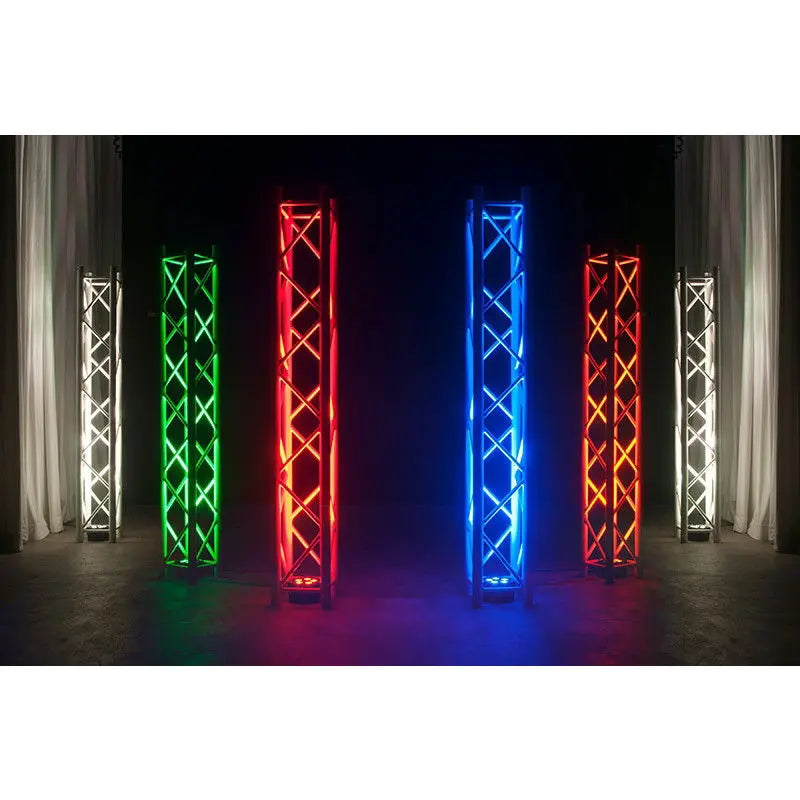

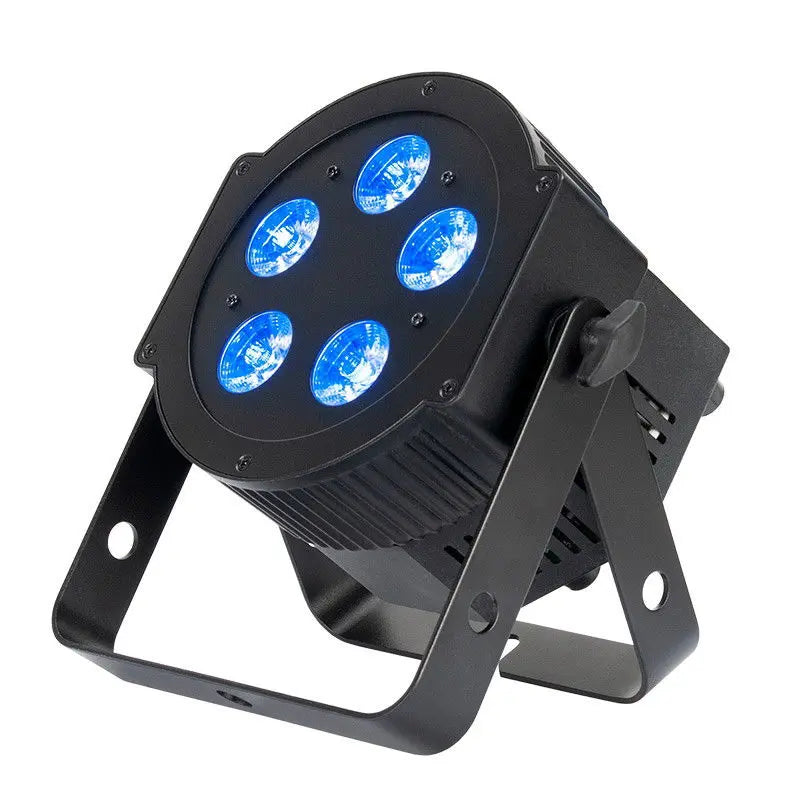

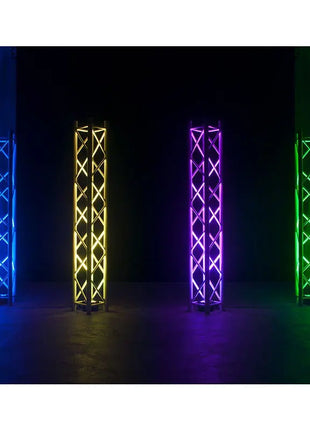

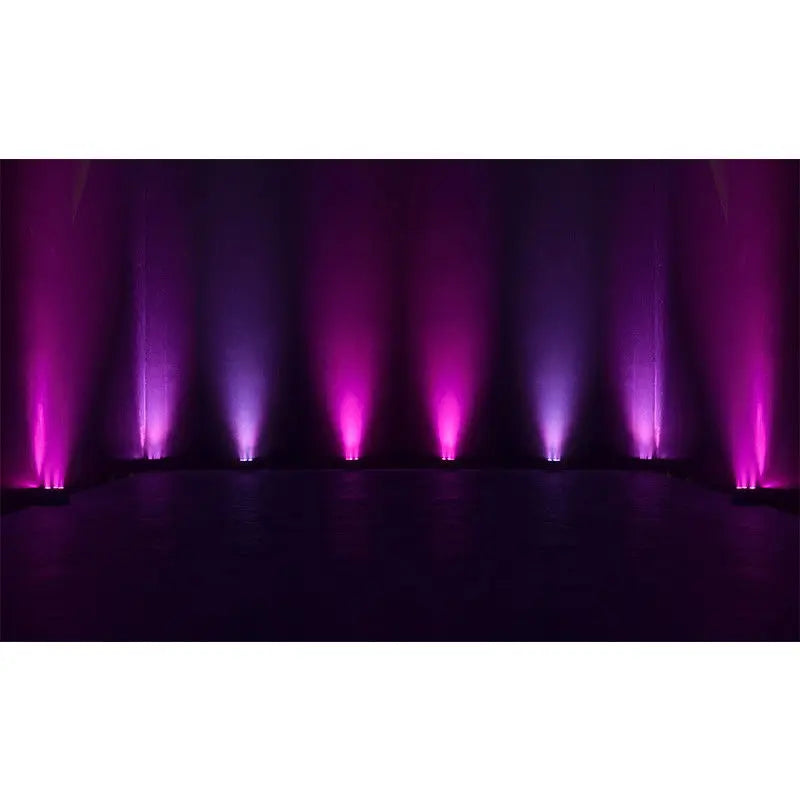

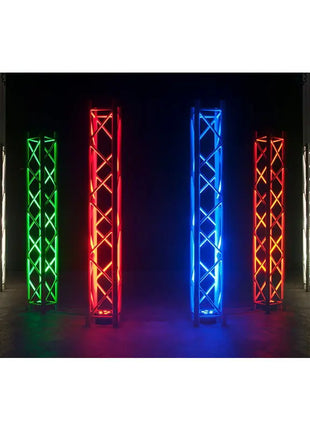

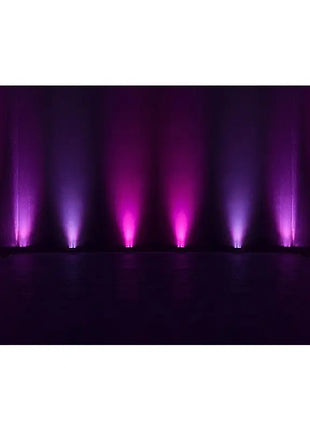

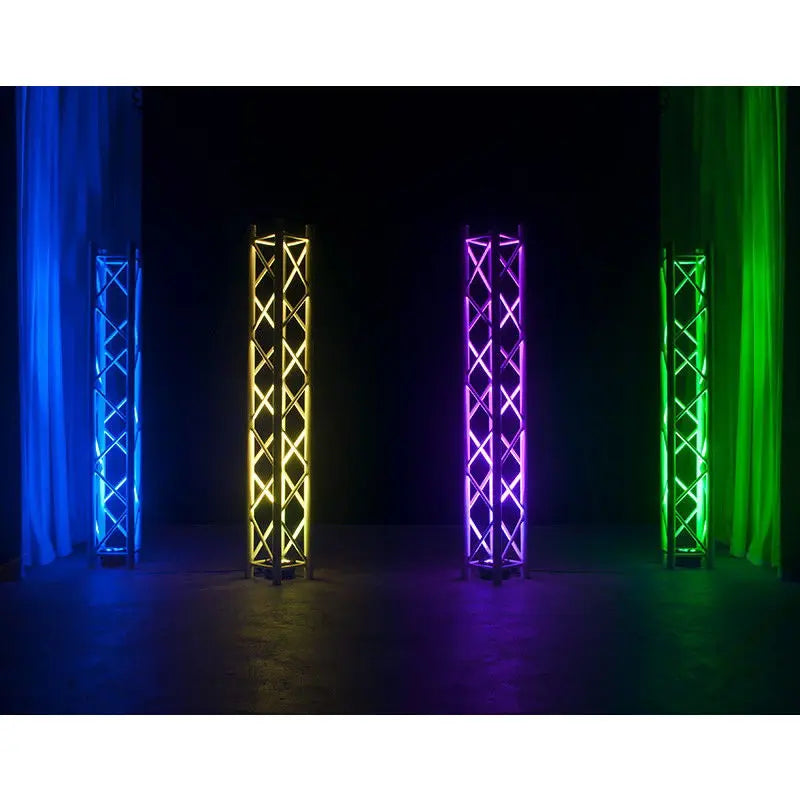

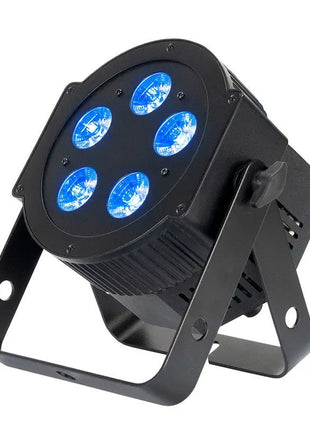

The ADJ 5PX Hex is a versatile LED Par fixture with 5 x 12-Watt 6-IN-1 HEX LEDs. With a 25-degree beam angle users may produce wide washes with smooth colour mixing from 63 built-in colour macros utilizing red green blue amber white and UV LEDs. Not only is this LED Par great for lighting stages but with its patent pending intelligently designed Locking Powerand 3 & 5pin DMX connectors it’s great for uplighting a venue.
5PX HEX professional features include: 4 DMX modes (6 7 8 & 12 channel) 5 operational modes 5 dimming curves flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 11 units together via the fixtures built-in Locking Power In/Out connectors.
The 5PX HEX is compatible with the Dotz Par RF easy-to-use wireless RF remote (sold separately). Alternatively the fixture may be operated via a DMX controller or the units built-in programs.
Specifications:
Source:
5 RGBAW + UV LEDs (red green blue amber white and UV LED) Individual LED power: 12W Average LED life: 50000 hours
Optics:
Beam angle: 25° Including filter frame for optional diffusion filters
Control:

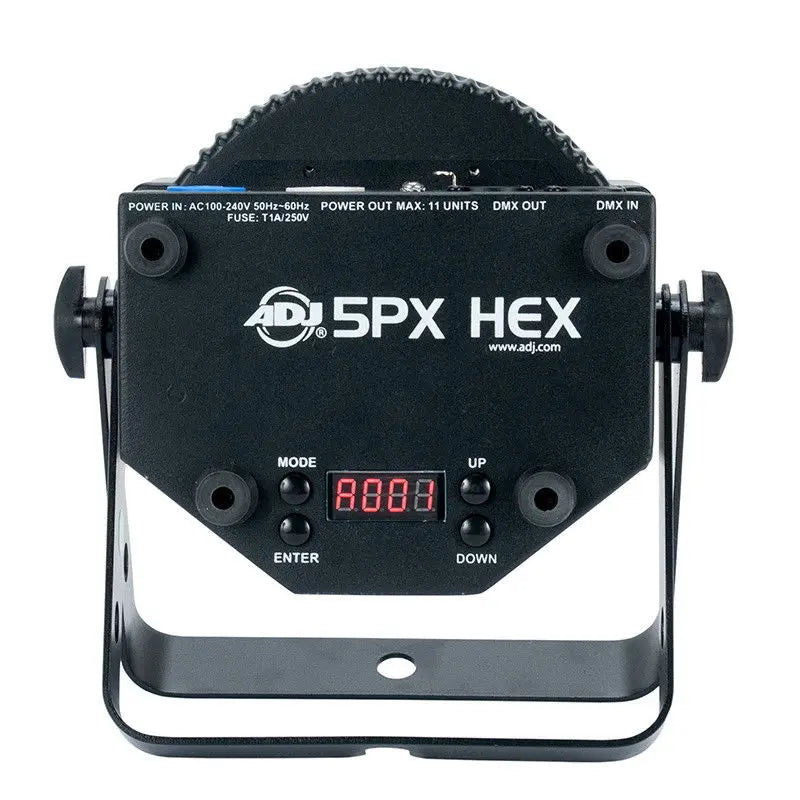

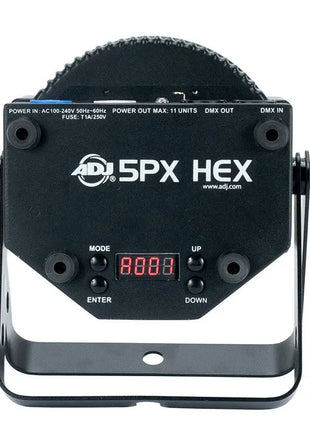

4-button digital display on the back 5 operating modes: static colour mode RGBAW and UV dimmer mode integrated program sequences sound active mode and DMX control 4 DMX channel modes: 6 7 8 and 12 channels Electronic dimming: 0 - 100% 63 built-in colour macros 7 built-in programs Sound Active mode 5 selectable dimmer curves (standard stage TV architecture & theatre) Operation also possible with the optional Dotz PAR RF remote control (item no.1223200035) LED pulse and strobe effect
Colours:
RGBAW + UV colour mixing
Construction:
Metal housing Fan cooled Double bracket
Electric:
Automatic switching power supply: 100-240V 50 / 60Hz Power consumption: 60 watts
Connections:

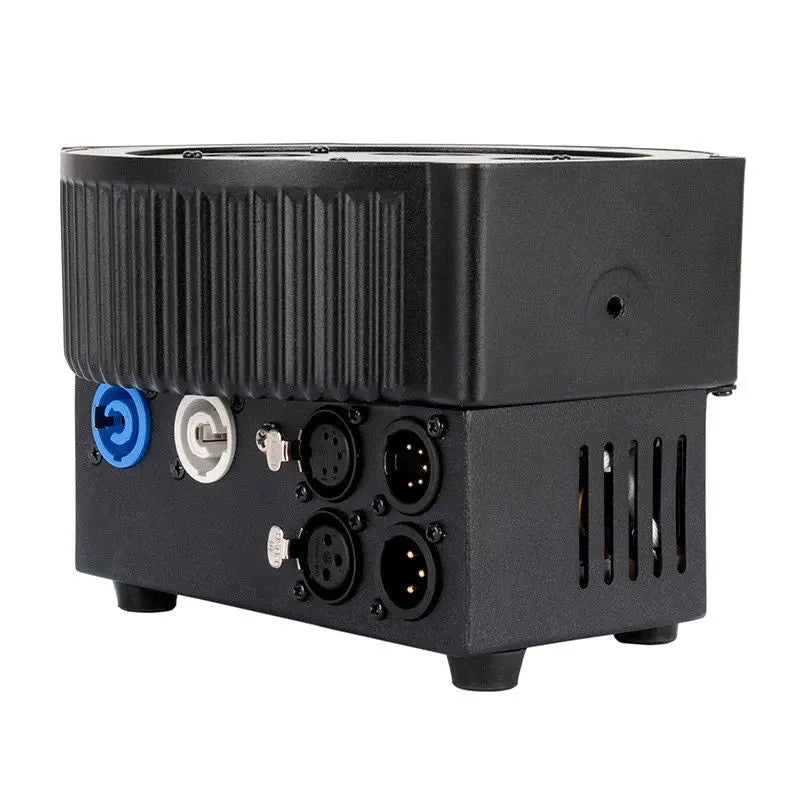

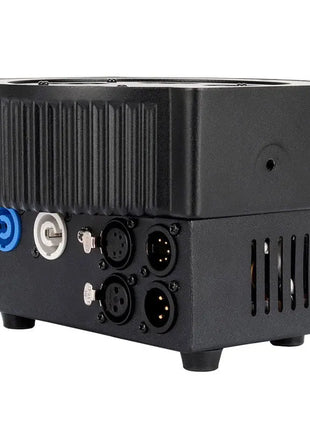

3- and 5-pole Locking DMX inputs and outputs Locking power inputs and outputs
Dimensions & Weight:
Dimensions (LxWxH): 114 x 208 x 222 mm Weight: 2.6 kg
