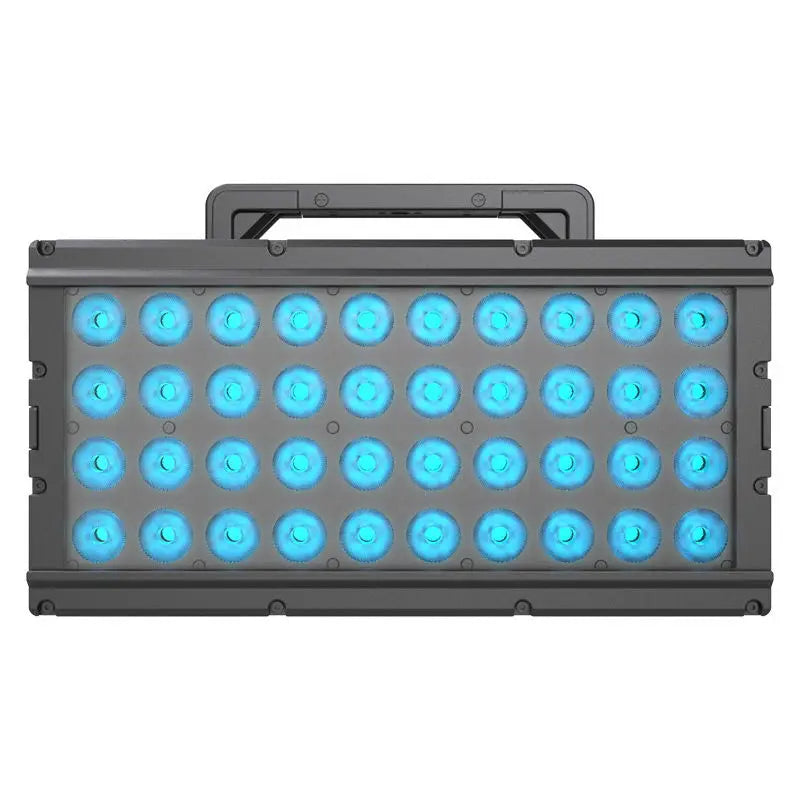

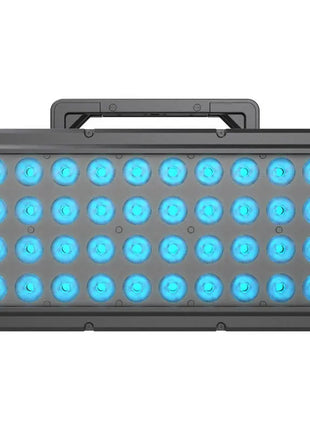

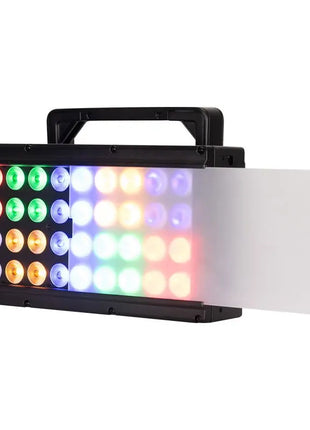

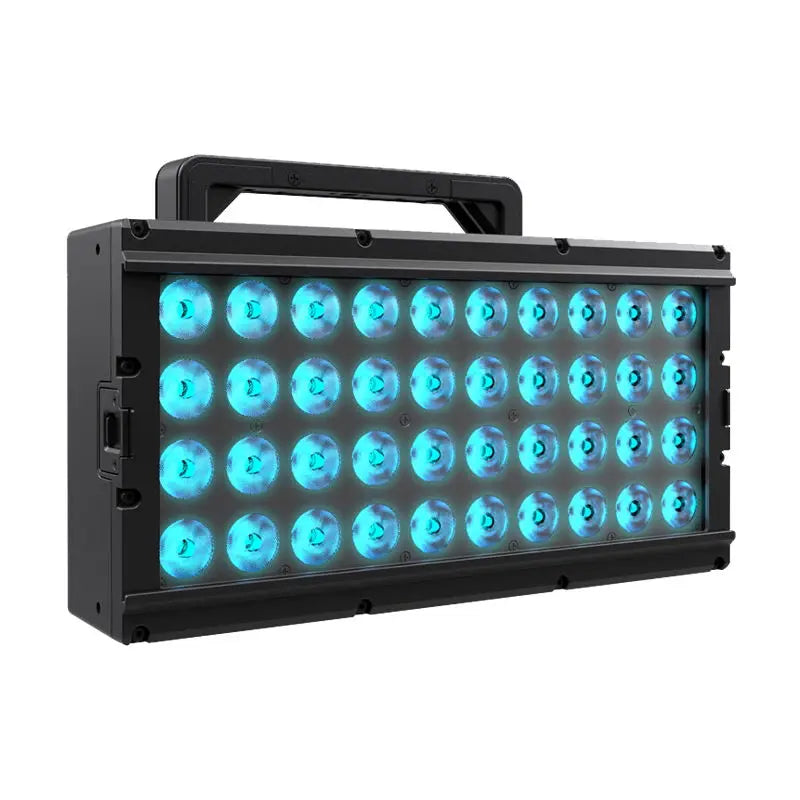

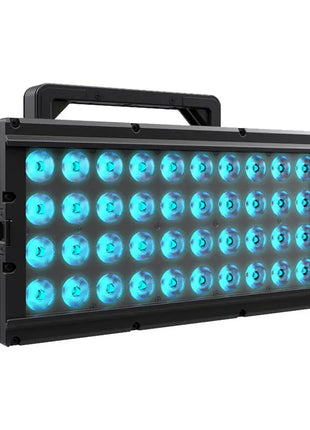

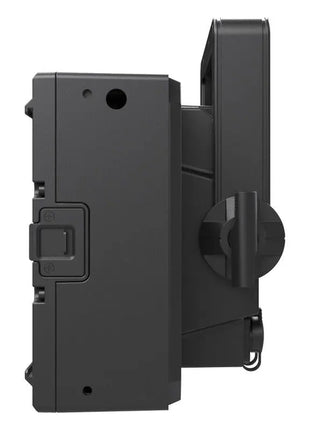

The ADJ 40 HEX Panel IP is a versatile IP65-rated fixture designed for both indoor and outdoor applications as a wash light blinder or colour strobe. It is equipped with 40x 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal black housing is IP65-rated offering protection against dust sand moisture and liquids. A magnetic removable filter frame allows for the addition of a diffusion filter to adjust the beam angle._x005F_x005F

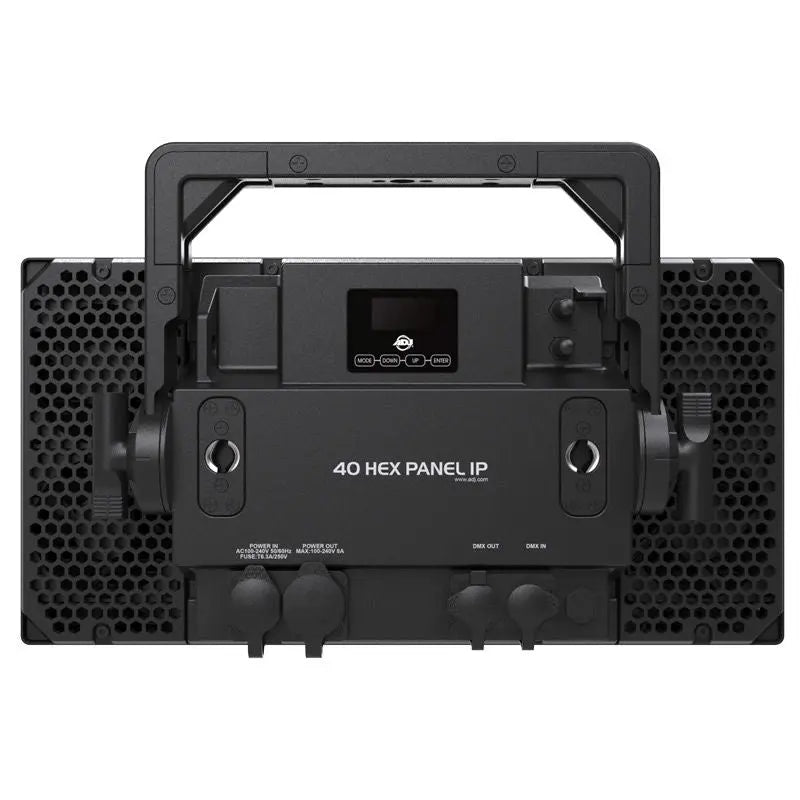

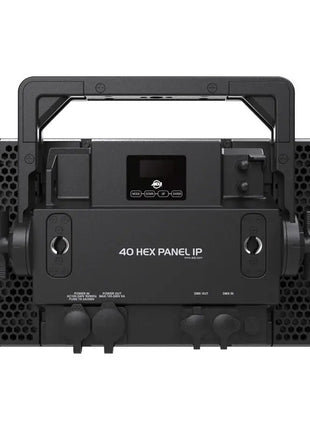

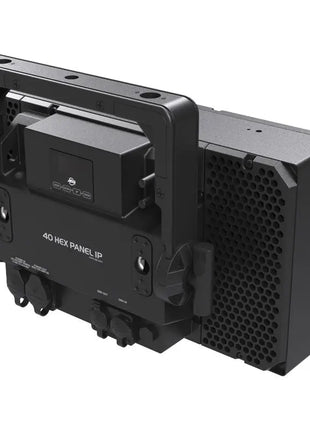

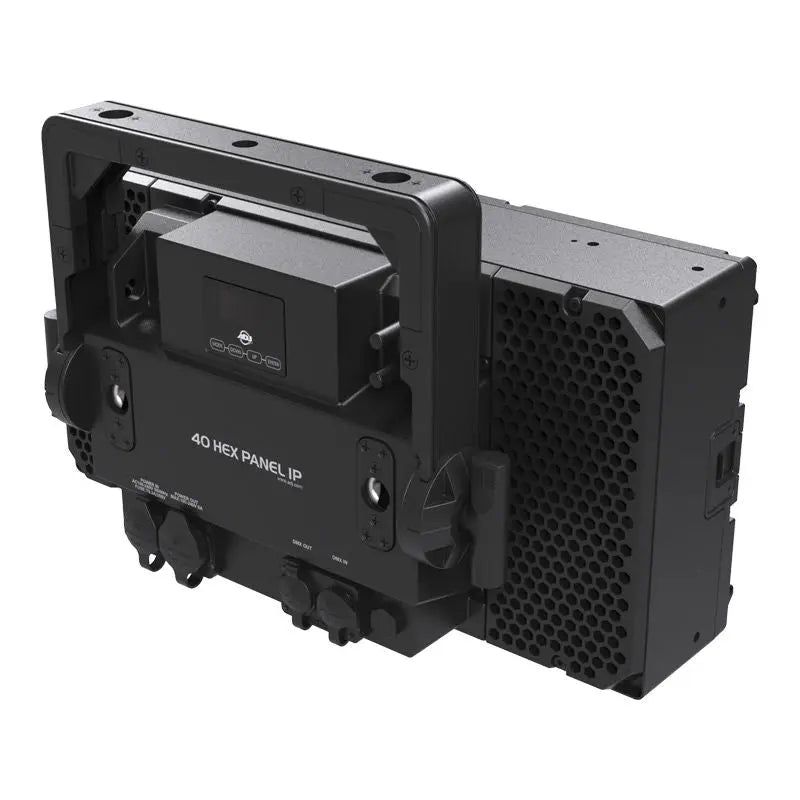

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons ensures easy access to the fixture's functions.
_x005F_x005F
Perfect for film and broadcast the 40 HEX Panel IP is flicker-free and offers various DMX control modes dimming options and LED refresh rate settings. Aria X2 wireless management system is built-in to the fixture for over the air firmware/software updates.
_x005F
Light Source:
LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50000 hr.) Beam Angle: X = 28.61° Y = 23.72° Field Angle: X = 50.82° Y = 44.95° Lumens: 19590
Features:
IP65 rated - protects from dust sand moisture water Aria X2 Management System All-metal construction with black housing Includes heavy-duty bracket Flicker free for film and broadcast Linear variable white temperature control
Construction:
Display: OLED display with function buttons All-metal heavy-duty housing built to last in outdoor or touring applications
Control:
24 DMX Control Modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G / 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G & 132Ch 10G modes 4 Control Groups: 1 / 2 / 5 & 10 Groups 0-100% Dimming + smooth 16-bit Dimming 5 Dimming Curve Modes Control Mode: DMX512 RDM (Remote Device Management) LED Refresh Rate: Multiple settings With Wired Digital Communication Network
Connections:
Data: IP65 Locking 5-pin DMX In/Out Power: IP65 Locking Power In/Out
Electrical:
100-240V 50Hz/60Hz (Auto Sensing) Max Power Consumption: 492W @220V Max Power Link: 4pcs @230V Fuse Protected: T4A/250V Glass Fuse (5x20MM)
Dimensions / Weight:
Dimensions (LxWxH): 417x296.8x212mm Weight: 11.15 kg
What's Included:
1 x IP65 Locking Power Cable 1 x Frost Filter 1 x Safety Cable
Optional Accessories:
180mm Omega Bracket JPFXBLKF (Black Filter for Jolt Panel FX2 and Jolt Panel FXIP) JPFX1X60LF (1x60° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP) JPFX60X1LF (60x1° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP)
Approvals and Ratings:
IP65
Specifications are subject to change without notice.
