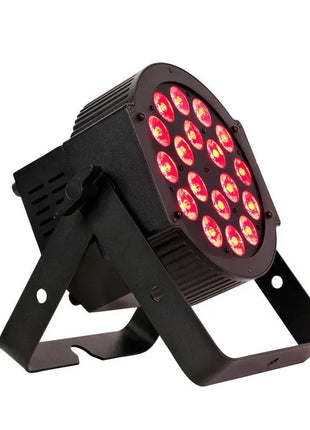

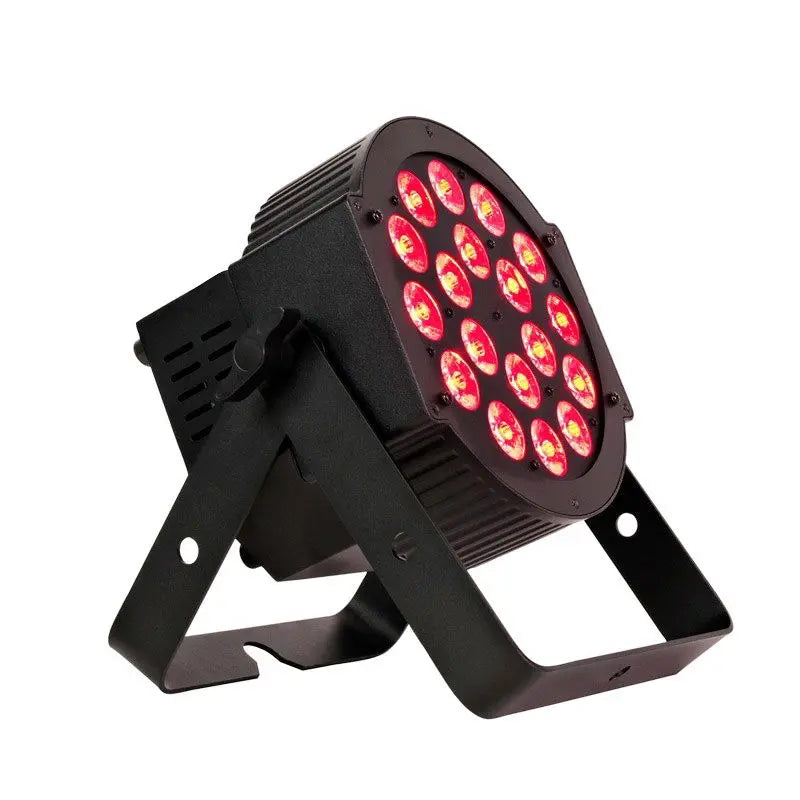

_x005F_x005F_x005F| _x005F The ADJ 18P Hex is an all metal powerful 216W LED Par fixture with 18x 12-Watt 6-IN-1 HEX LEDs. With a 25-degree beam angle users may produce wide washes with smooth colour mixing from 63 built-in colour macros utilizing red green blue amber white and UV LEDs. Not only is this LED Par great for lighting stages but with its patent pending intelligently designed power and DMX connectors it’s great for uplighting large venue. _x005F
_x005F18P HEX professional features include: 4 DMX modes (6 7 8 and 12) 5 operational modes 5 dimming curves flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 10 units (110V) or 12 units (240V) together via the fixtures built-in Locking Power In/Out power connectors. _x005FThe 18P HEX is compatible with the Dotz Par RF easy-to-use wireless RF remote (Sold Separately). Alternatively the fixture may be operated via a DMX controller or the units built-in programs. It comes with a metal gel frame in which a beam diffuser (sold separately) may be used to soften the beam. _x005F | _x005F
_x005F_x005F
Specifications:
Source
• Light Source: 18 RGBWA+UV LEDs (Red Green Blue White Amber & UV LED)
• Individual LED wattage : 12W
• Average LED lifetime :approximately 50000 hrs.
Optics
• Beam Angle: 25 degrees
• Gel frame for diffusion filters included (optional diffusion filters)
Control
• 5 Operational modes: Static Colour Mode RGBWA+UV Dimmer Mode Program Mode Sound Active Mode and
DMX Control
• 4 DMX Modes: 6 7 8 & 12-channel
• Electronic Dimming: 0 - 100%
• 63 built-in Colour Macros
• 7 built-in Programs Sound Active Mode
• 5 selectable Dim Curves (Standard Stage TV Architectural Theatre)
• Optional Dotz PAR RF Remote available (order code 1223200035)
• LED pulse and strobe effect

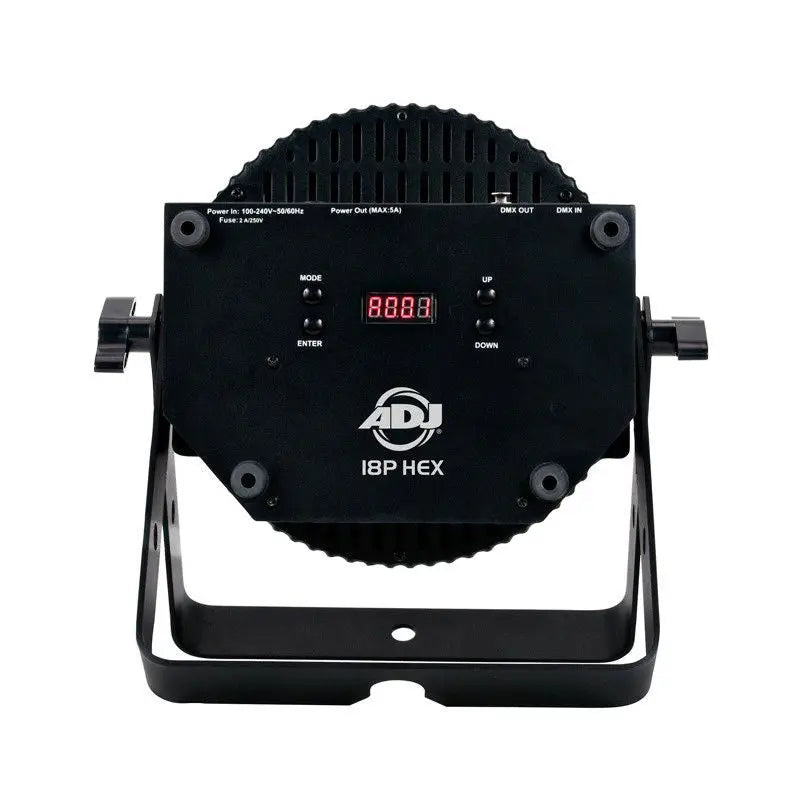

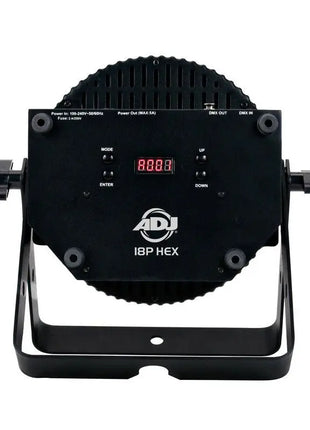

• 4-button DMX digital display on rear panel
Colours
• RGBWA+UV Colour Mixing
Construction
• Metal Housing
• Low Noise fan cooling
• Scissor yoke
Electrical
• Multivoltage 100-240V 50/60Hz
• Power Consumption: 154W
Connections
• Sideways 3-pin Locking DMX connectors
• Sideways Locking Power In/Out connections
Dimensions & Weight
• Dimensions (LxWxH): 304 x 1748 x 3304mm
• Weight: 59 kg.
