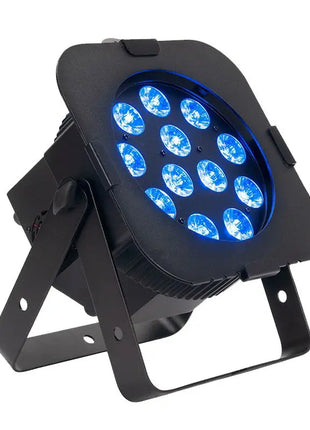

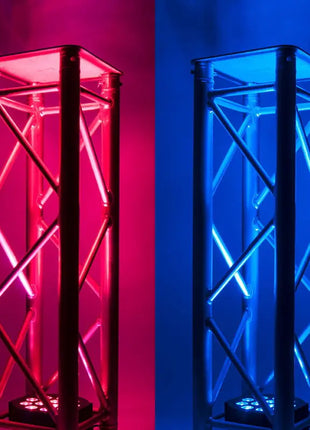

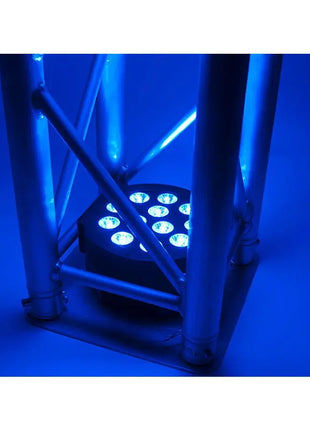

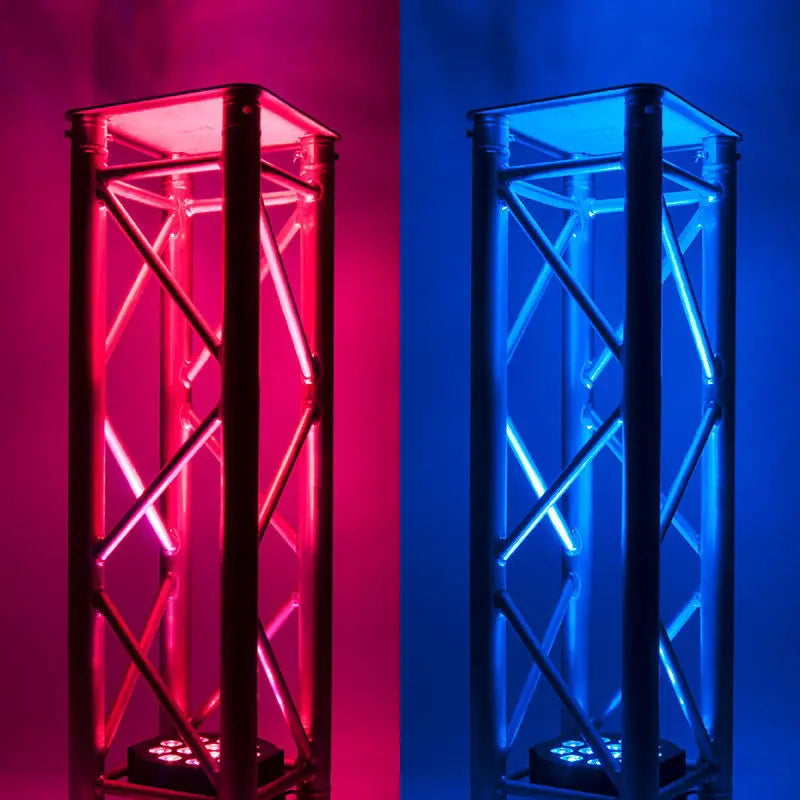

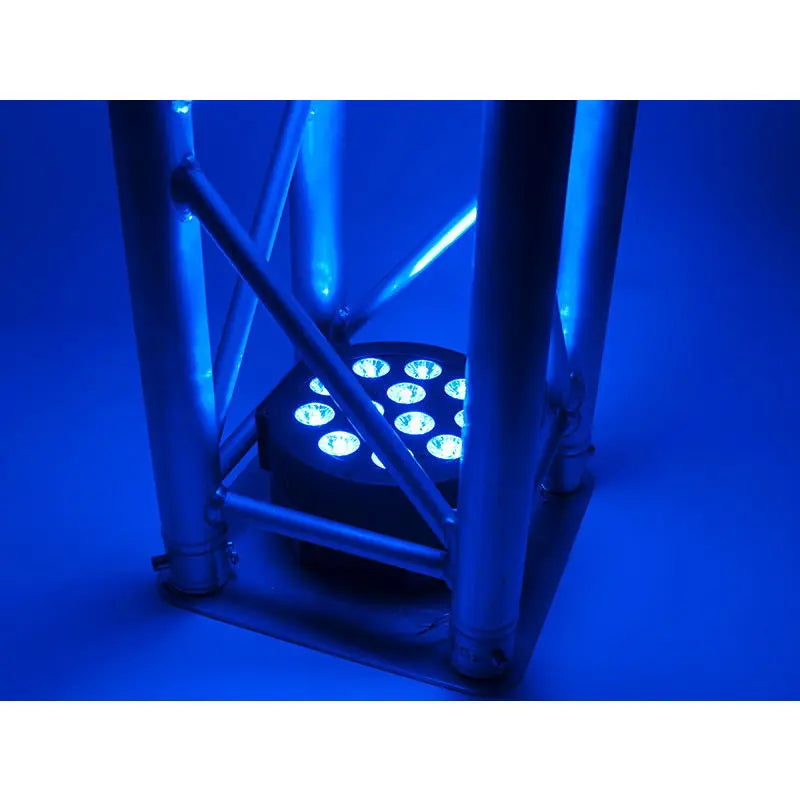

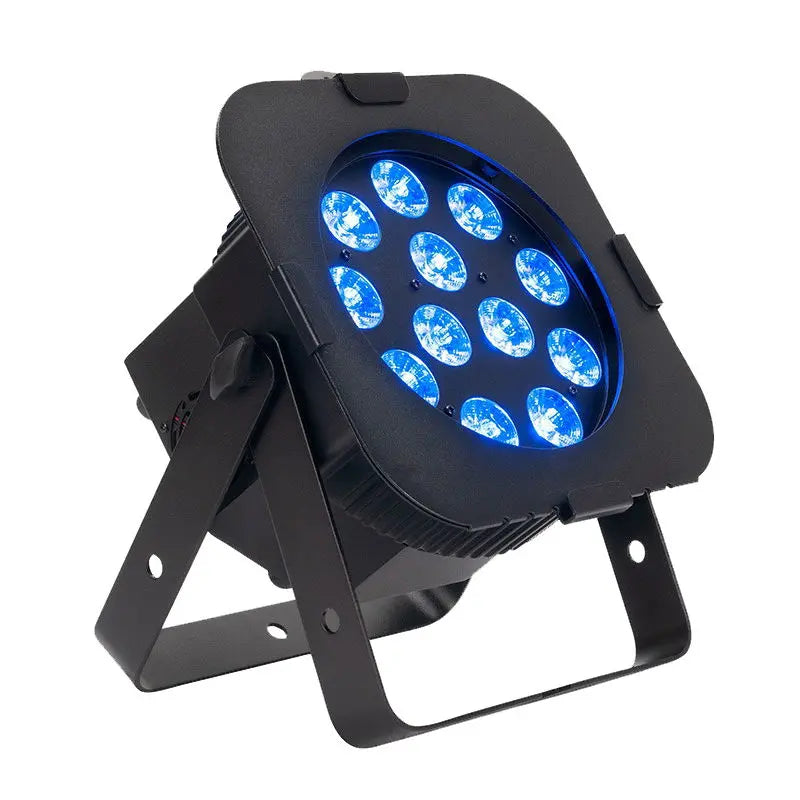

The ADJ 12PX HEX is a versatile LED Par fixture with 12 x 12-Watt 6-IN-1 HEX LEDs made from all metal construction. With a 25-degree beam angle users may produce wide washes with smooth colour mixing from 63 built-in colour macros utilizing red green blue amber white and UV LEDs. Not only is this LED Par great for lighting stages but with its patent pending intelligently designed power and DMX connectors it’s great for uplighting a venue or used as a stage wash.
12PX HEX professional features include: 4 DMX modes (6 7 8 & 12 channel) 5 operational modes 5 dimming curves flicker free operation and a 4-Button DMX menu with digital display. Users may choice 3-pin or 5-pin DMX connectors
The 12PX HEX is compatible with the optional Dotz Par RF easy-to-use wireless RF remote. Alternatively the fixture may be operated via a DMX controller or the unit's built-in programs.
Also available: 12PX HEX Pearl in white exterior finish.
Specifications:
Source
• Light Source: 12 RGBWA+UV LEDs (Red Green Blue White Amber & UV LED)
• Individual LED wattage : 12W
• Average LED lifetime :approximately 50000 hrs.
Optics
• Beam Angle: 25 degrees
• Gel frame for diffusion filters included (optional diffusion filters)
Control
• 5 Operational modes: Static Colour Mode RGBWA+UV Dimmer Mode Program Mode Sound Active Mode and DMX Control
• 4 DMX Modes: 6 7 8 & 12-channel
• Electronic Dimming: 0 - 100%
• 63 built-in Colour Macros
• 7 built-in Programs Sound Active Mode
• 5 selectable Dim Curves (Standard Stage TV Architectural Theatre)
• Optional Dotz PAR RF Remote available (order code 1223200035)
• LED pulse and strobe effect

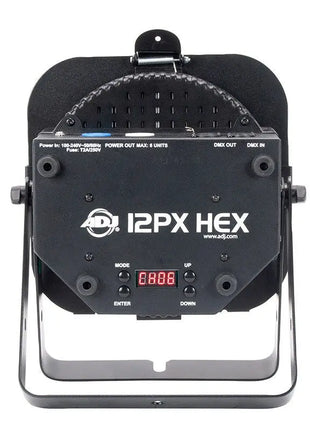

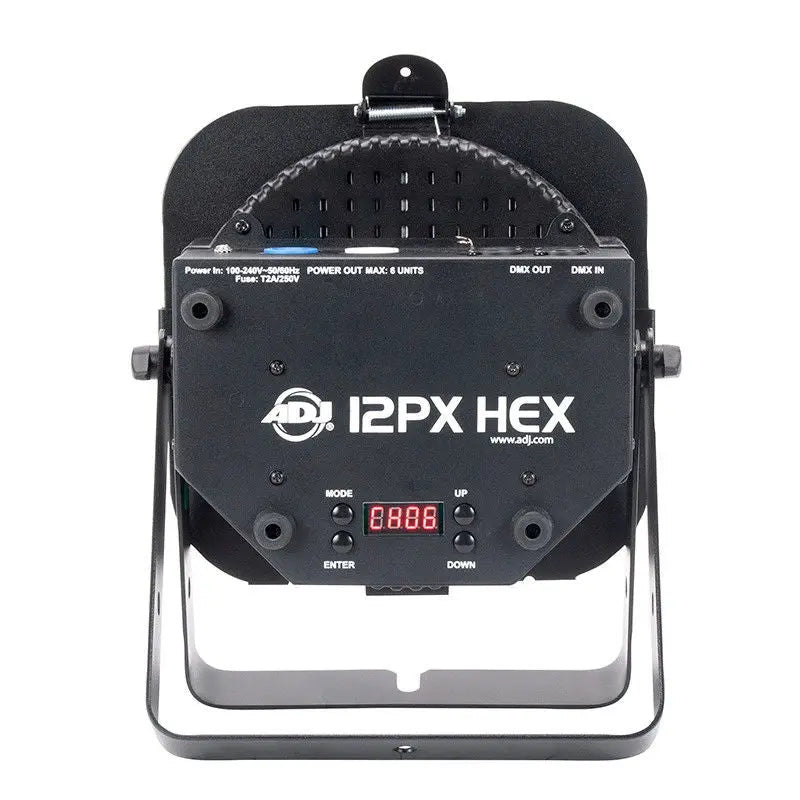

• 4-button DMX digital display on rear panel
Colours
• RGBWA+UV Colour Mixing
Construction
• Metal Housing

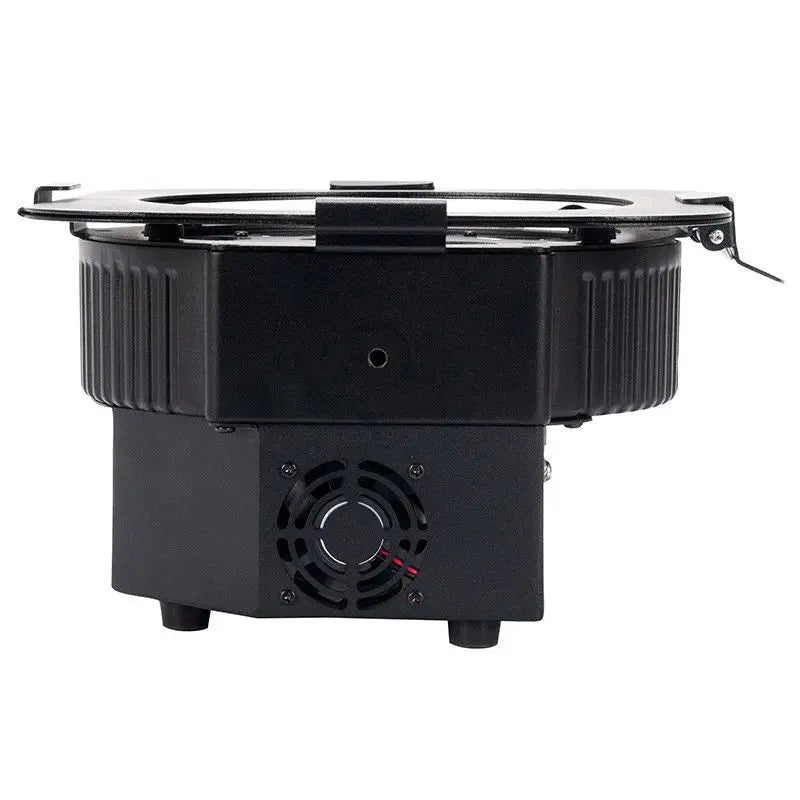

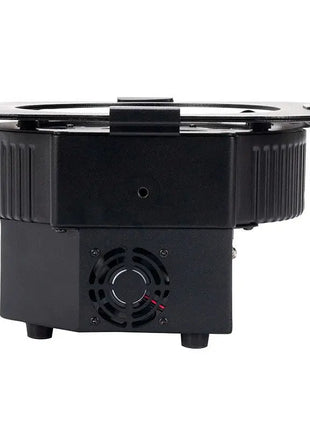

• Fan cooling
• Scissor yoke
Electrical
• Multivoltage 100-240V 50/60Hz
• Power Consumption: 133W
Connections

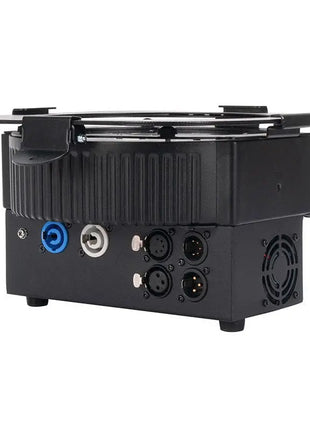

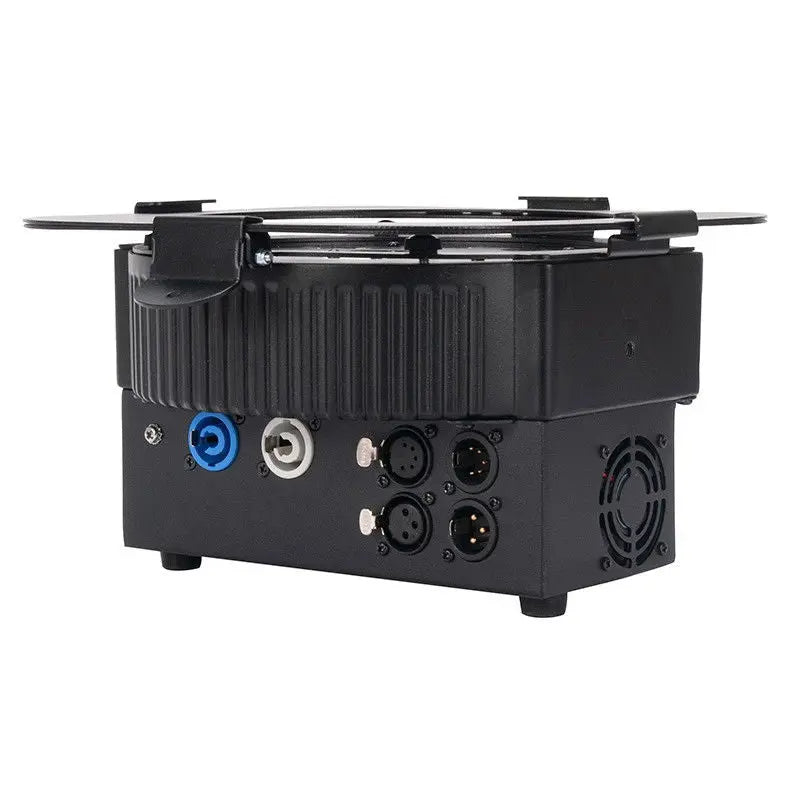

• Sideways 3- & 5-pin Locking DMX connectors
• Sideways Locking Power In/Out connections
Dimensions & Weight
• Dimensions (LxWxH): 135.8 x 249 x 297.4mm
• Weight: 4 kg.
