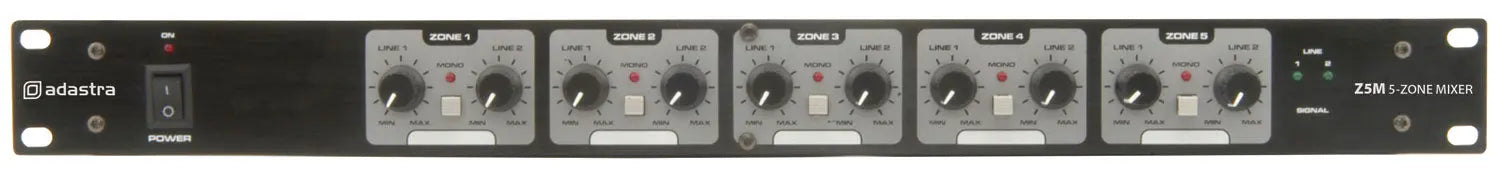

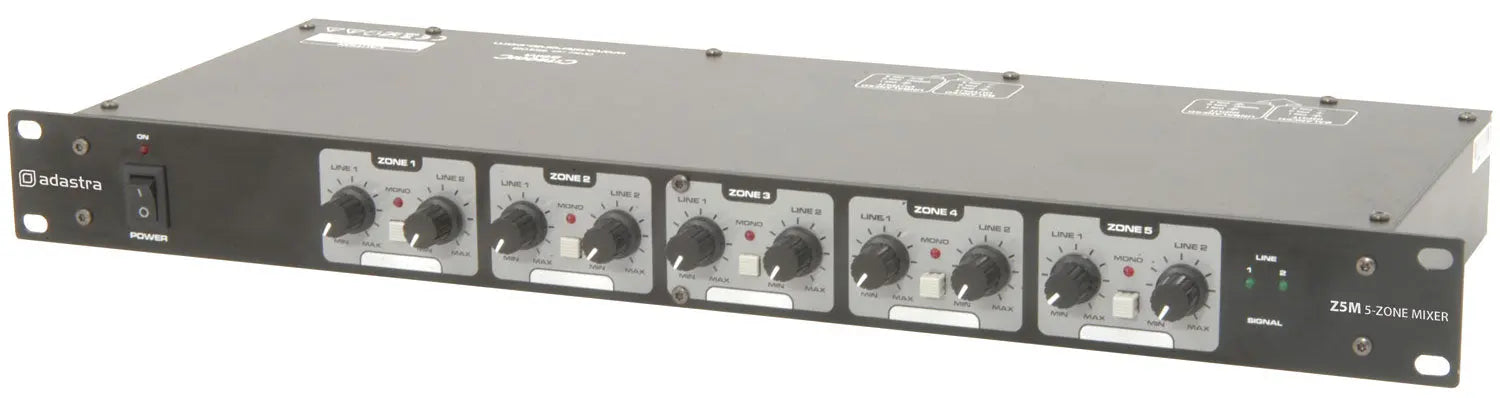

Adastra Z5M zoning mixer

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

Fully balanced XLR connections
2 inputs to 5 zones
Mono selectable for each zone

Power supply 115/230Vac 50/60Hz (IEC)
Inputs Line 1 L+R, Line 2 L+R, balanced XLRF

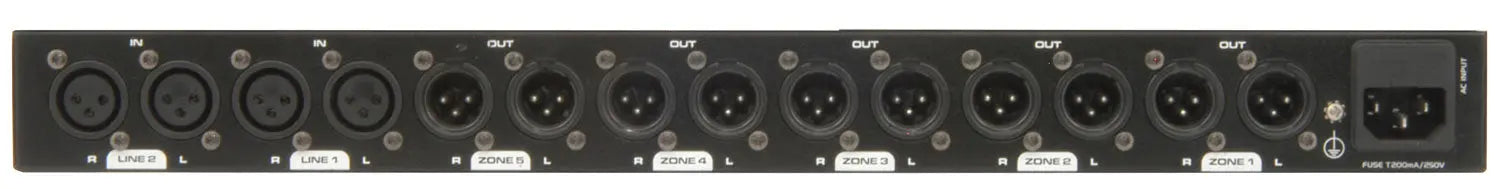

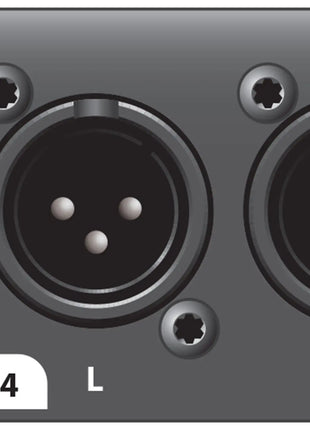

Outputs Zone 1 to 5 L+R, balanced XLRM
Input impedance 40k Ohms
Output impedance 220 Ohms
Frequency response 20Hz - 25kHz, +0/-1dB
Signal to noise ratio >100dB
THD <0.005%
Dimensions 483 x 175 x 44mm
Weight 2.2kg

Product form

Adastra Z5M zoning mixer

Free pickup in our shop(s)

£119.00

  • Available
  • Fast tracked delivery
  • Service excellence guaranteed
    iFrame
    ×
    • Don't want to order online? Call us on 01635 780002

    SKU: 953.019UK
    Barcode: 5015972101957

    Trustpilot

    2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

    Fully balanced XLR connections
    2 inputs to 5 zones
    Mono selectable for each zone

    Power supply 115/230Vac 50/60Hz (IEC)
    Inputs Line 1 L+R, Line 2 L+R, balanced XLRF
    Outputs Zone 1 to 5 L+R, balanced XLRM
    Input impedance 40k Ohms
    Output impedance 220 Ohms
    Frequency response 20Hz - 25kHz, +0/-1dB
    Signal to noise ratio >100dB
    THD <0.005%
    Dimensions 483 x 175 x 44mm
    Weight 2.2kg
