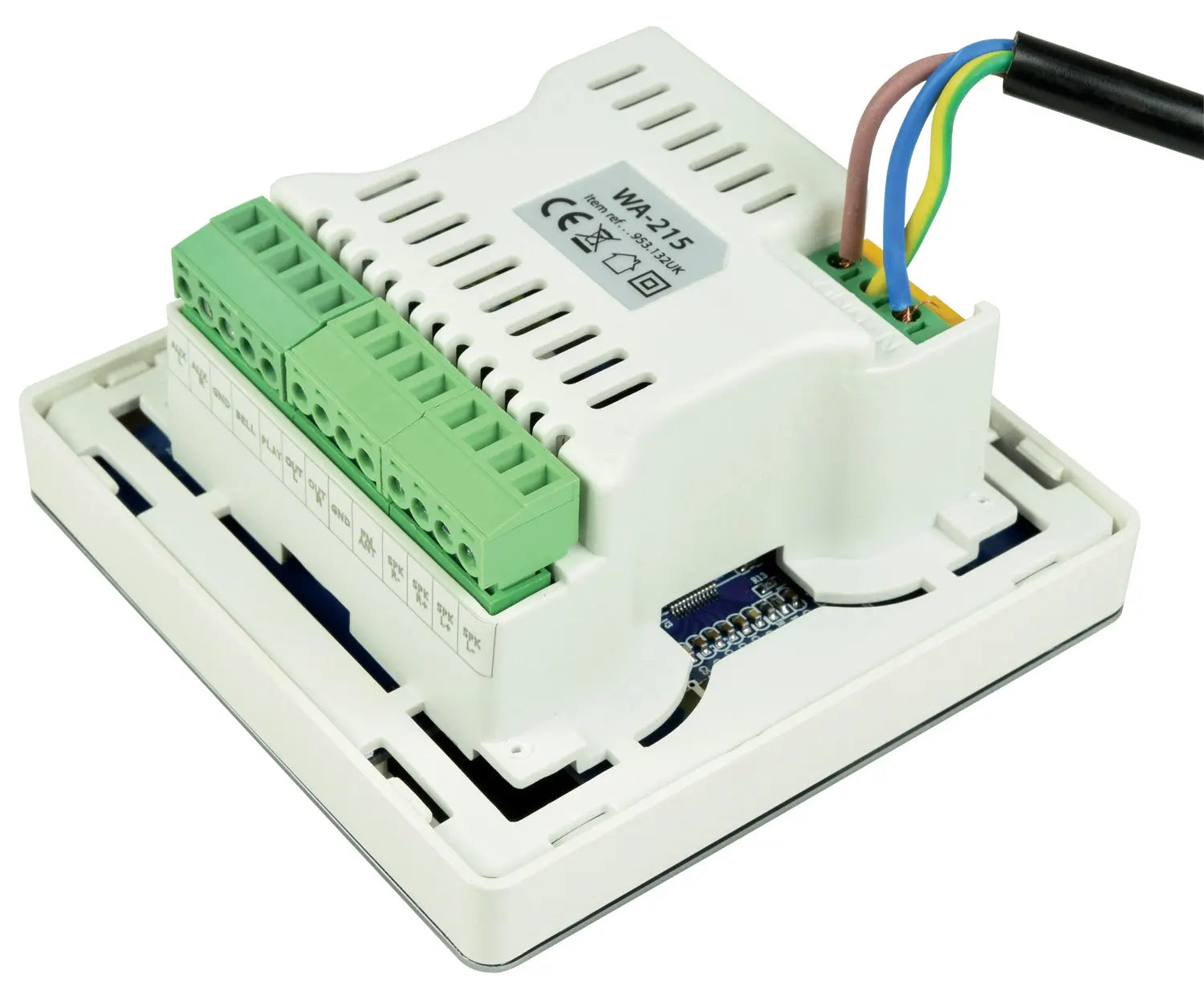

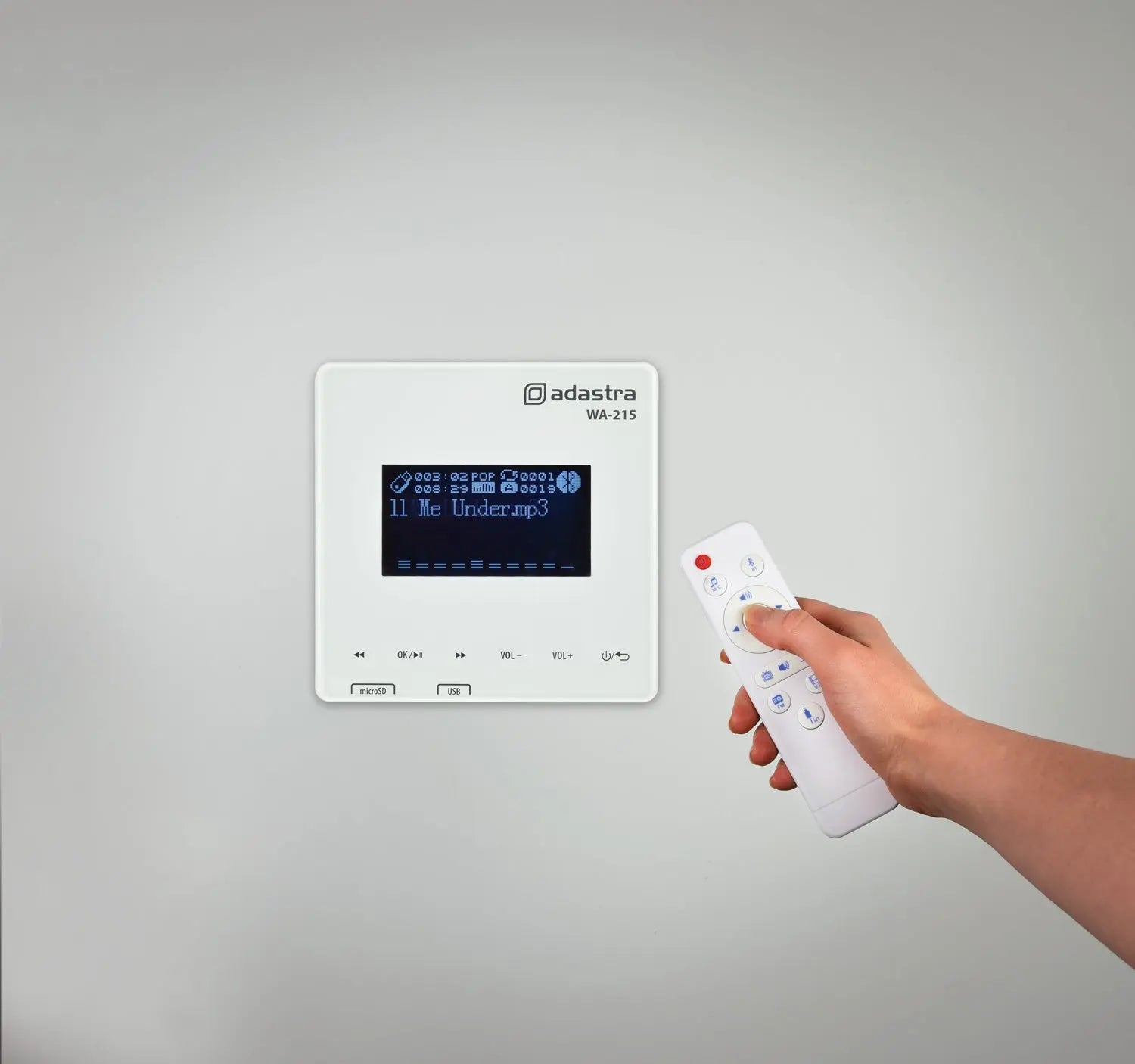

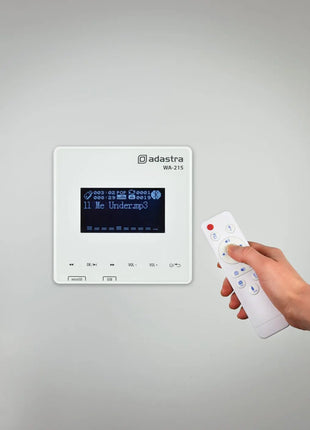

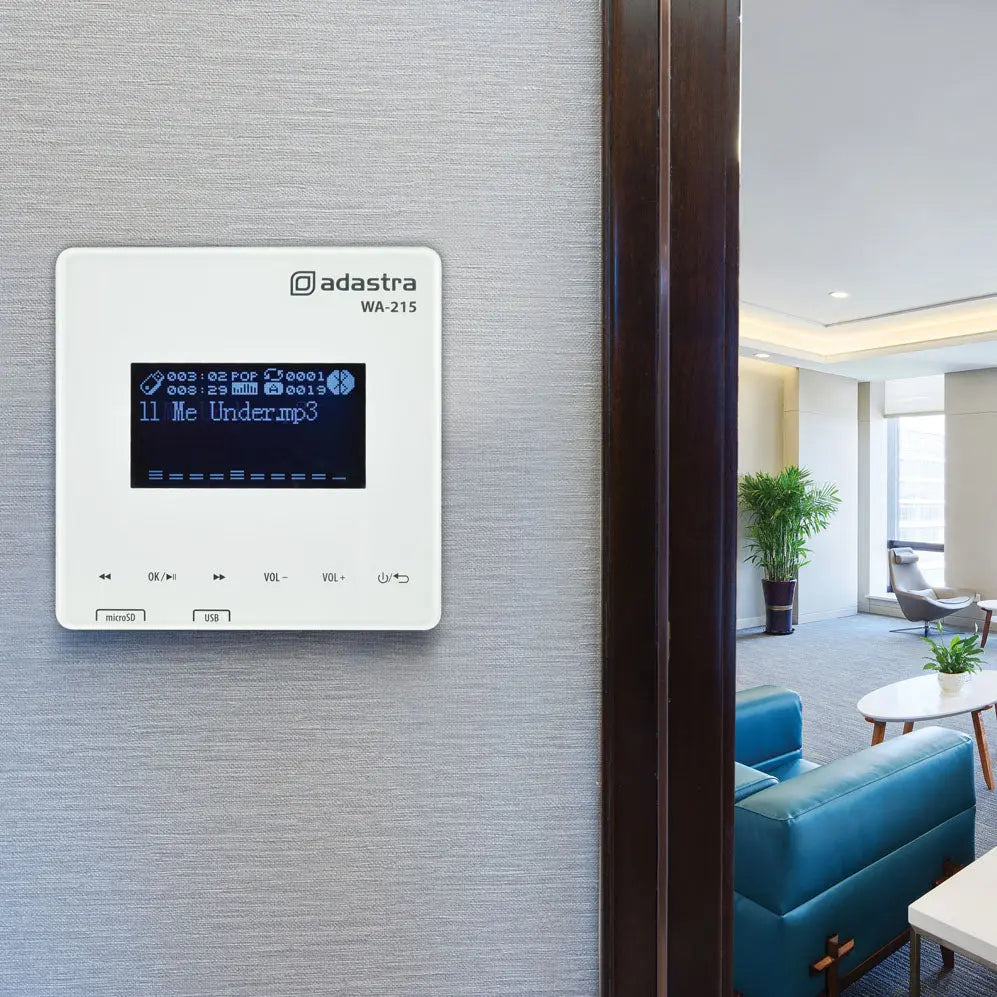

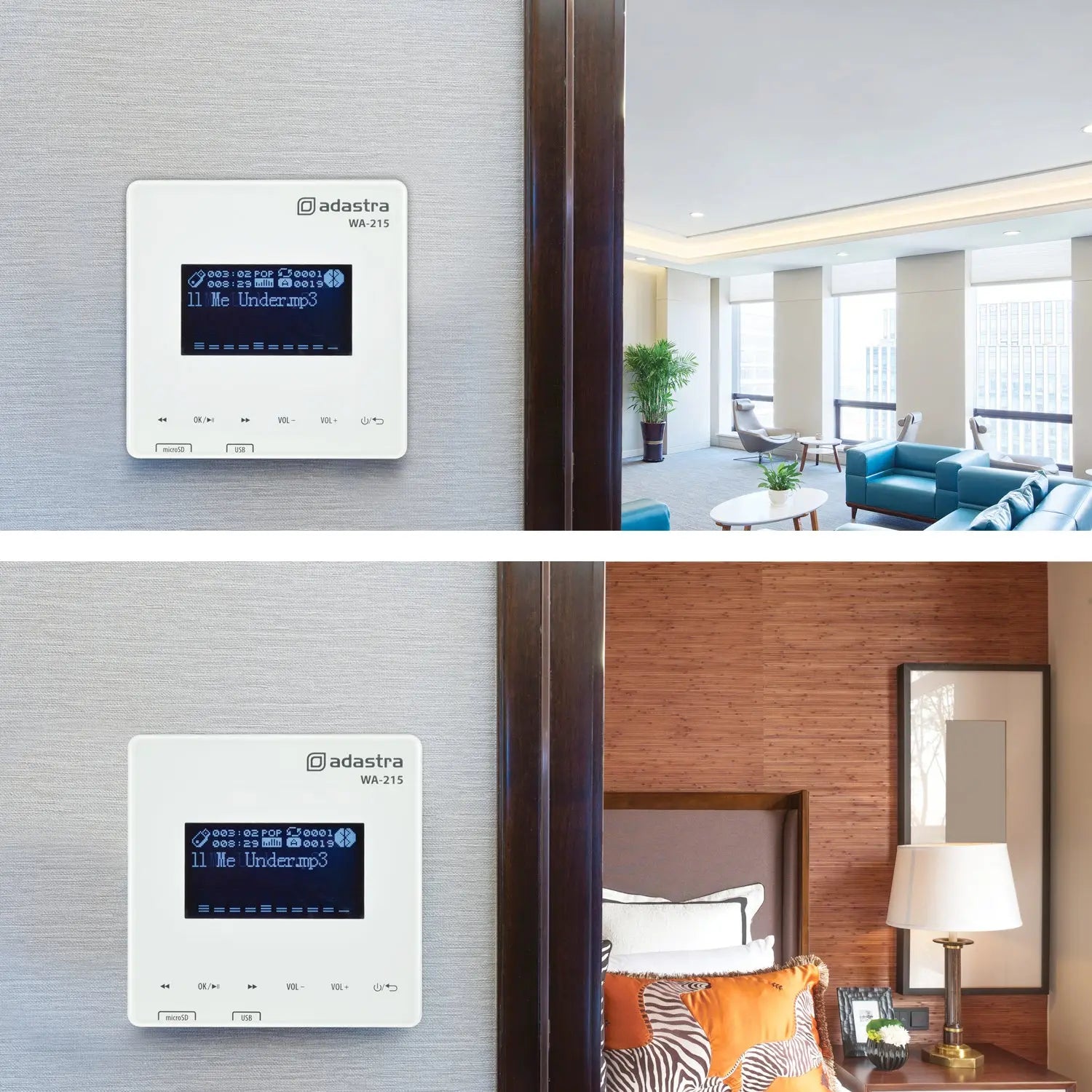

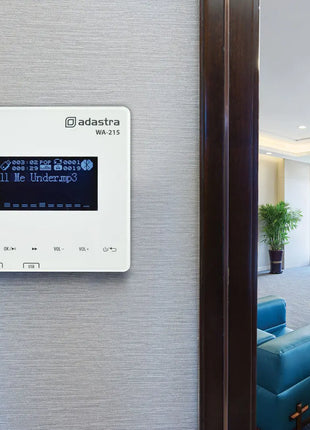

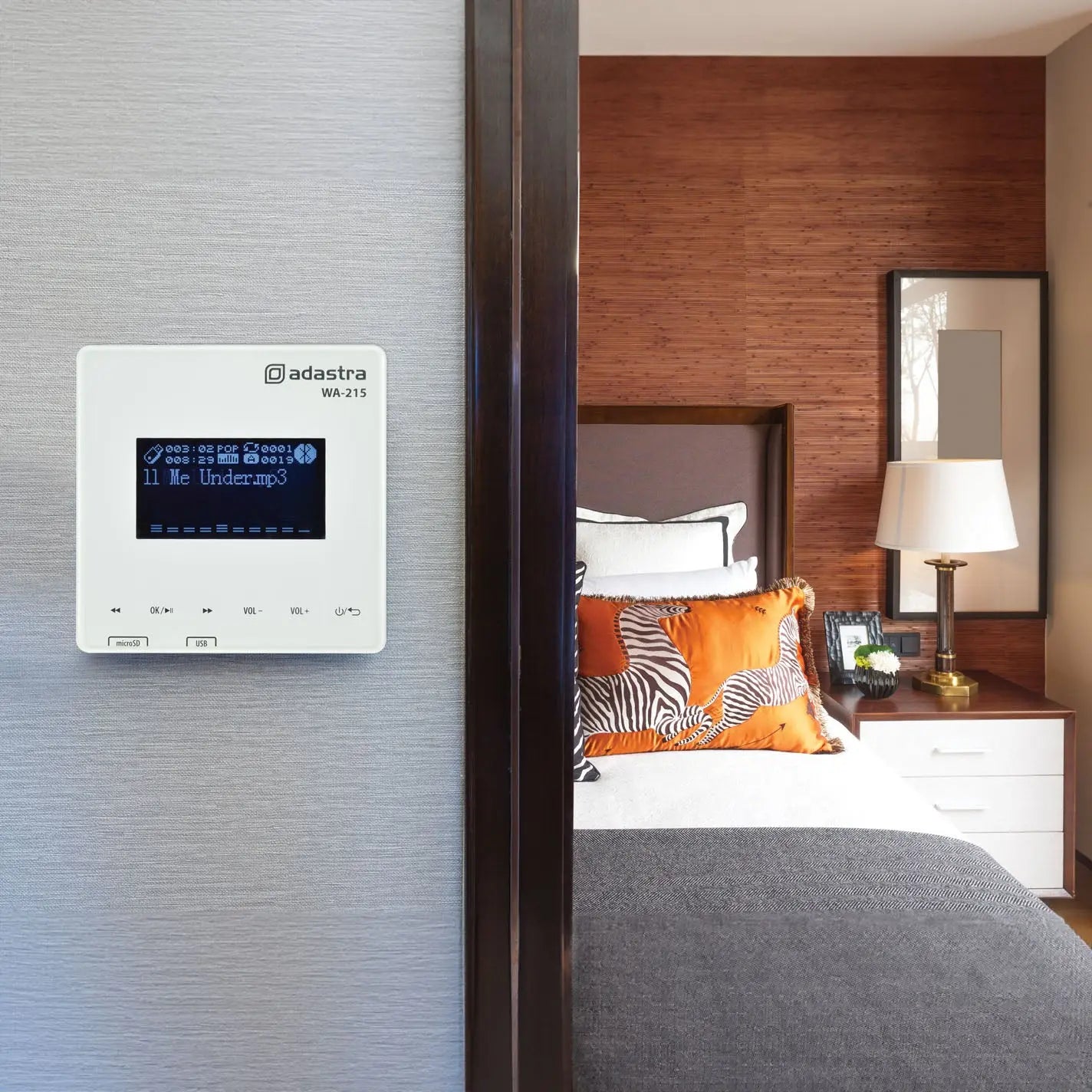

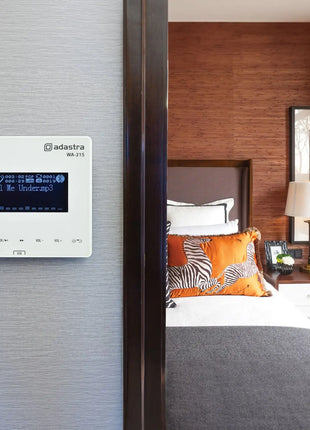

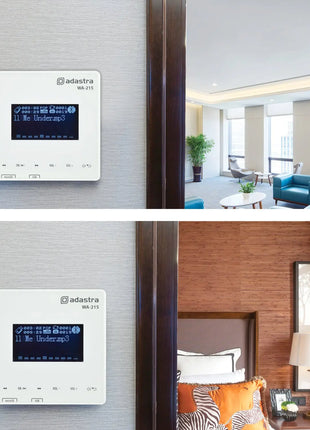

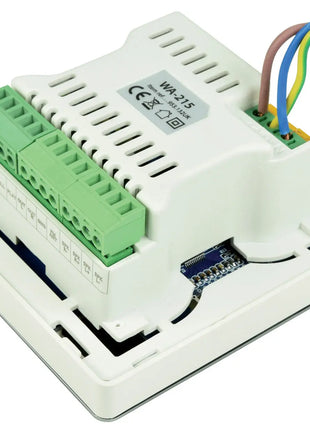

Compact audio controller with 2 x 15W digital amplifier built into a single gang wall plate. Powered directly from 100-240Vac mains supply, the unit can be installed into a partition wall or 47mm back box and provides a minimal yet fully functional control surface. The WA-215 has an inbuilt USB/MicroSD audio player, an FM tuner and Bluetooth receiver. Key functions are operated from the front touch panel or by using the supplied IR remote control. Connections for 2 speakers, mains power, FM antenna and an external line input are provided at the rear on screw terminal Euroblock connectors. Trigger contacts are also included for media playback and in internal doorbell sound. A complete and versatile audio solution for wall or ceiling background music speakers in the home or commercial premises.

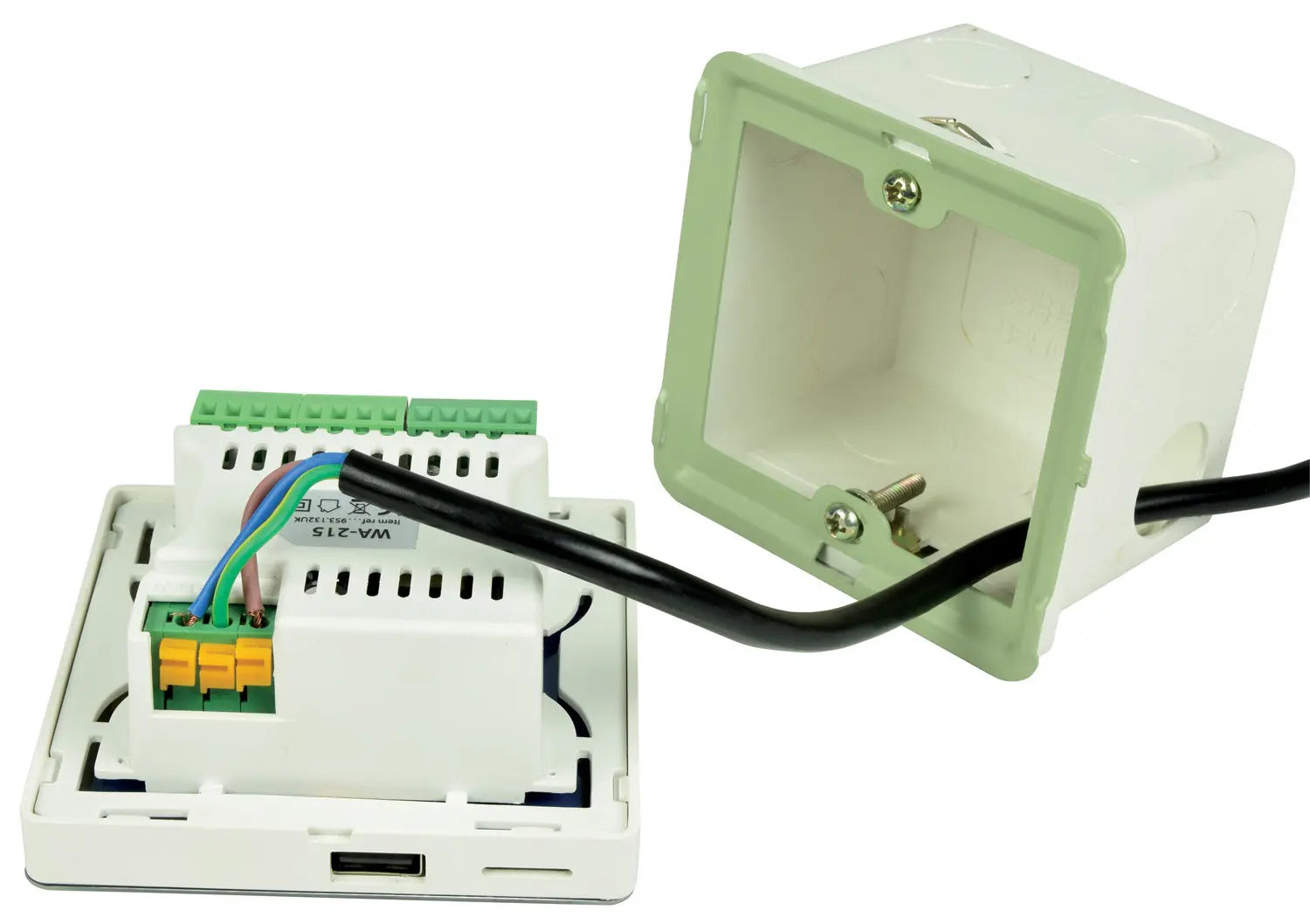

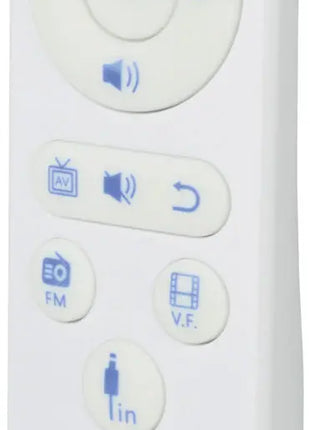

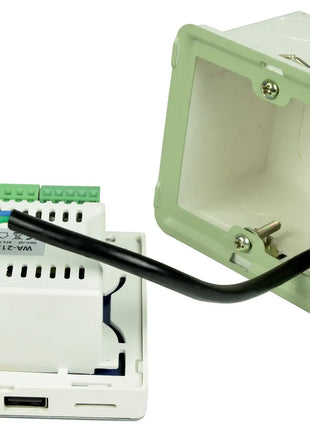

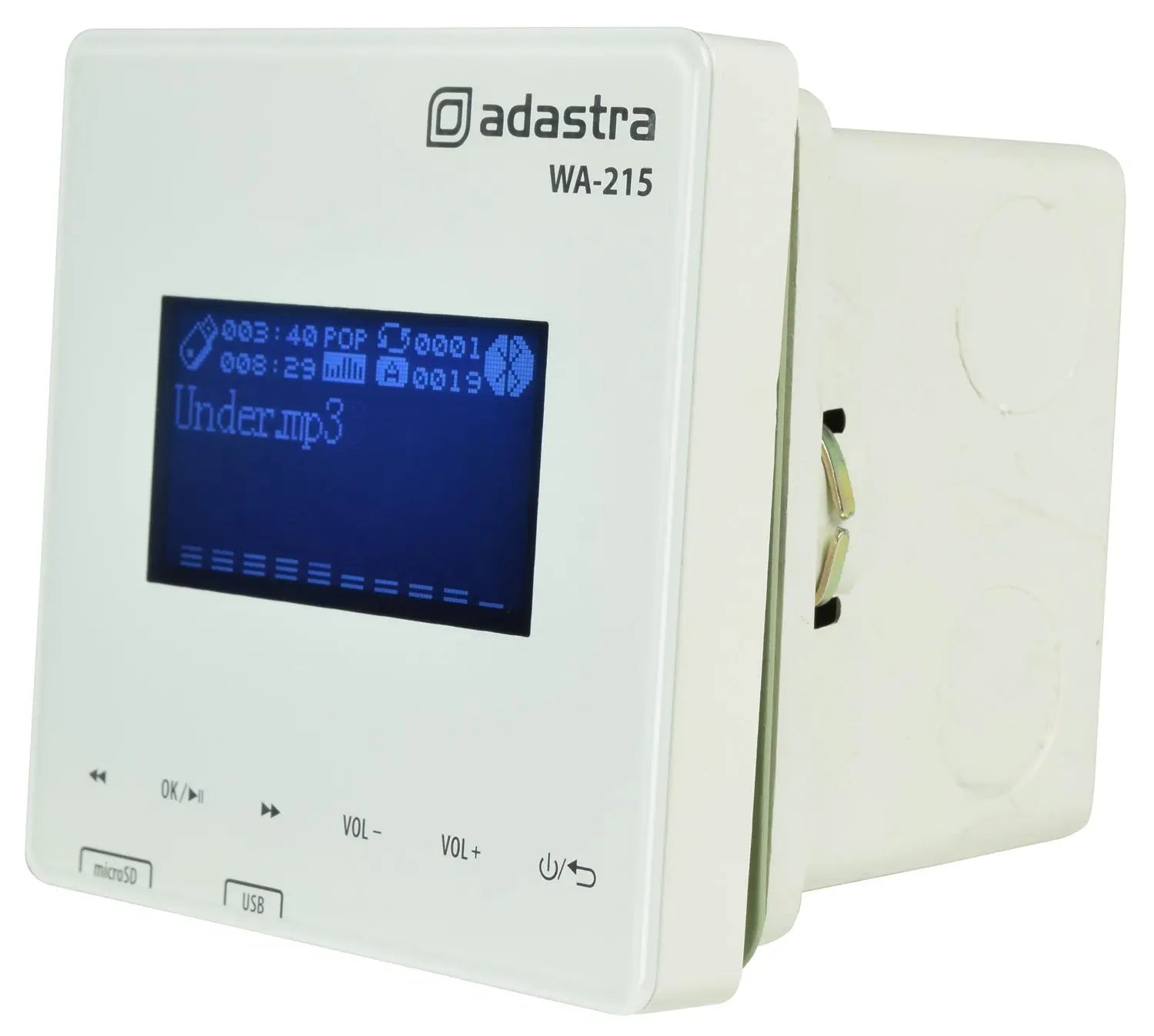

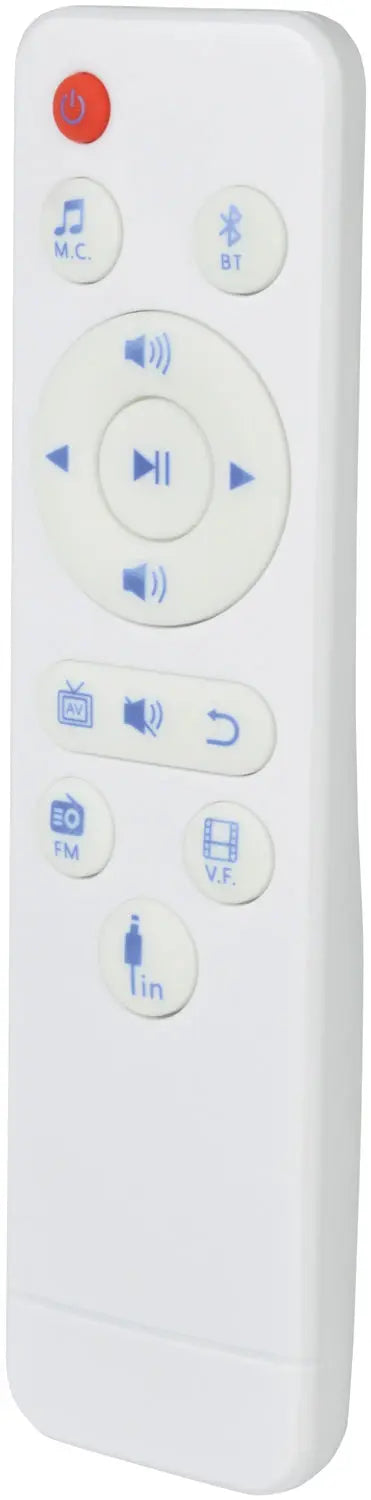

Supplied with 57mm back box and IR remote control handset.

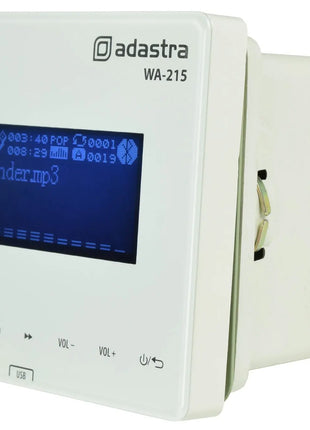

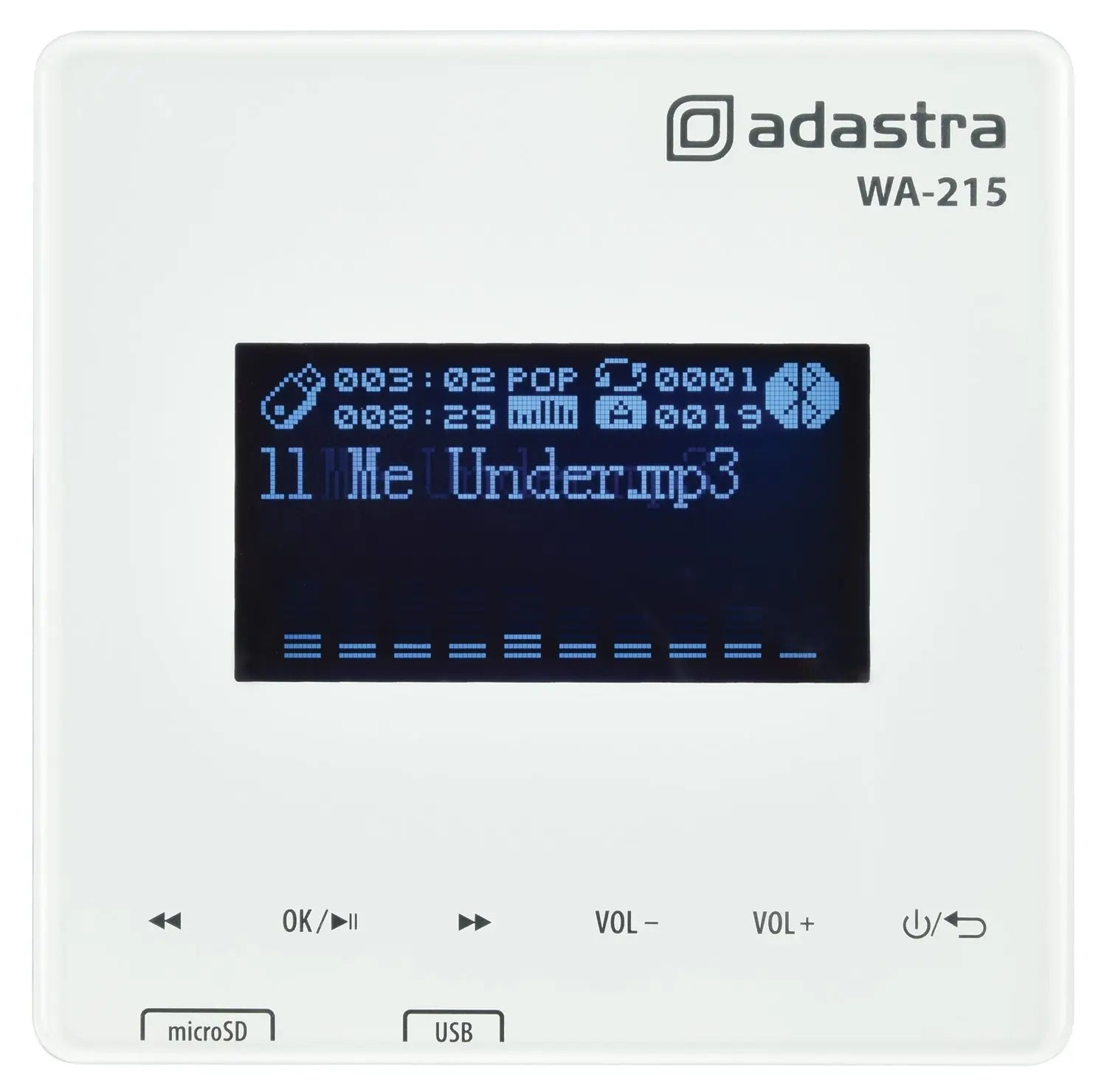

60mm backlit LCD display

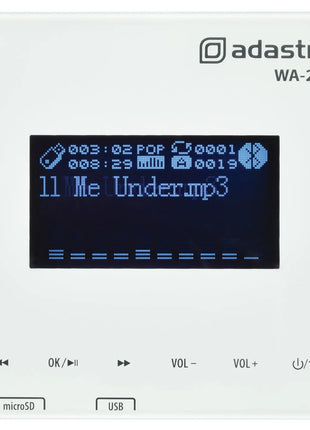

Wipe clean touch control panel
Bluetooth connectivity
Built in USB/microSD player and FM tuner
Power supply 100-240Vac, 50/60Hz (euroblock terminals)
Output 2 x 15W @ 8 ohms (euroblock terminals)
Audio source USB / microSD player, FM tuner and Bluetooth receiver
Audio format mp3, wma, wav
FM : tuning range 87.5 - 108MHz
Bluetooth range Up to 10m
Frequency response 20Hz - 20kHz (±3dB)
THD <0.03% at 1kHz, 1W
S/N ratio >98dB
Trigger Remote playback and door bell (euroblock terminals)
Auxiliary input Left + right line in (euroblock terminals)
Mounting depth 47mm (with adequate ventilation), 57mm back box supplied
Dimensions 86 x 86 x 50mm
Weight 150g
Bluetooth version 4.1
