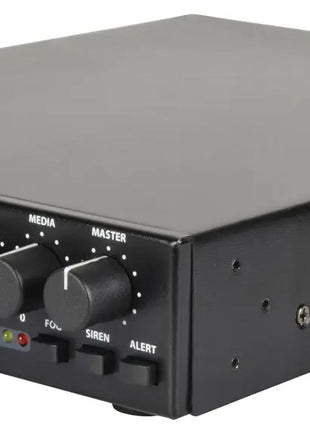

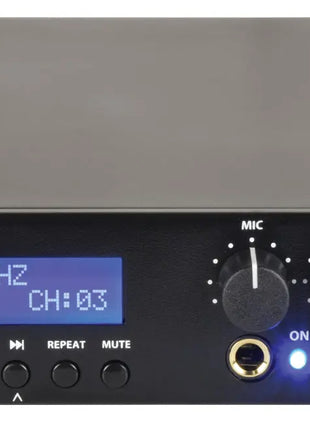

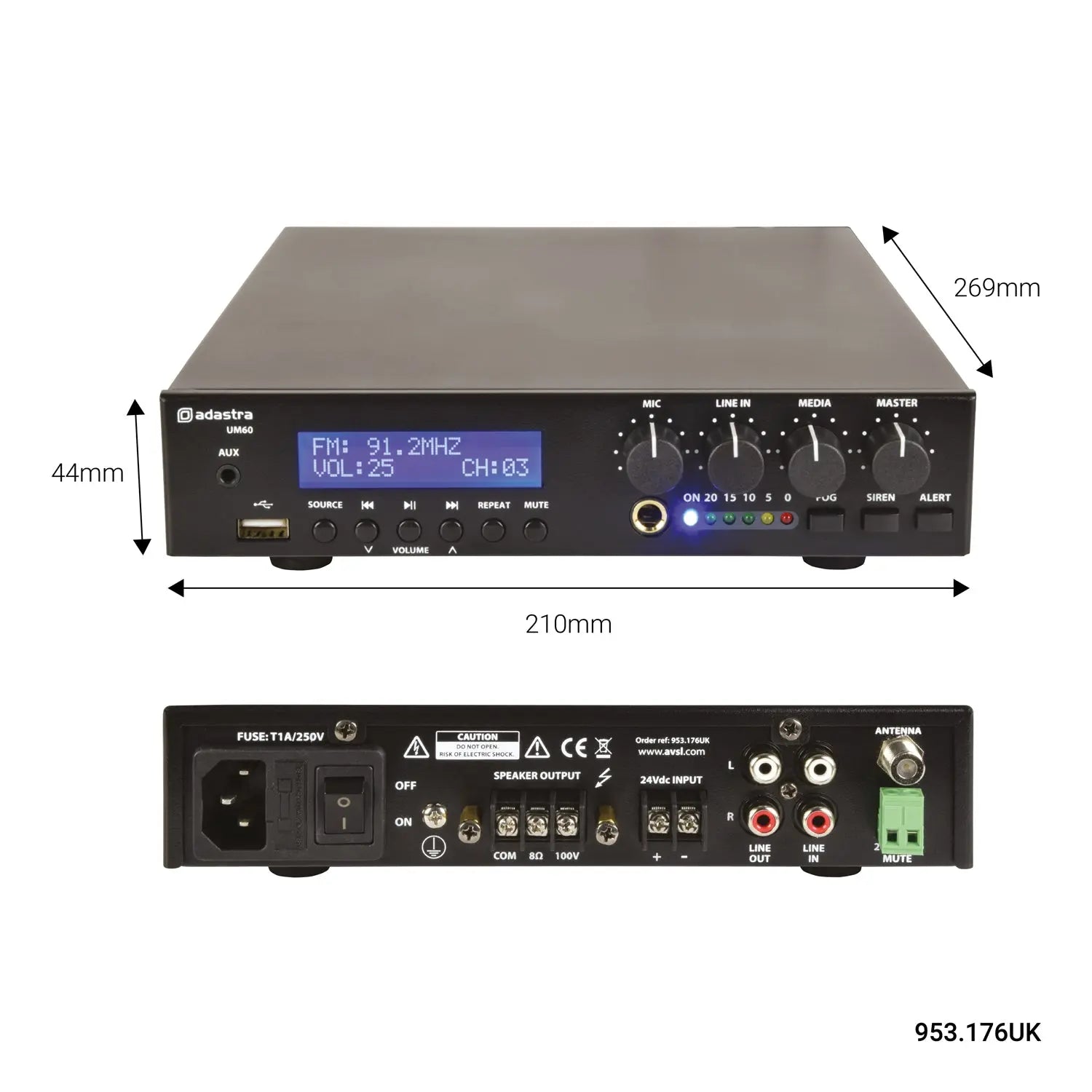

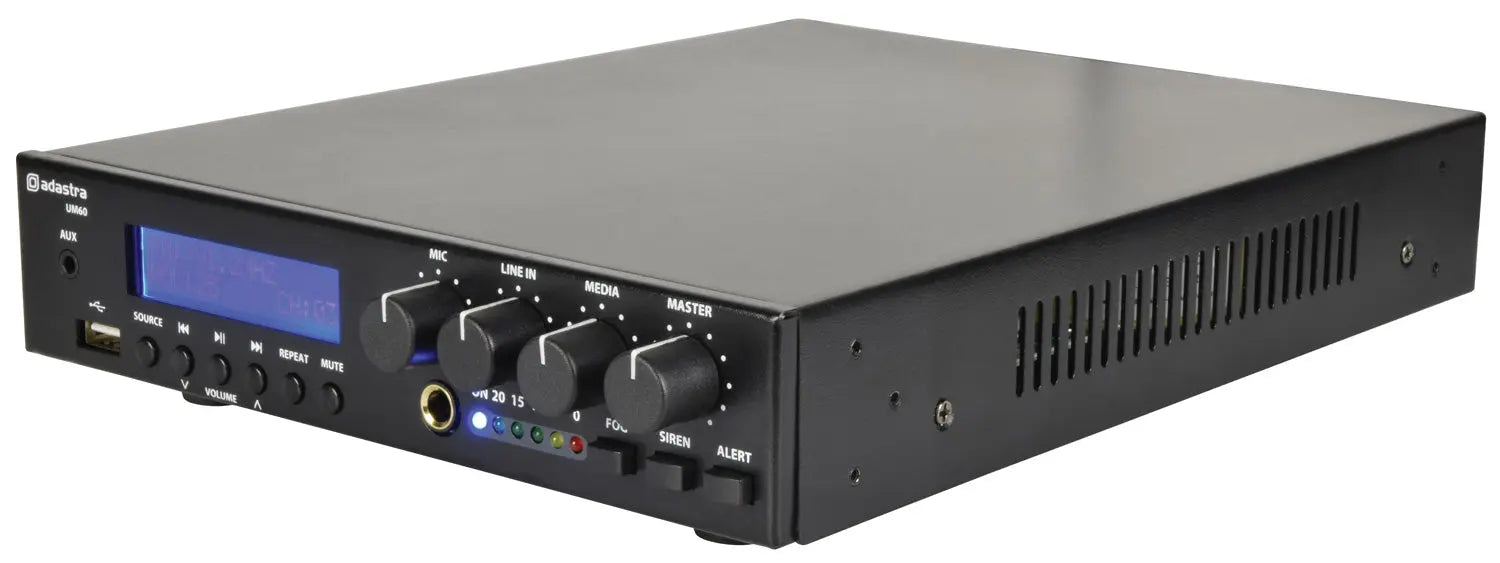

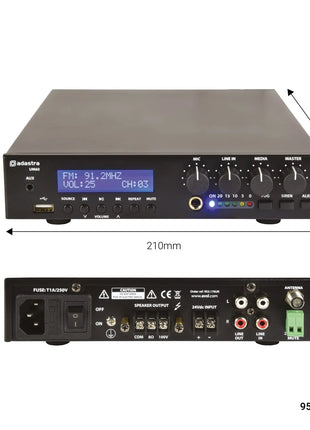

The Adastra UM60 is a versatile and efficient 100V mixer-amplifier designed for small to medium PA installations, such as in retail, event venues, or offices. This ultra-compact unit features an efficient 60W RMS Class D amplifier and a built-in media player, providing comprehensive functionality in a form factor so small that two units can be mounted side-by-side in a single 1U 19" rack space. The UM60 supports both 100V line and standard 8 Ohms speaker loads, ensuring maximum flexibility for any installation.
-

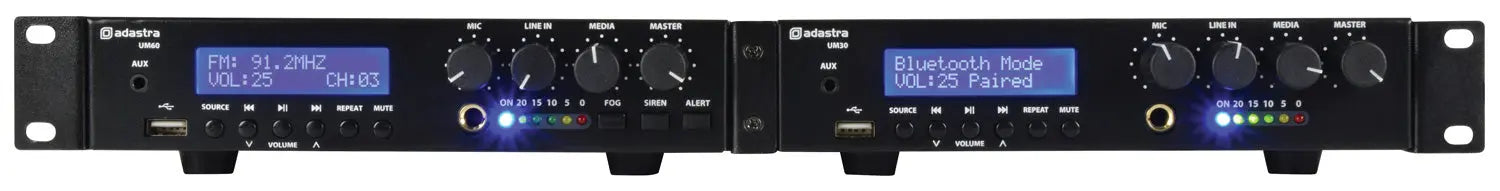

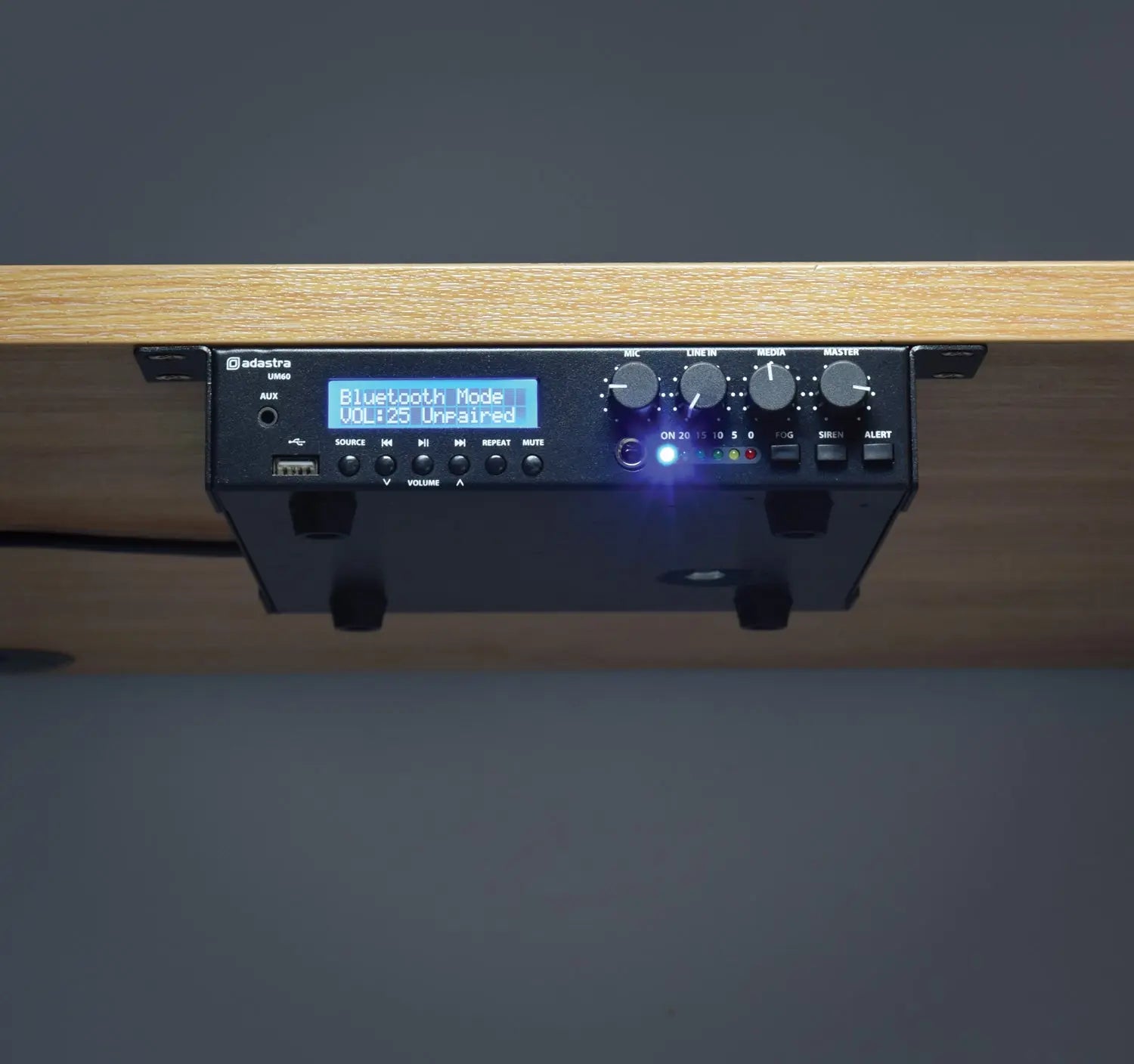

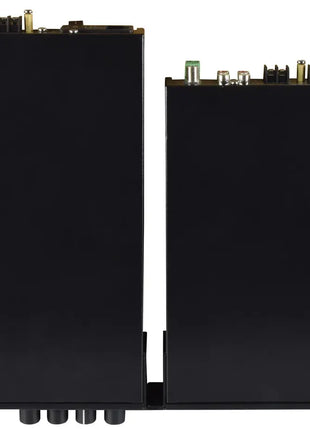

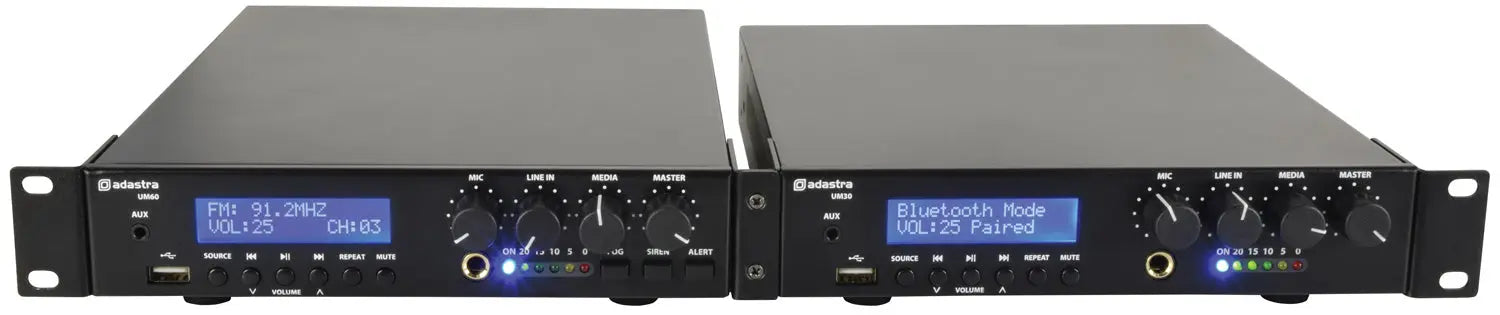

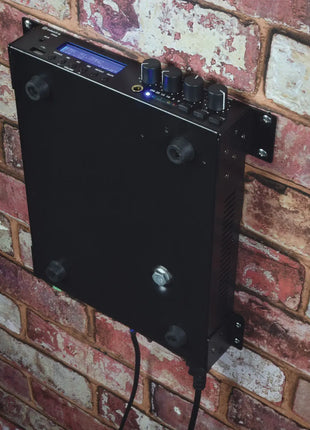

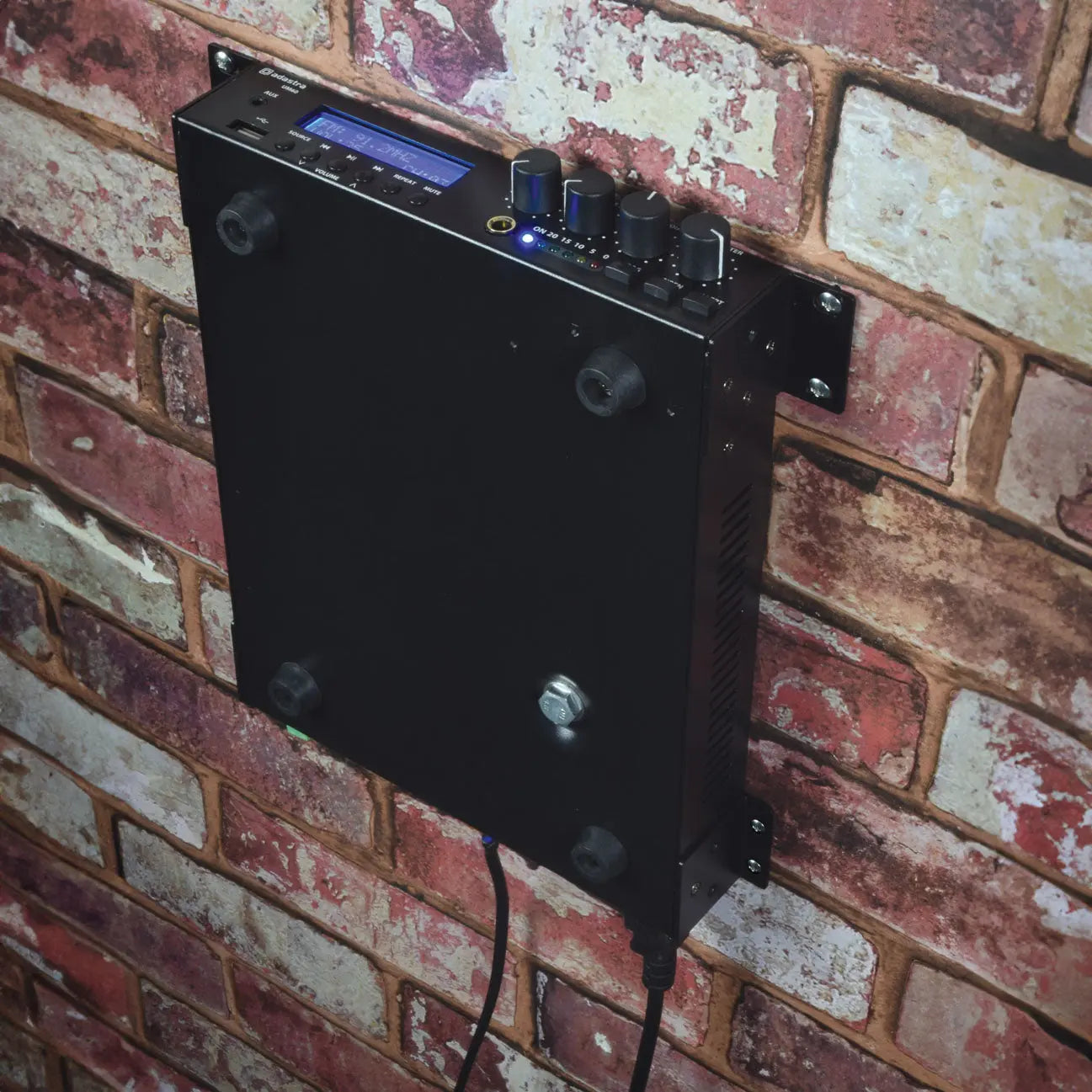

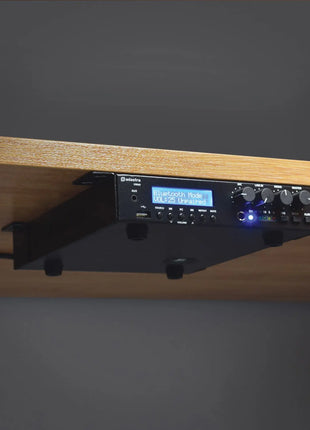

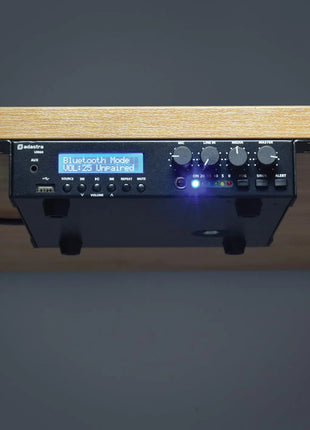

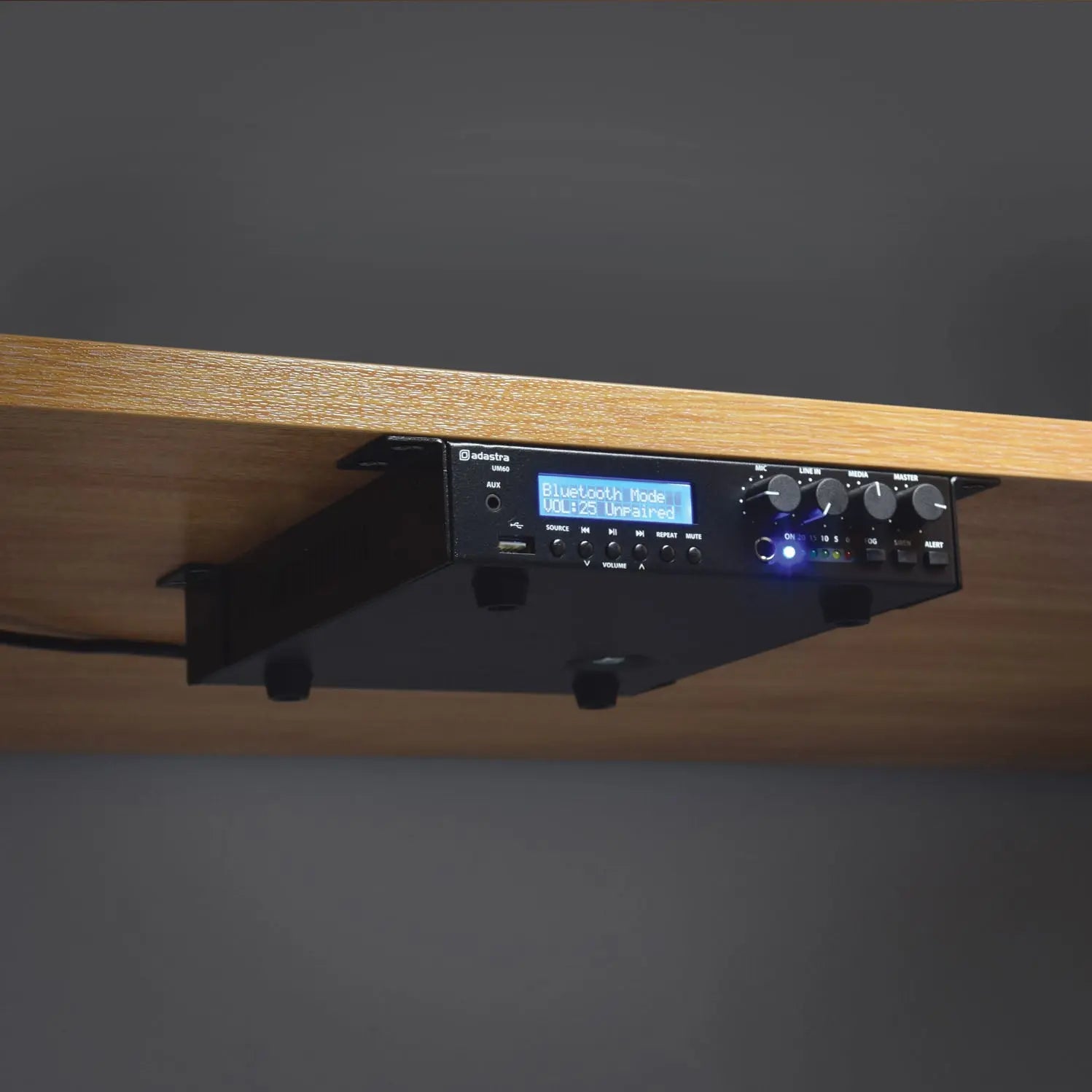

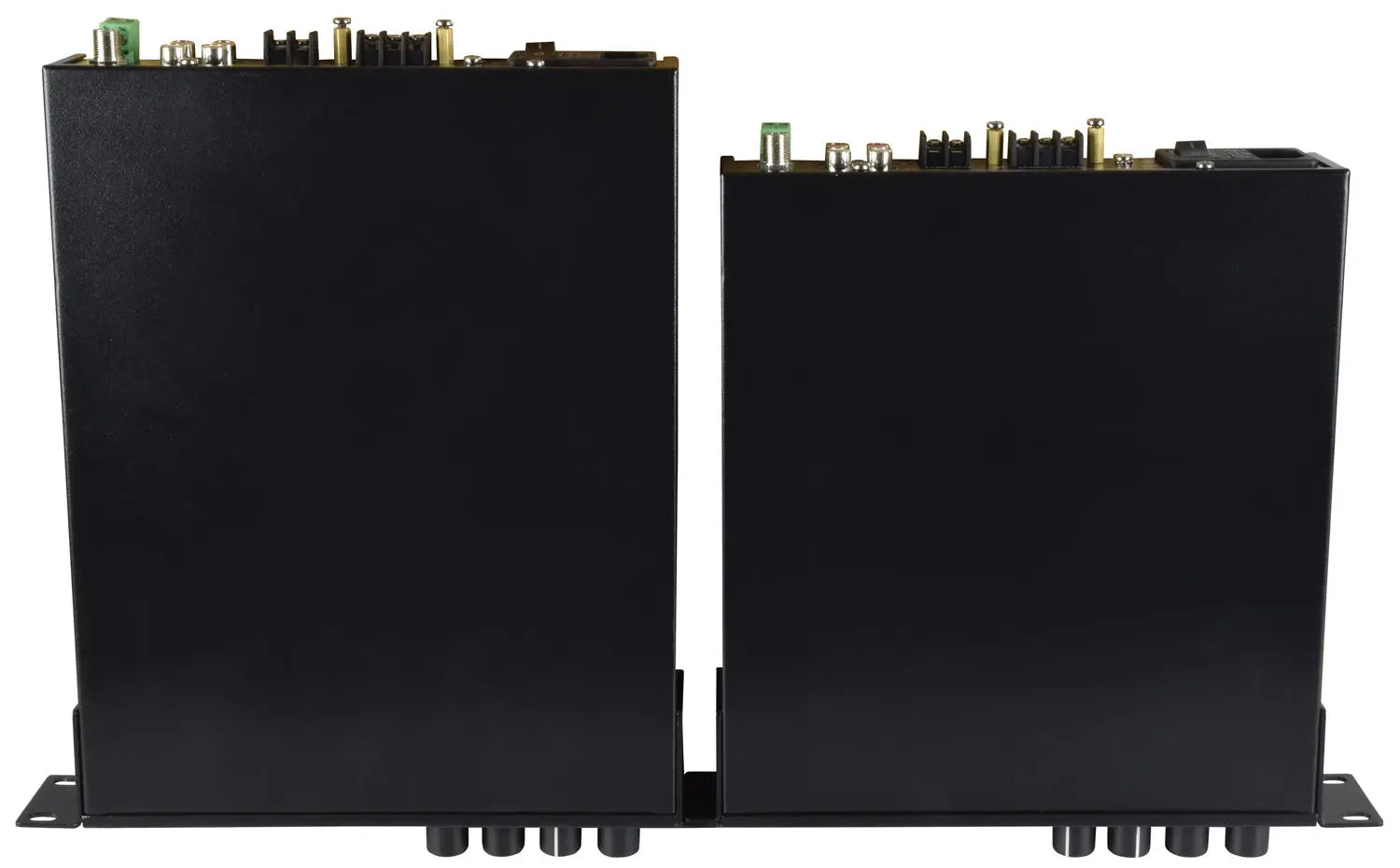

Ultra Compact Form Factor: Designed for easy installation, transport, and discreet mounting. Supplied with hardware for mounting two units side-by-side in a 1U 19" rack space.
-
Integrated Media Player: Features an internal audio source with USB player, FM tuner, and Bluetooth version 5.0 wireless receiver, simplifying source connectivity. The Bluetooth ID is programmable for customized installations.
-

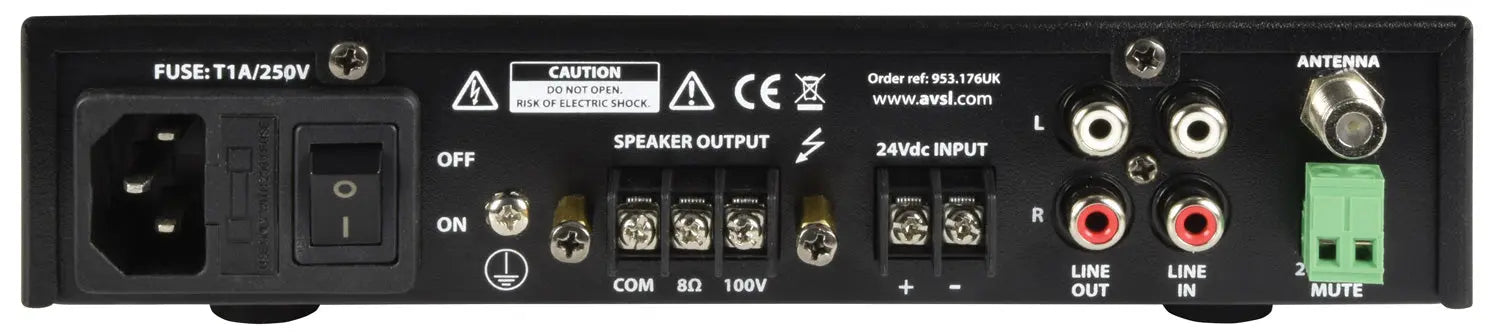

Versatile Speaker Output: Supports mono output to either a 100V line constant voltage system or a standard 8 Ohms low-impedance speaker load, connected via screw terminals.
-
Efficient Class D Design: Utilizes an efficient Class D amplifier construction with a transformer output, ensuring reliable 60W RMS power delivery with low heat generation.
-
Flexible Power Options: Can be powered via standard mains connection (170-264Vac, 50Hz IEC) or through a 24Vdc power source via rear screw terminals, ideal for mobile or backup power applications.
-

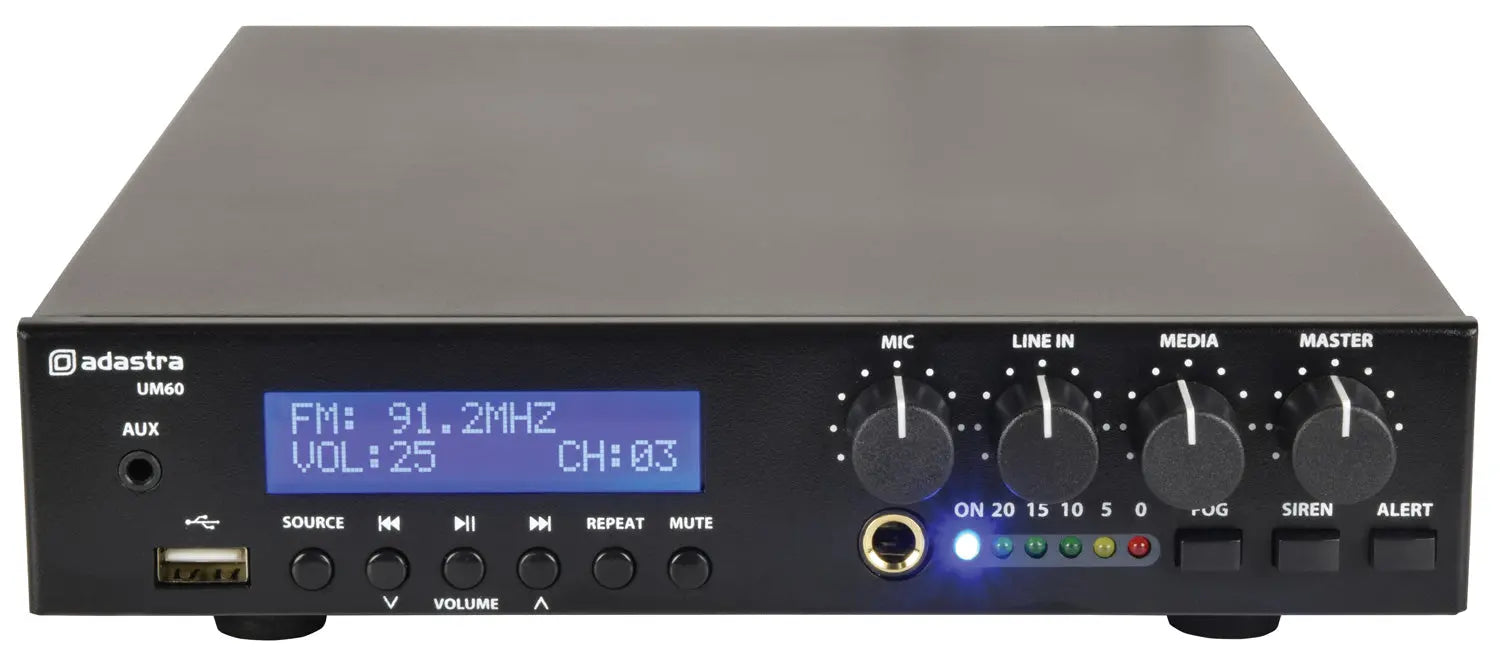

Comprehensive Inputs: Features a dedicated microphone input (6.3mm), a line input (2 x RCA), and an aux input (3.5mm). Volume for all inputs and the internal player is governed by front panel controls and a master volume.
-
PA System Integration: Includes a 24V relay contact for a Mute function, allowing easy integration with emergency or paging systems.
