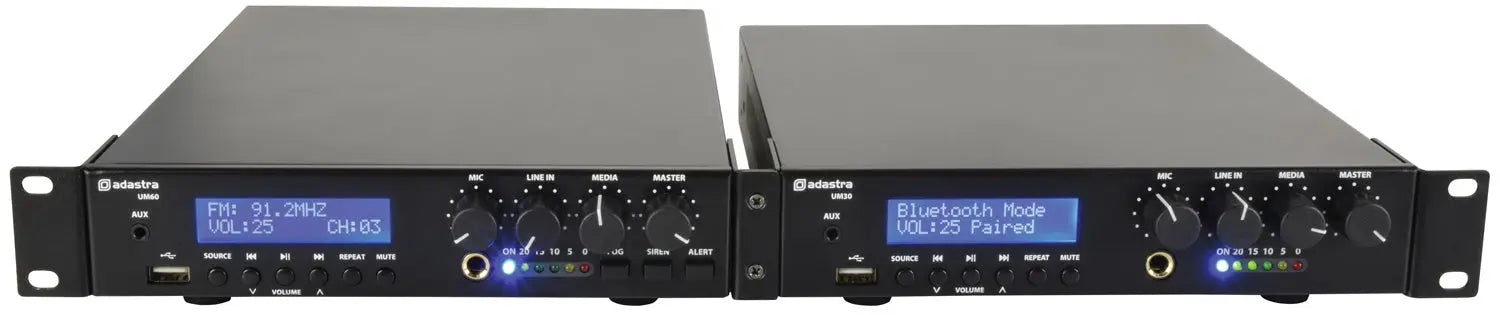

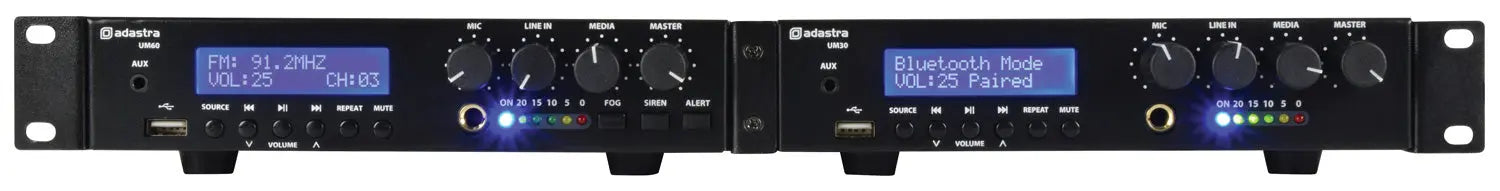

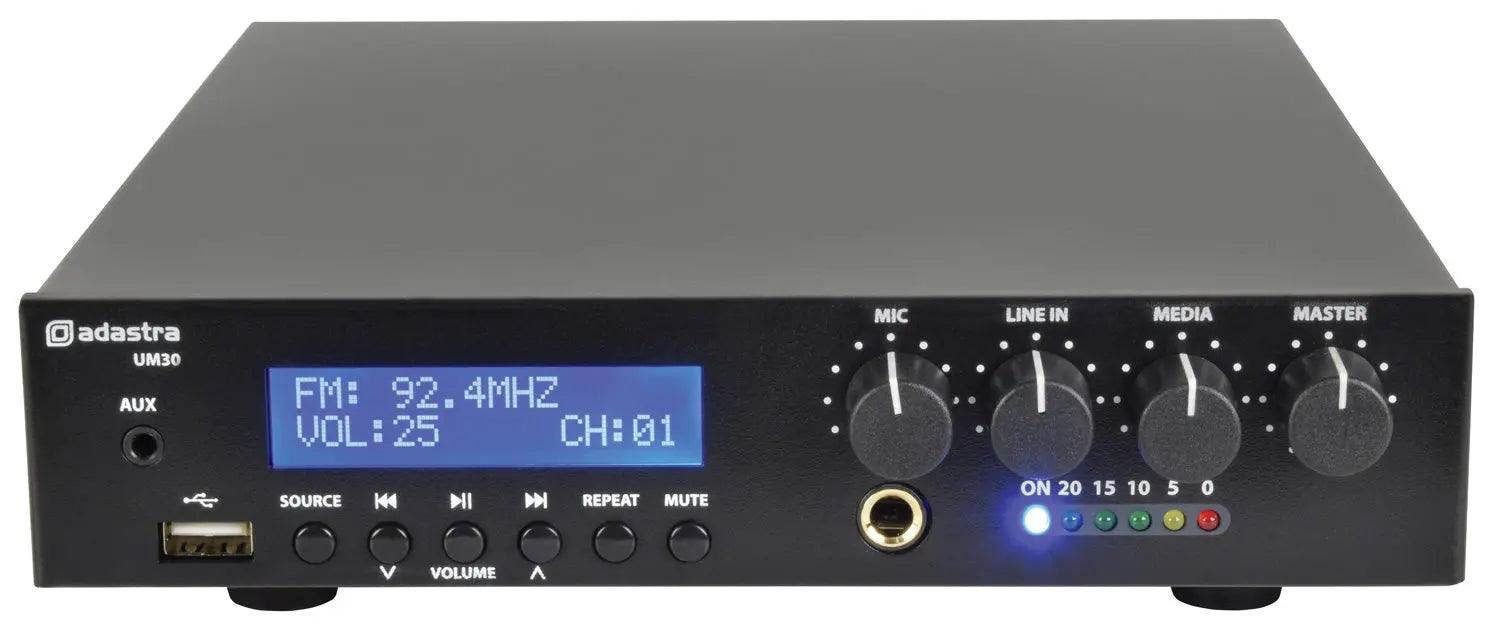

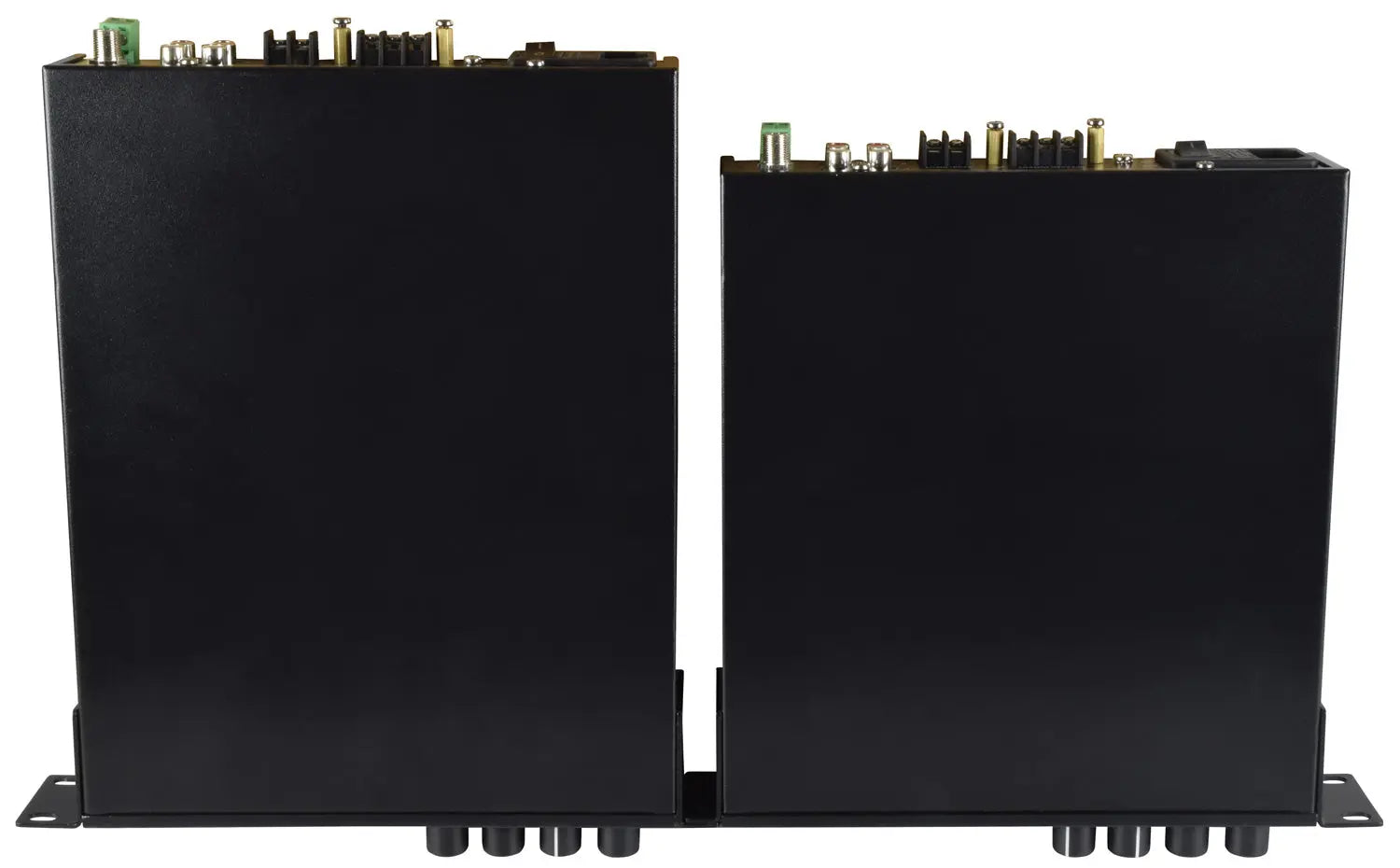

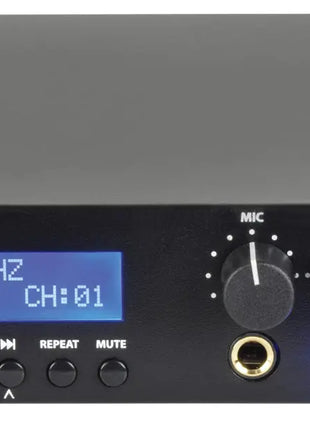

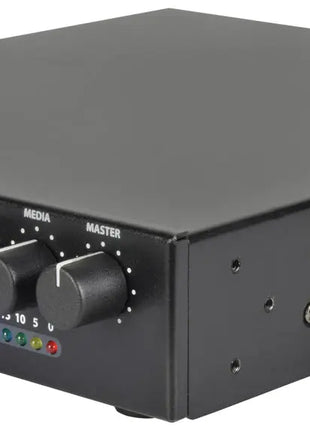

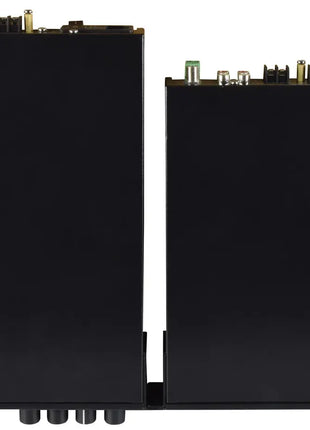

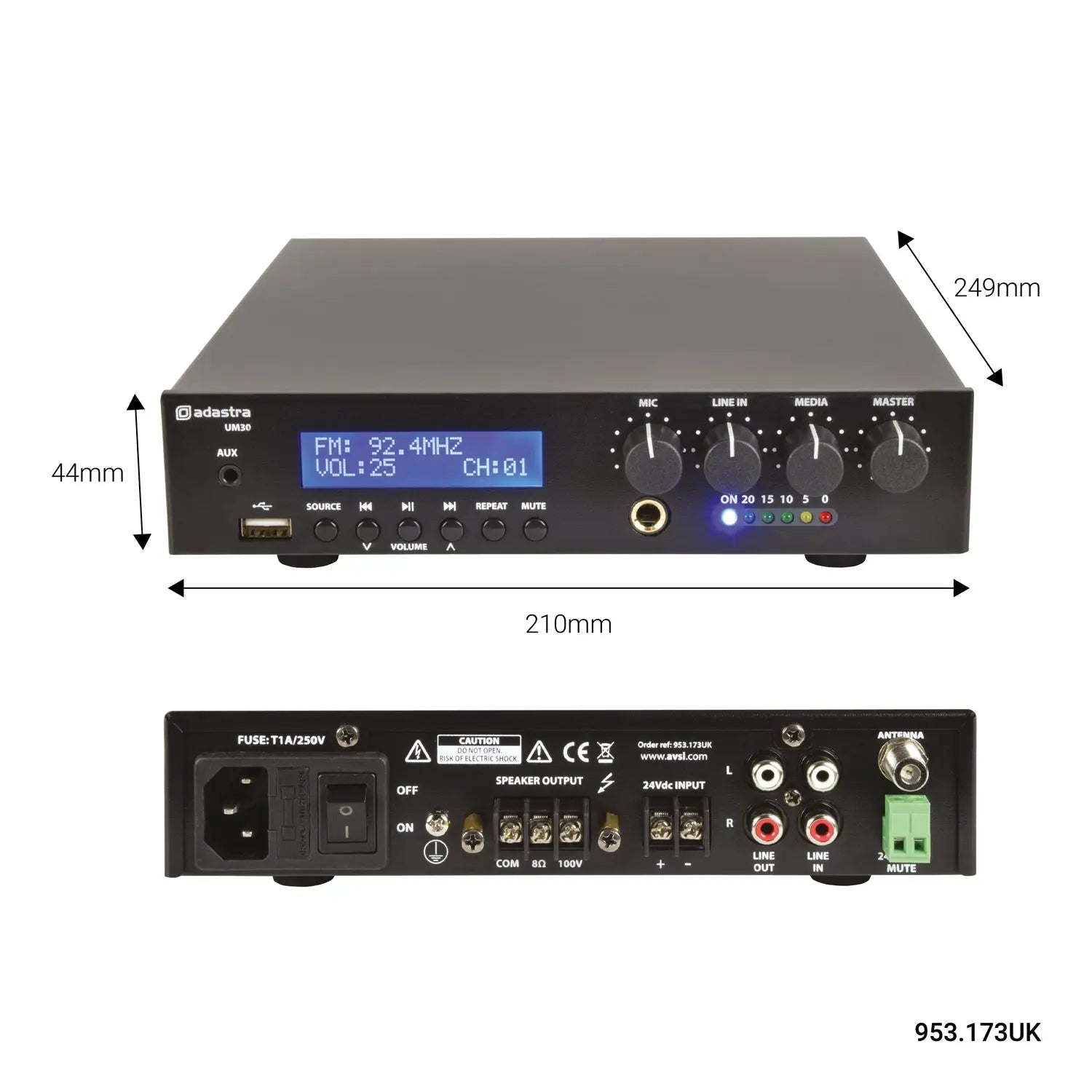

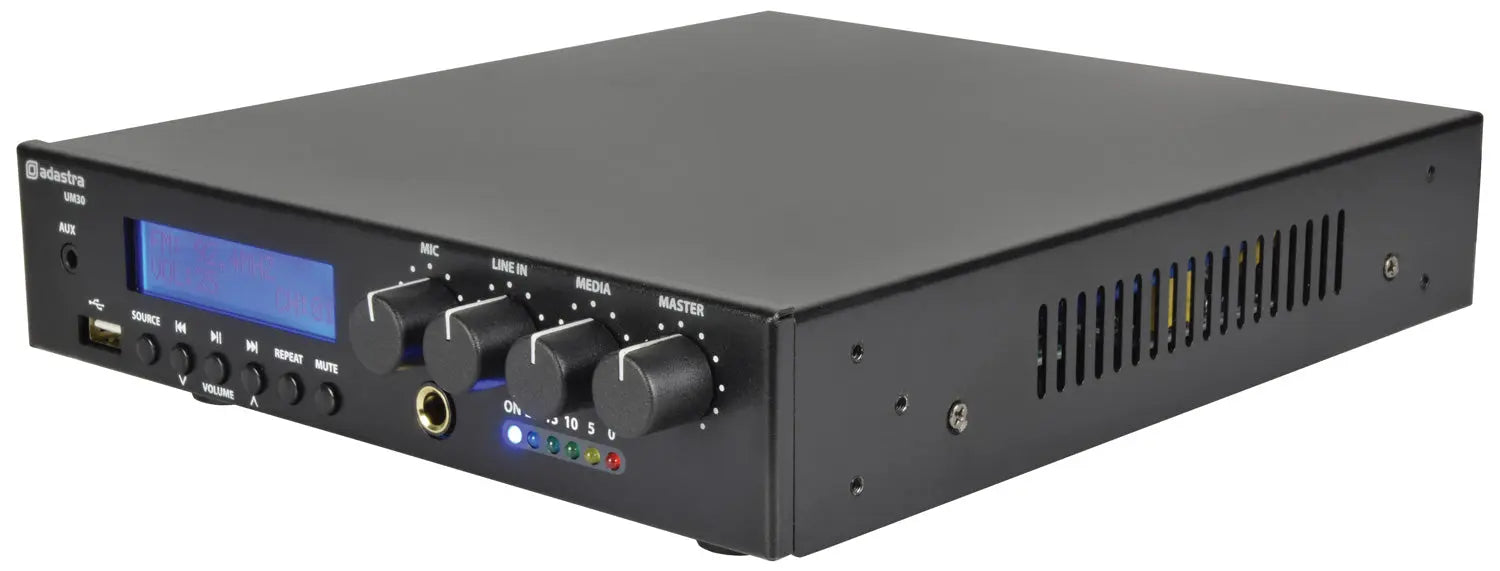

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.
Ultra compact form factor
Efficient class D amplifier design
Internal USB/FM/BT audio player
100V line or 8 Ohms operation
Bluetooth with programmable ID
Power supply 170-264Vac, 50Hz (IEC) or 24Vdc
Amplifier : construction Class D + transformer output
Audio source Internal USB/FM/BT player
Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Line output 2 x RCA (mono)

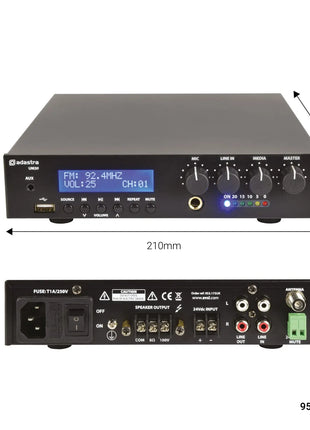

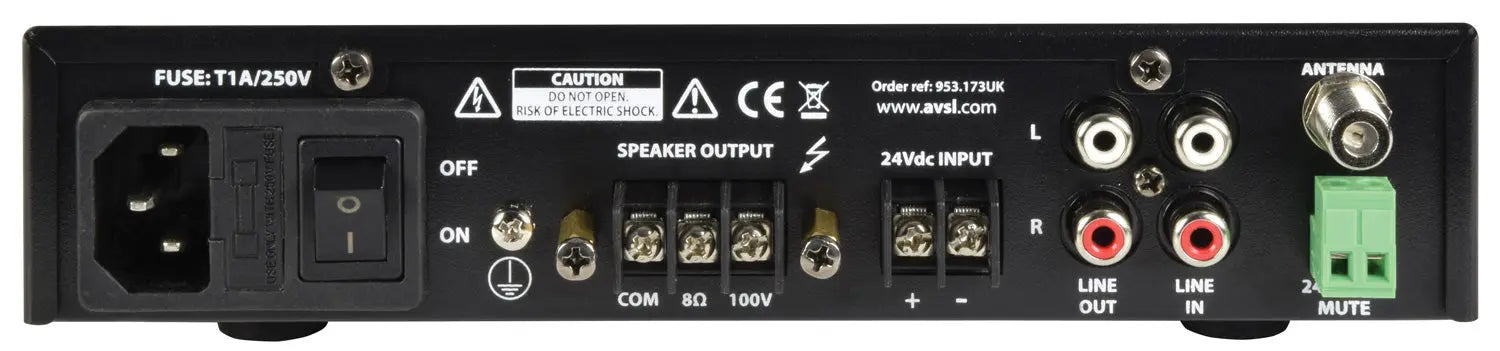

Speaker outputs Screw terminals - 100V / 8 Ohms / Com
DC power 24Vdc screw terminals
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohms (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Bluetooth version 5.0
