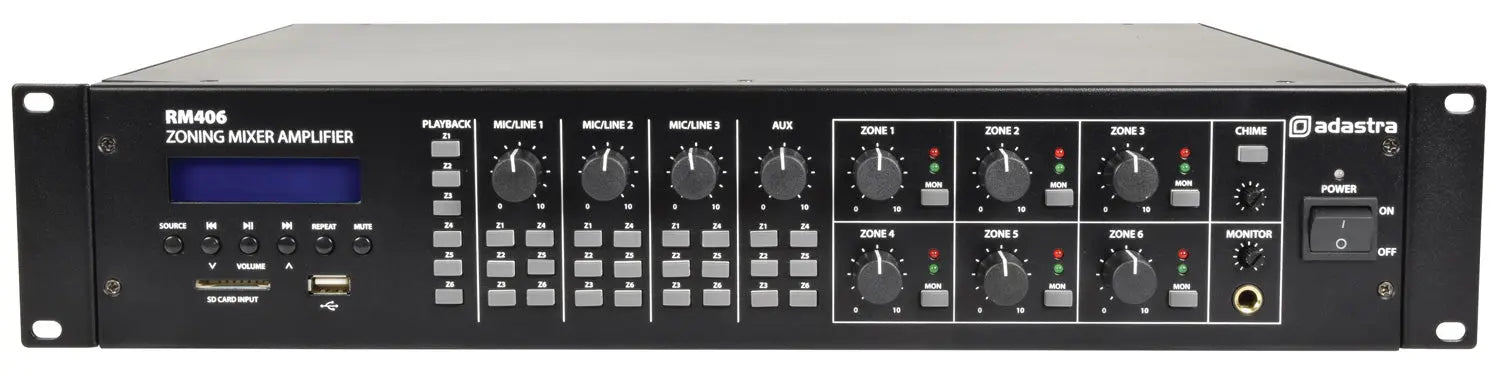

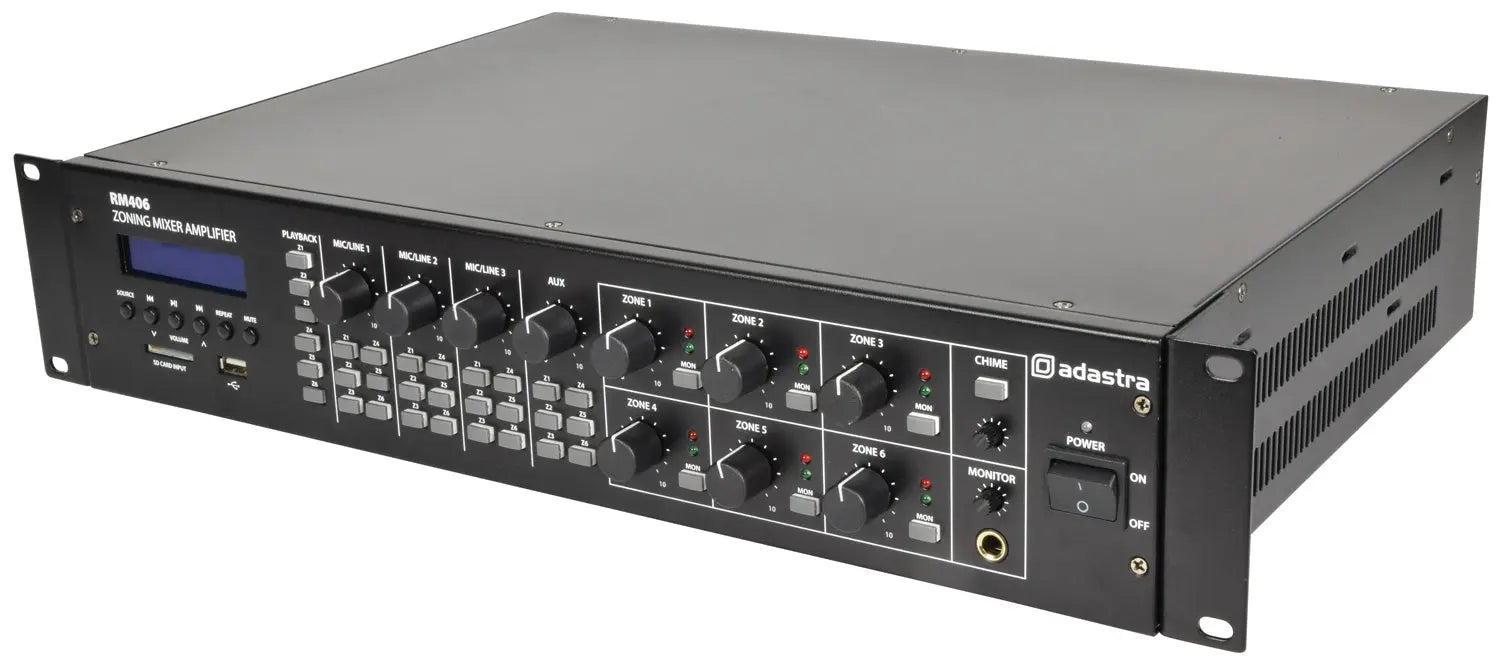

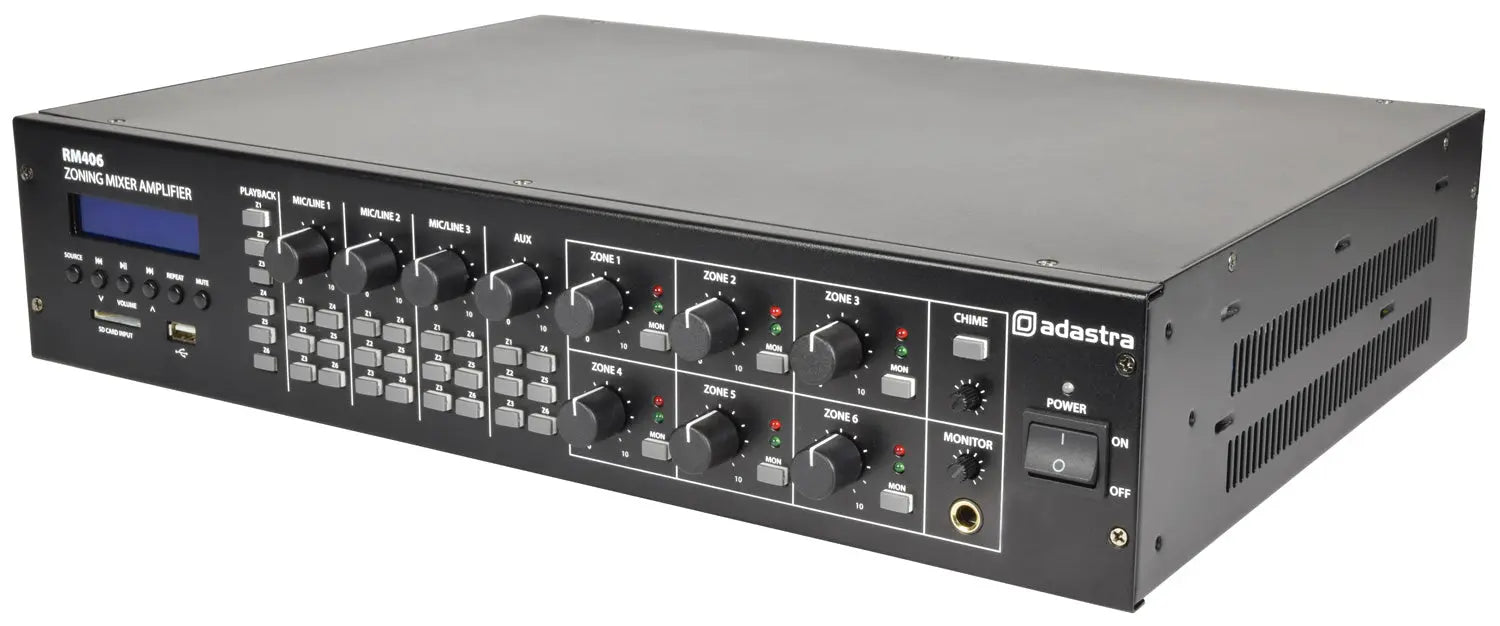

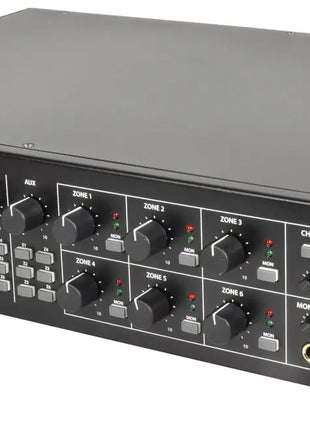

Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player with Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.
Integral USB/SD/FM audio player
100V or 4/8 Ohms operation
6 independent output zones
3 mic/line and 1 auxiliary input
Mic priority and chime functions
Switchable +20V phantom power
24V mute contacts

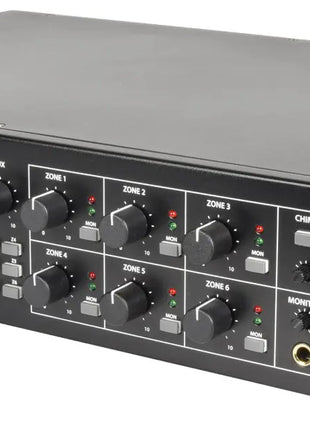

Monitor headphones output

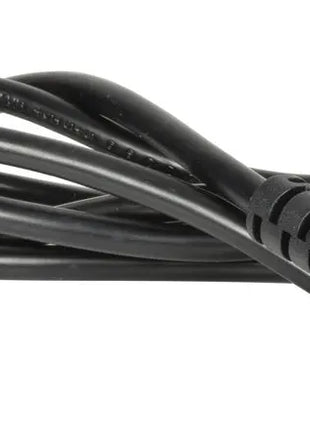

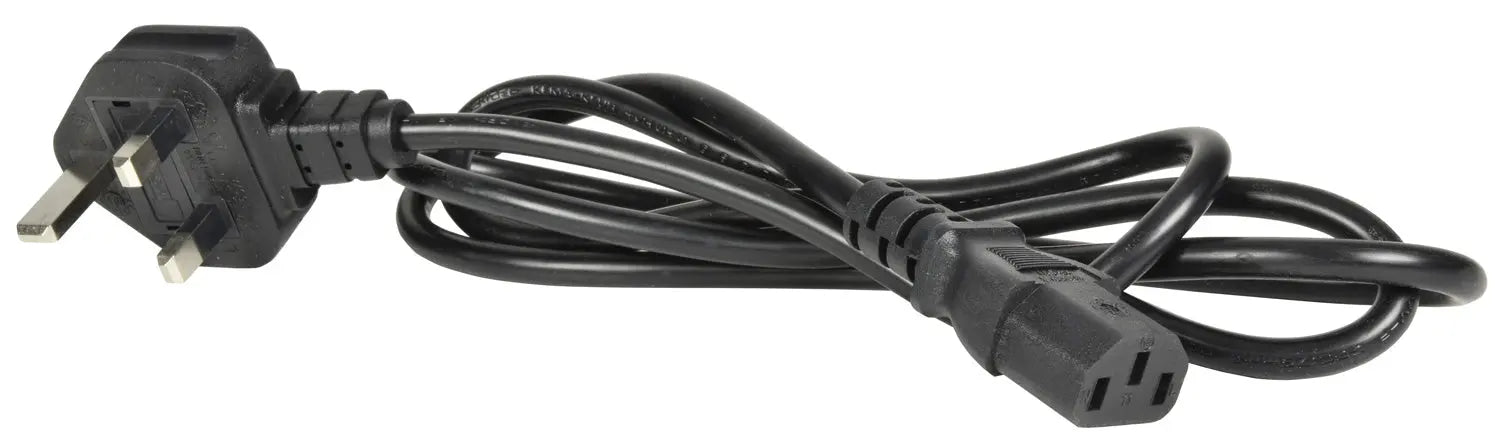

Power supply 170-264Vac, 50Hz (IEC)
Power output 6 x 40W rms
Audio source USB/SD/FM/BT audio player
Amplifier : construction Class D + transformer outputs

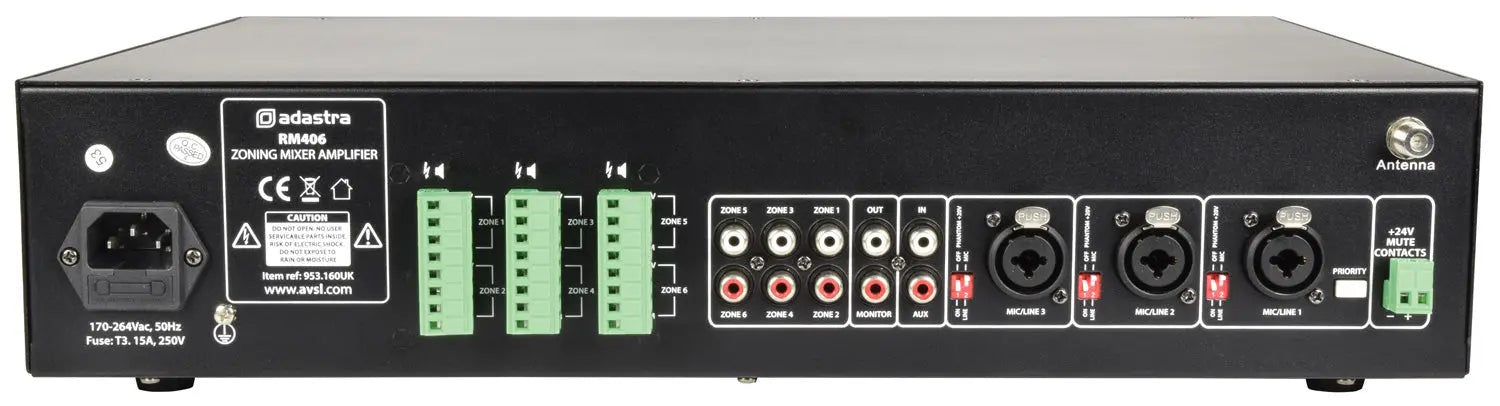

Inputs 3 x mic/line (XLR/jack), auxiliary 2 x RCA
Zone outputs: line 6 x RCA (mono)
Zone outputs: speaker 6 x terminal outputs 100V / 8 Ohms / 4 Ohms / Com
Phantom power +20V switchable to each XLR
Monitor outputs 6.3mm stereo phones, 2 x RCA line
Mute +24V relay contacts
THD <0.76% @ 1kHz
Input impedance 1k Ohms (mic/line)
Input sensitivity -11dB (line), -46dB (mic)
SNR 84dB (line), 82dB (mic)
Bluetooth version 5.0
Frequency response 100Hz - 24kHz
Dimensions 433 x 89 x 302mm
Weight 11kg
