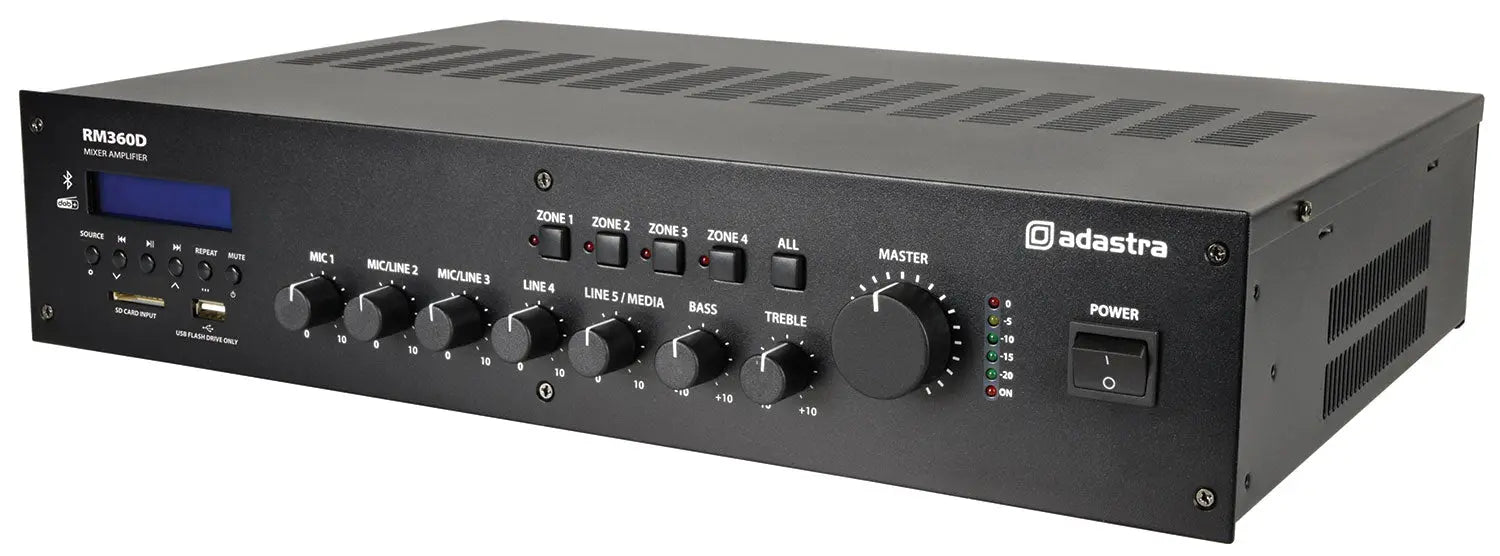

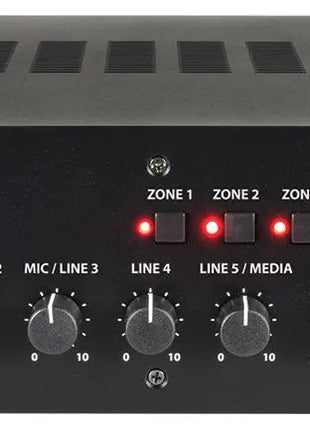

5-channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth® connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. Outputs on screw terminal are via 4 switchable zones with a separate "always on" output for priority alert speakers.
4 switchable 100V outputs and 1 unswitched output
2U 19" rack mountable (rack ears supplied)
XLR input with switchable +20V phantom power
2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
Switchable VOX voiceover feature
Bluetooth receiver with unique serial ID
USB/SD audio player
DAB+/FM radio tuner
Optional 4-16 Ohm output
24V emergency mute contacts
Mains 230Vac or 24Vdc power option
Power supply 170-264Vac, 50Hz (IEC)
DC power 24Vdc (screw terminals)
Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced) -53dBV
Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
Input impedance : mic 1 5k Ohms
Input impedance : inputs 2-5 1k Ohms
Line output RCA
Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass 100Hz ±10dB
Equaliser : treble 10kHz ±10dB
Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
Phantom power +20V (mic 1 XLR, switchable)
Audio source DAB+/FM tuner, USB/SD player, Bluetooth receiver
Emergency control 24V contacts - mute all except Mic.1 when triggered
Bluetooth version 5.0
THD <1.0%
Speaker outputs 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
