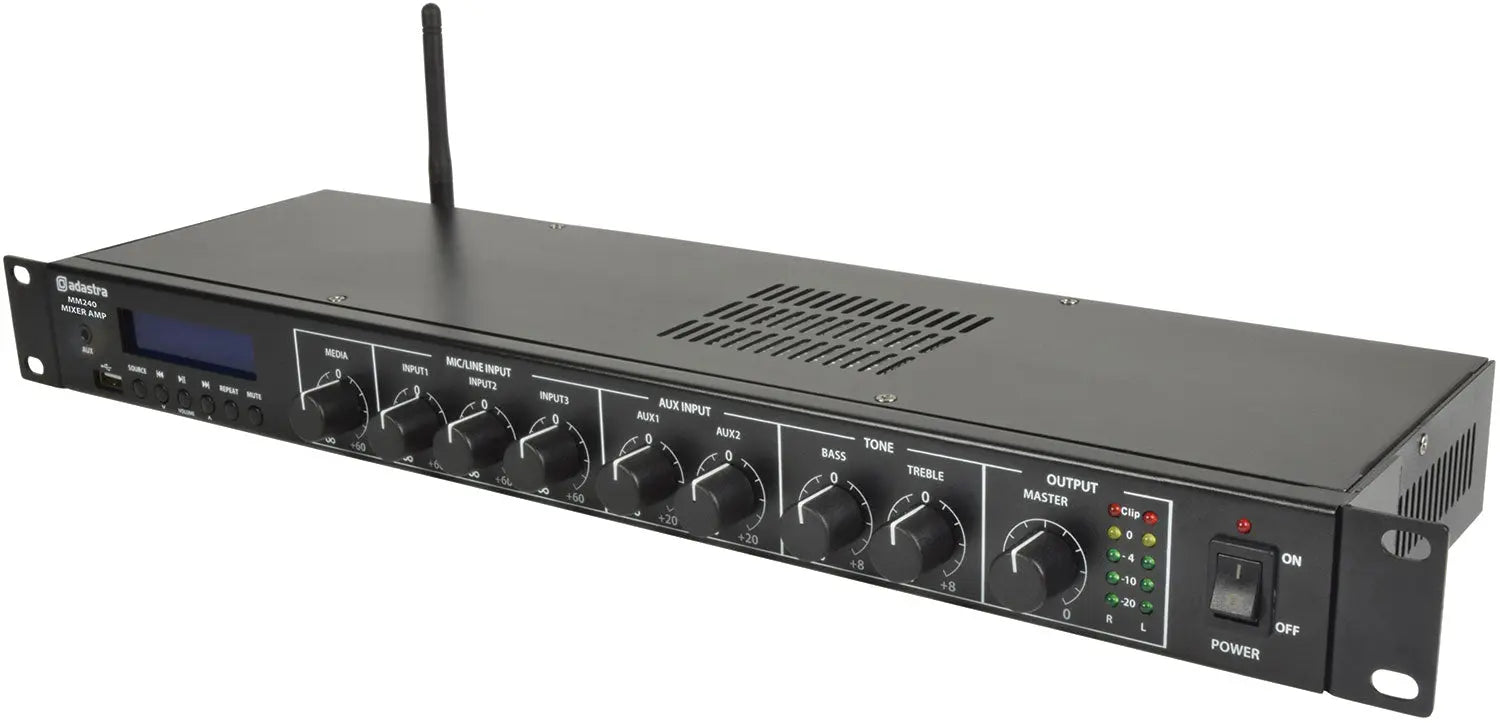

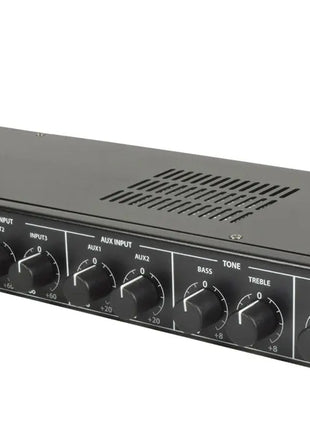

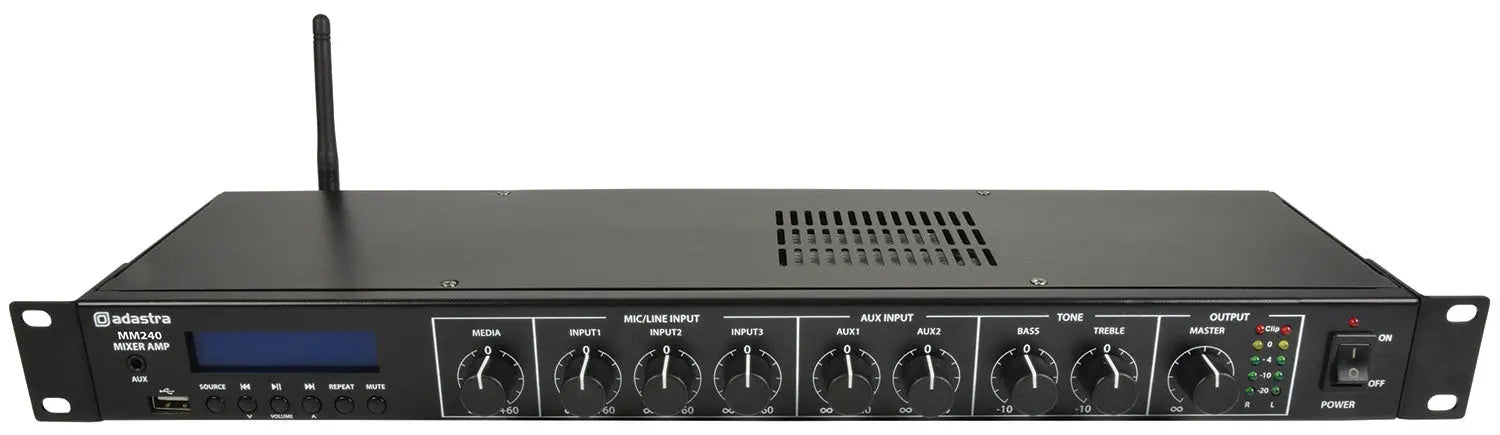

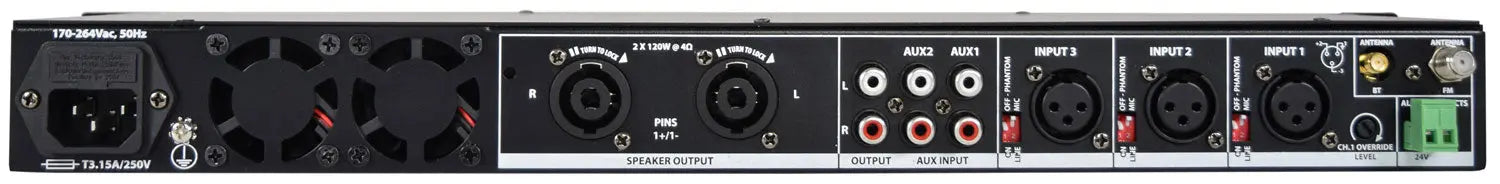

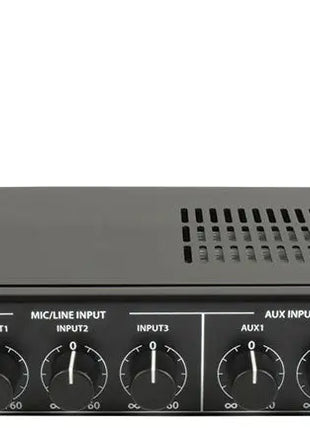

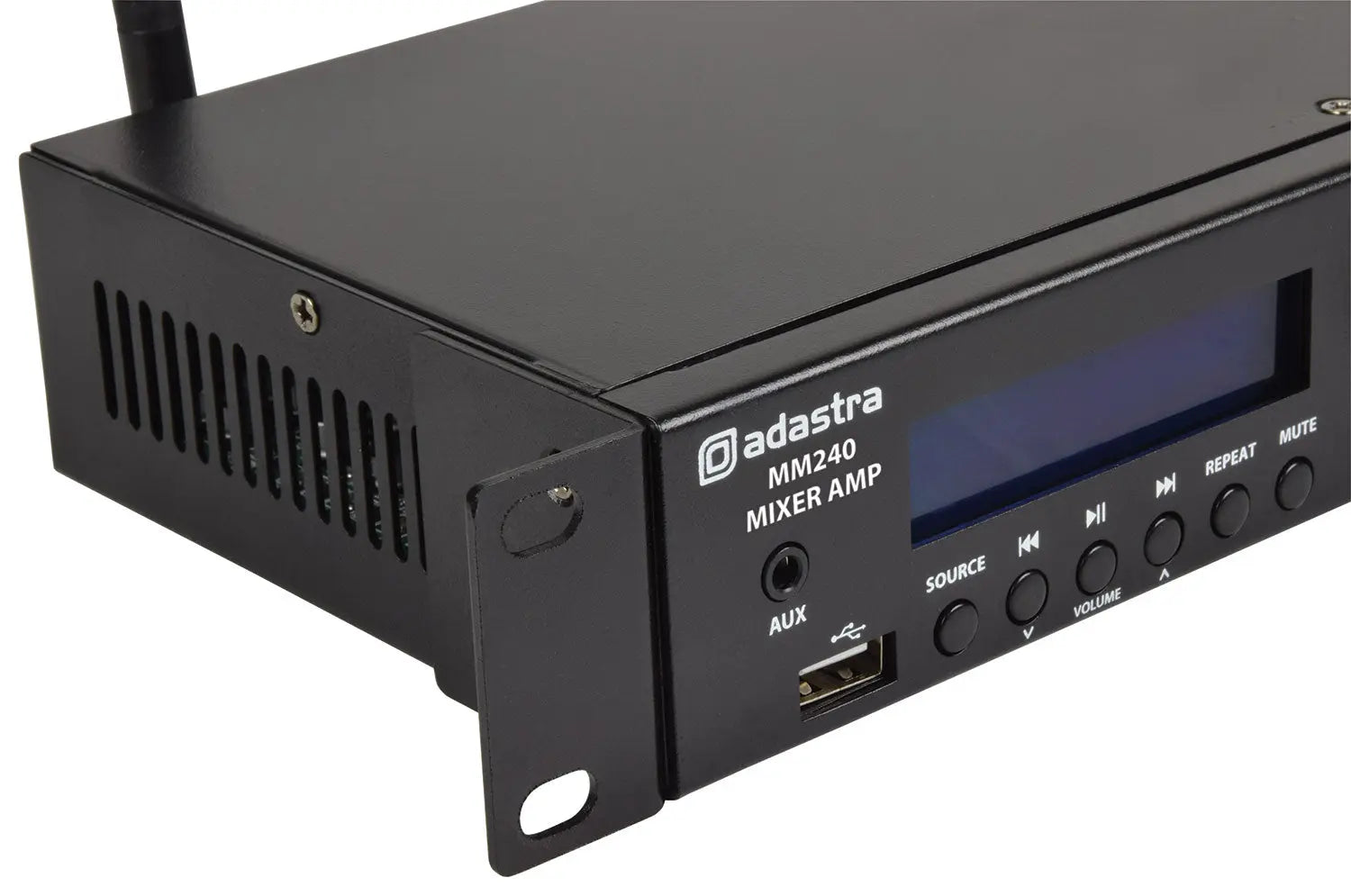

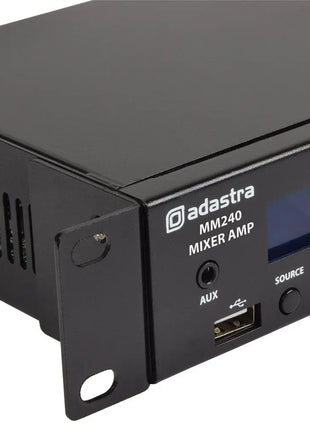

Compact 1U mixer-amp featuring a built-in media player with DAB+ and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo line output. Media player operating modes include 3.5mm Aux input, USB audio player, DAB+/FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right speaker outputs are connected using standard Speakon leads. Connect 2 or 4 speakers for a complete music and voice installation or mobile PA system for functions, conferences and fitness classes.
DAB+/FM radio tuner
Bluetooth receiver with unique serial ID
USB audio player
Switchable +20V phantom power
Variable priority muting for channel 1
24V emergency mute contacts
Power supply 100-240Vac, 50/60Hz (IEC)
Fuse T3.15A 250V
Inputs : Mic/Line 3 x XLR (bal/unbal)
Inputs : Aux 2 x L+R RCA
Input : line 3.5mm jack to media player
Audio source DAB+/FM tuner, USB player, Bluetooth receiver
Line output L+R RCA
Speaker outputs L+R SPK connector
Emergency control 24V contacts mute all except channel 1
Phantom power +20V (switchable channels 1-3)
Controls Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
Rear panel controls Priority muting level, mic/line and phantom DIP switches
Input impedance 2.2k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic 20Hz - 18kHz
Frequency response : line 14Hz - 20kHz
Frequency response : aux 10Hz - 23kHz
Input sensitivity : mic/line -45dBV
Input sensitivity : aux/line -10dBV
Signal to noise ratio : mic 55dB
Signal to noise ratio : aux/line 60dB
Output power : 4 Ohms 2 x 120Wrms
Dimensions
