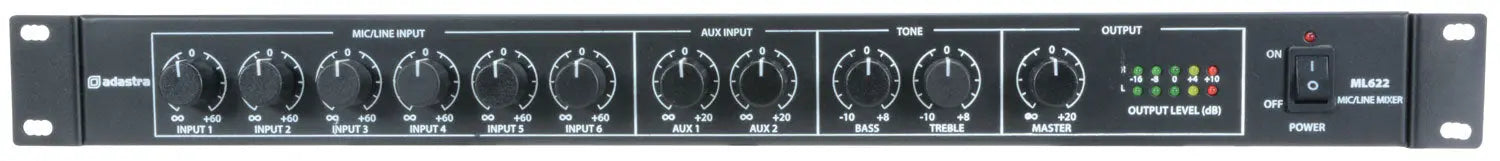

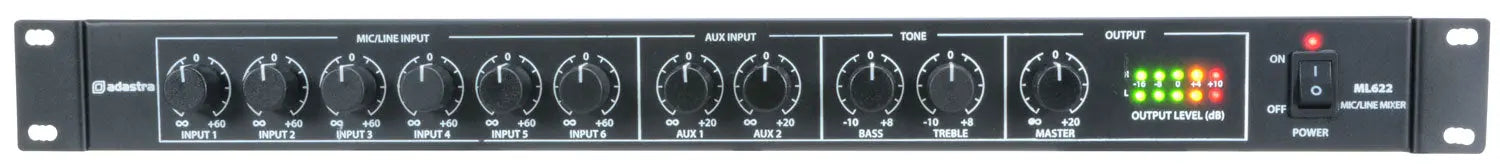

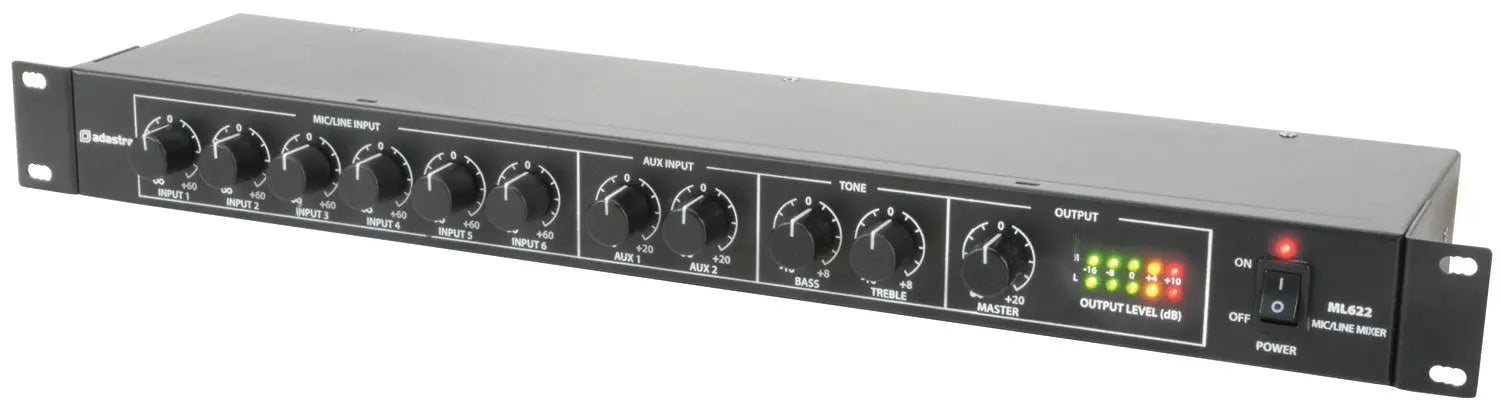

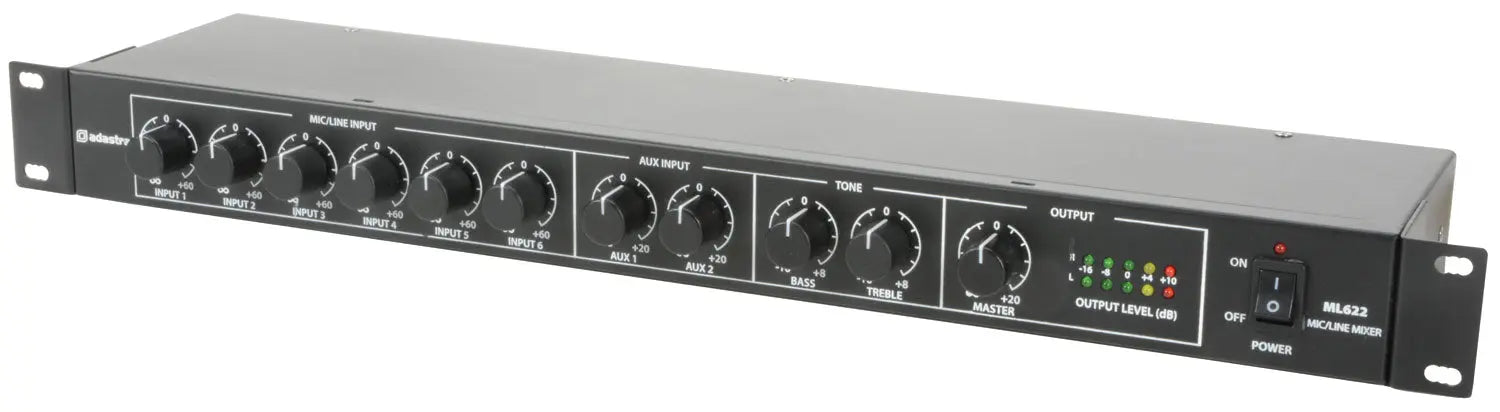

Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls. Designed as a master or expansion mixer for installed sound systems and conferences.
24Vdc power option
6 switchable mic or line inputs
2 stereo aux inputs
Individually switchable phantom power
Power supply 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
Fuse T1AL 250V (mains) or F500mA (24Vdc)
Inputs : Mic/Line 6 x balanced XLR
Inputs : Aux 2 x L+R RCA

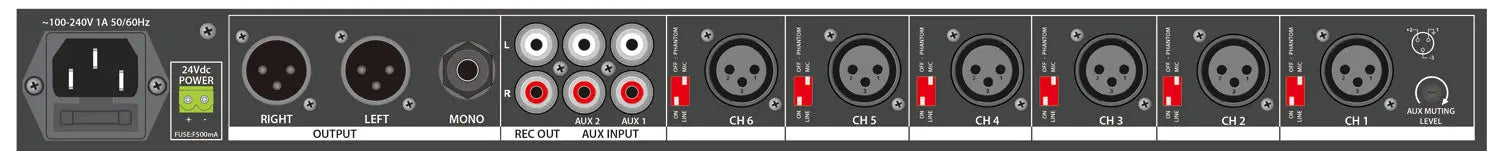

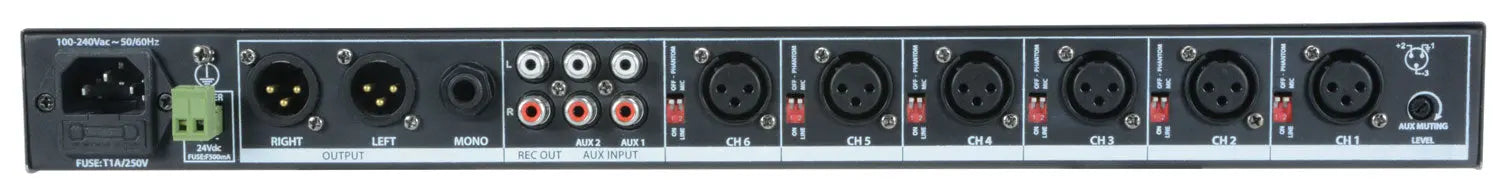

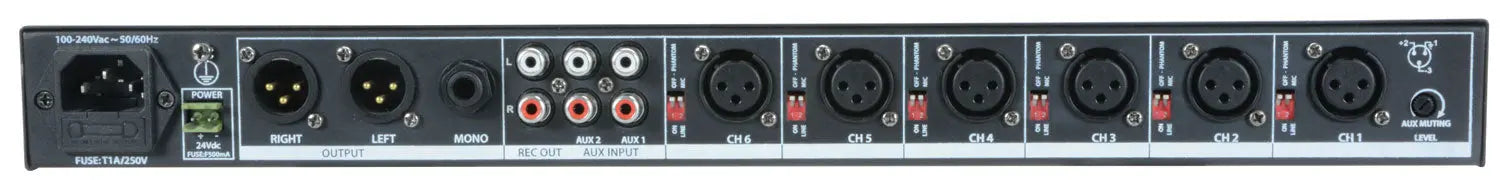

Outputs L+R XLR, mono 6.3mm jack, L+R RCA (REC)

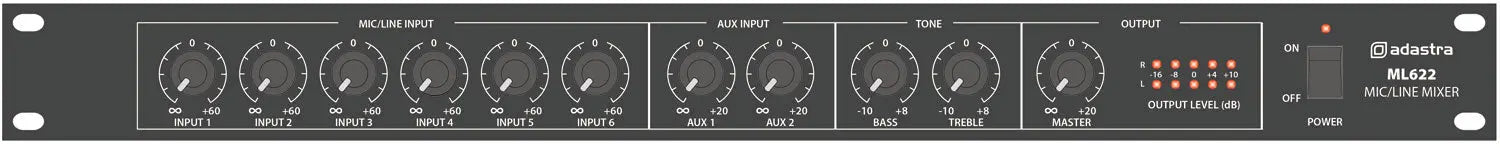

Controls 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
Input impedance 3.3k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic 20Hz - 18kHz
Frequency response : line 14Hz - 20kHz
Frequency response : aux 10Hz - 23kHz
Input sensitivity : mic -45dBV
Input sensitivity : aux/line -10dBV
Signal to noise ratio : mic 55dB
Signal to noise ratio : aux/line 60dB
THD 0.05%
Dimensions 482 x 130 x 44mm
Weight 1.43kg
Phantom power +20Vdc (switchable)
