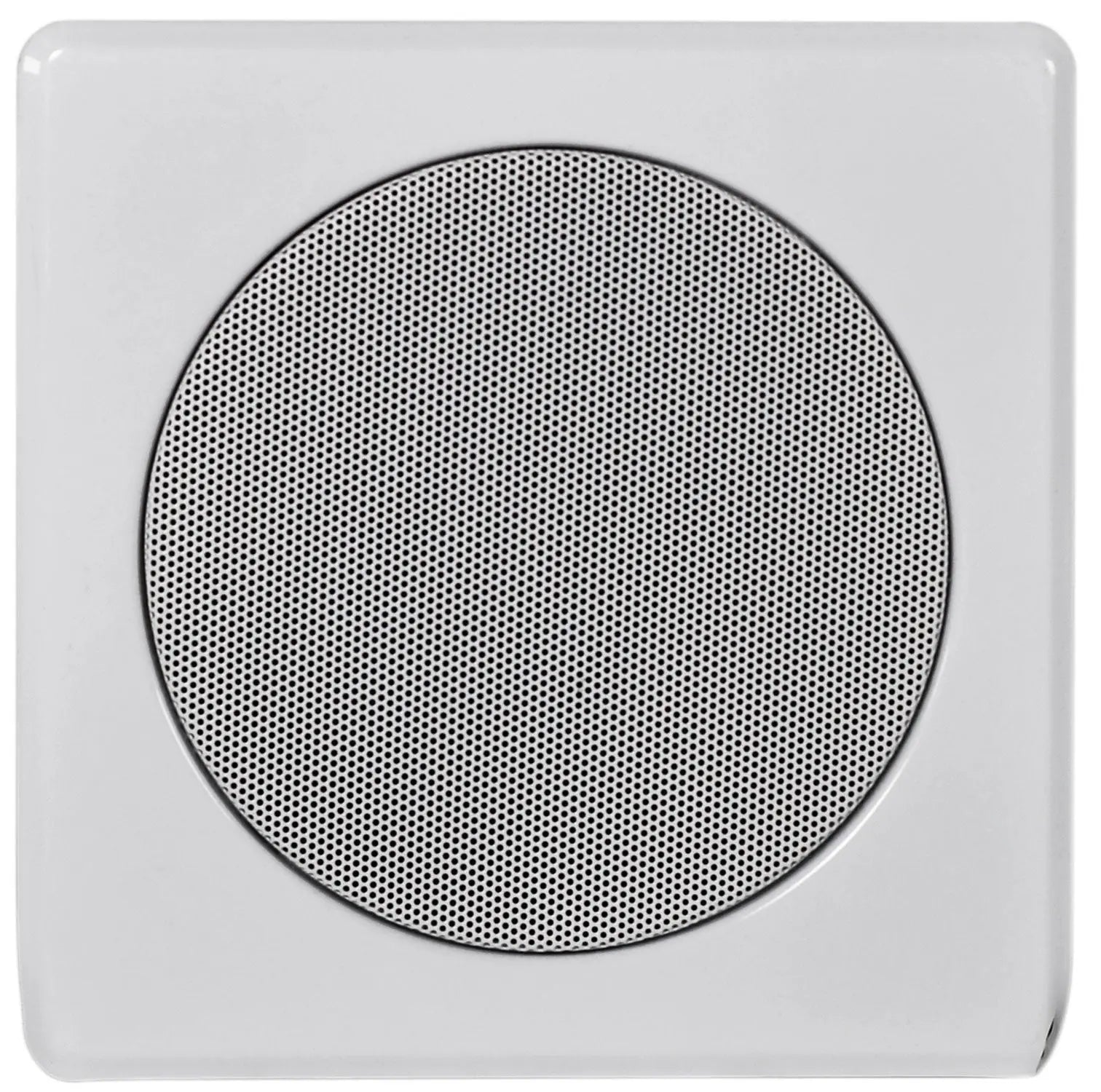

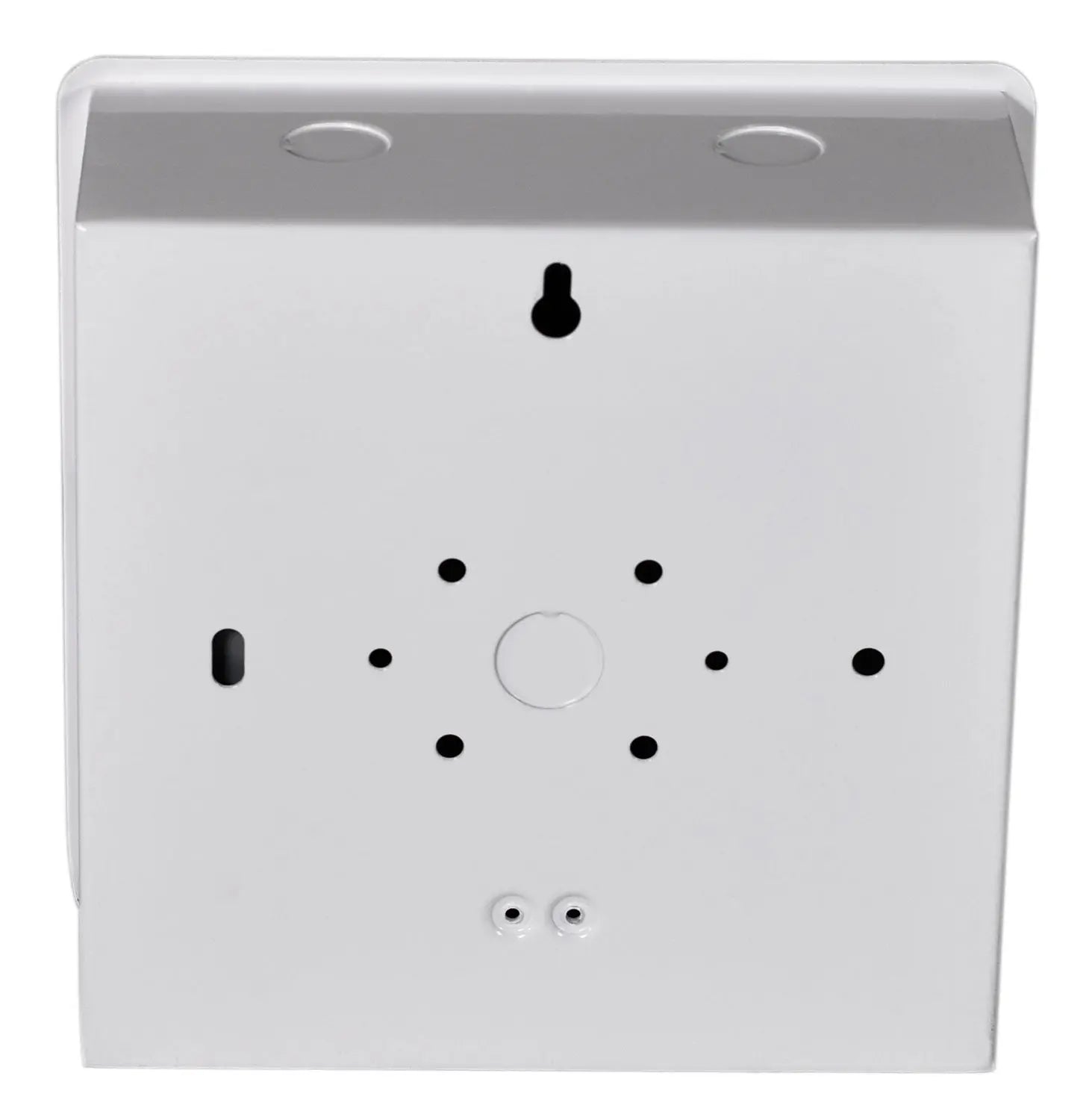

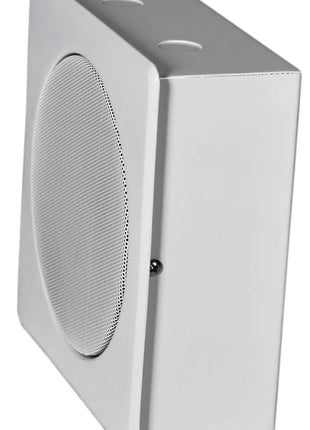

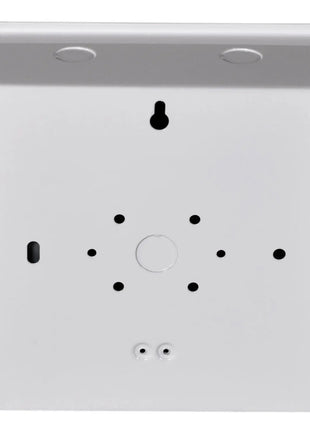

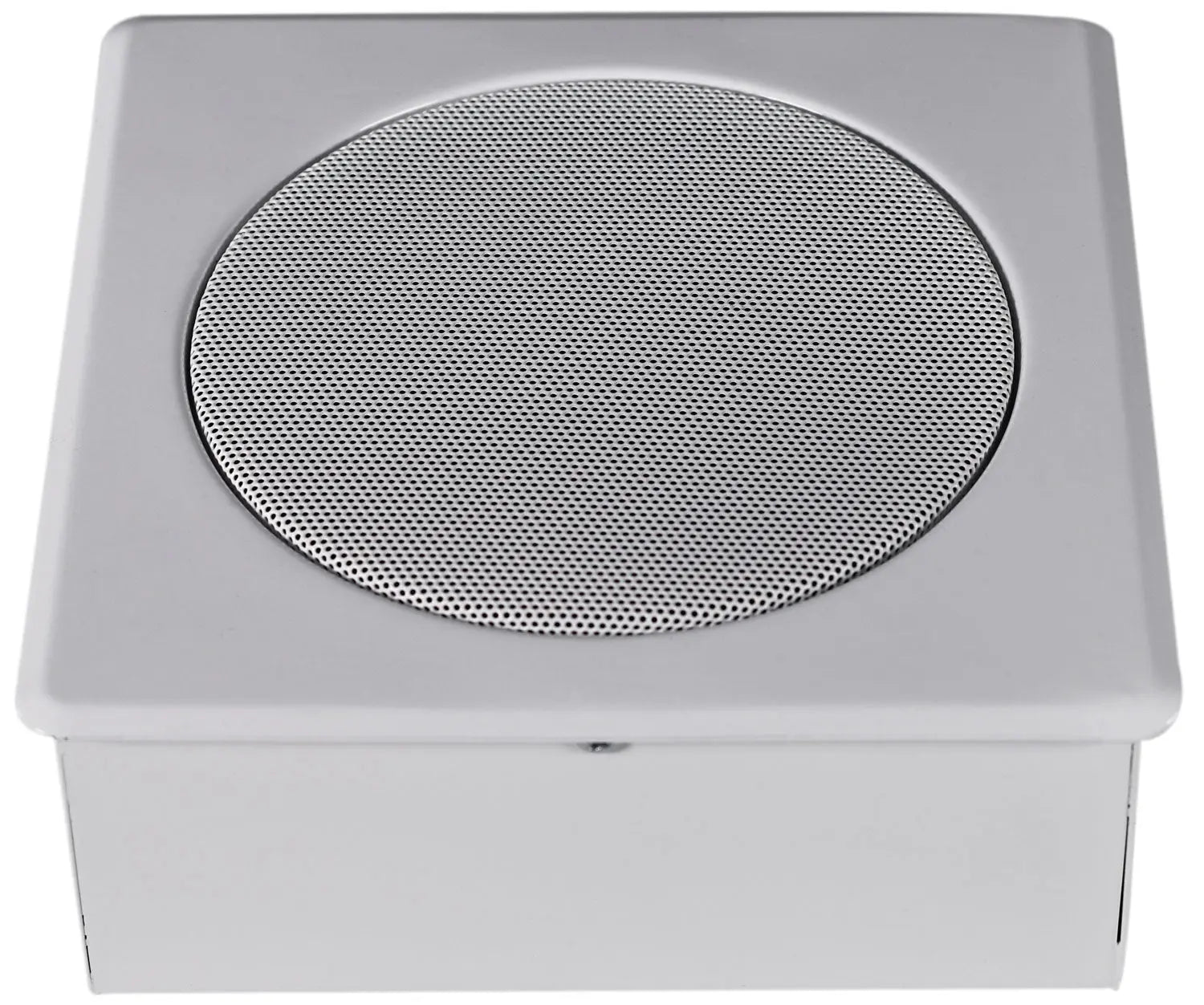

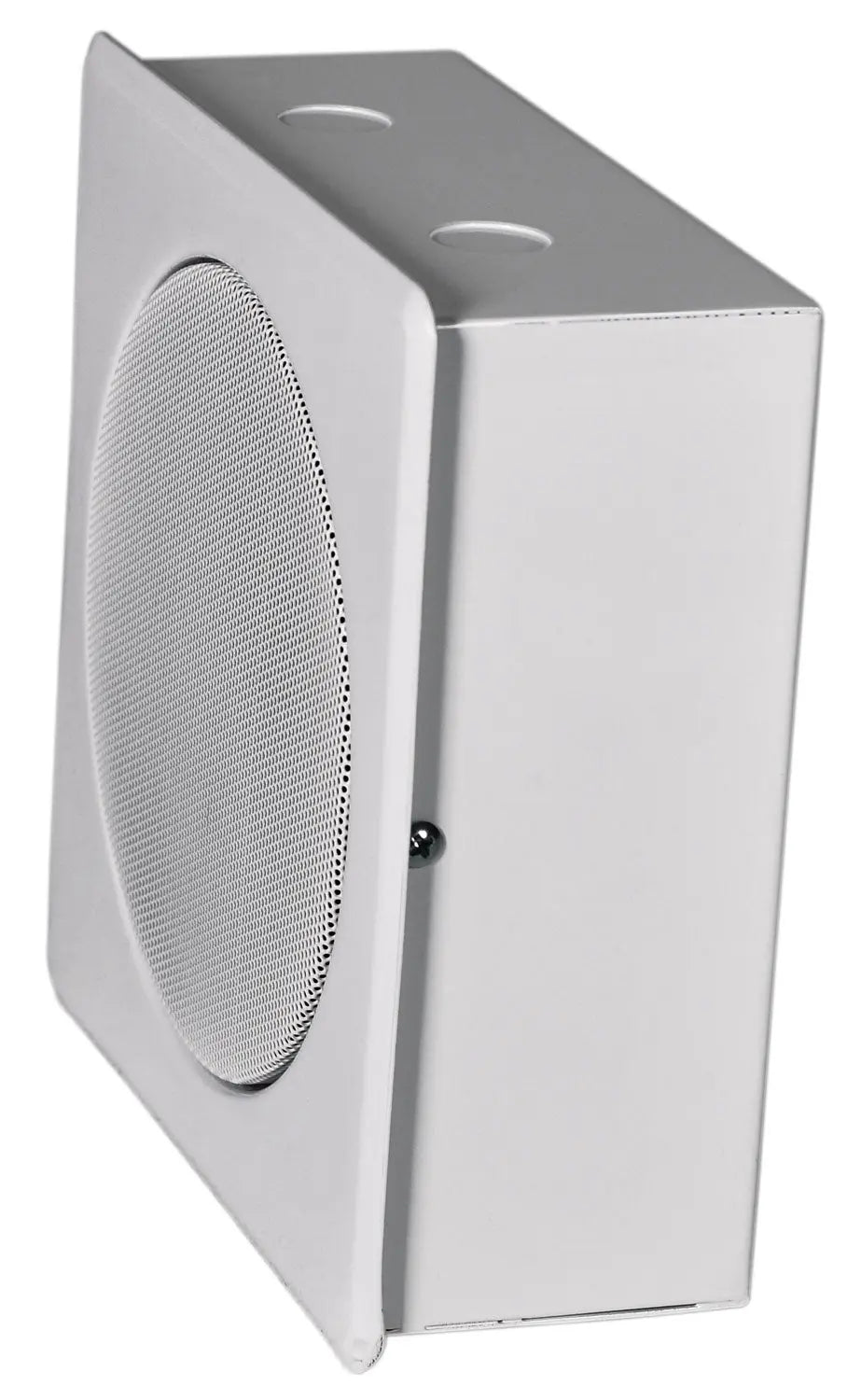

A heavy duty fire-rated wall speaker for voice announcements and background sound duties. The FW-5V has a 5.25" dual cone speaker mounted into a powder-coated steel cabinet with punched holes at the rear for hanging, 20mm knock-outs for cable glands and a detachable front baffle which extends as part of the basket for the speaker. Internally, the rear of the speaker holds a 100V transformer and a ceramic terminal block with thermal fuse for EN54-24 compliance in fire-rated installations. Overall, a robust workhorse speaker for quick installation in voice evacuation and other public address systems.
Heavy duty steel cabinet with detachable front
EN54-24 compliant for fire evacuation systems
4 x 100V volume tappings
100V line tappings 0.75, 1.5, 3, 6W
Construction Powder-coated steel cabinet & grille
Driver 5.25" reinforced paper dual cone
Circuit protection Thermal fuse
Connection Ceramic screw terminal block
SPL @ 1W/1m 92dB
SPL max. 99dB
Frequency response 120Hz - 10kHz
Dimensions 185 x 185 x 70mm
Weight 1.334kg
