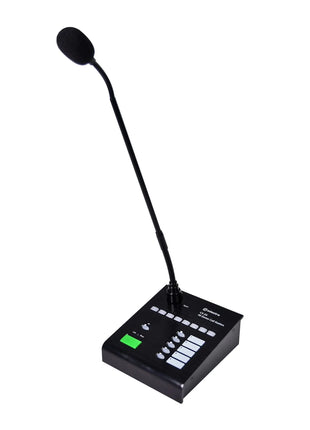

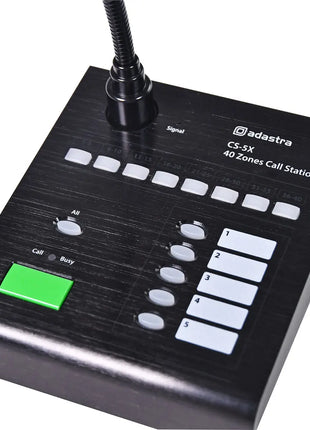

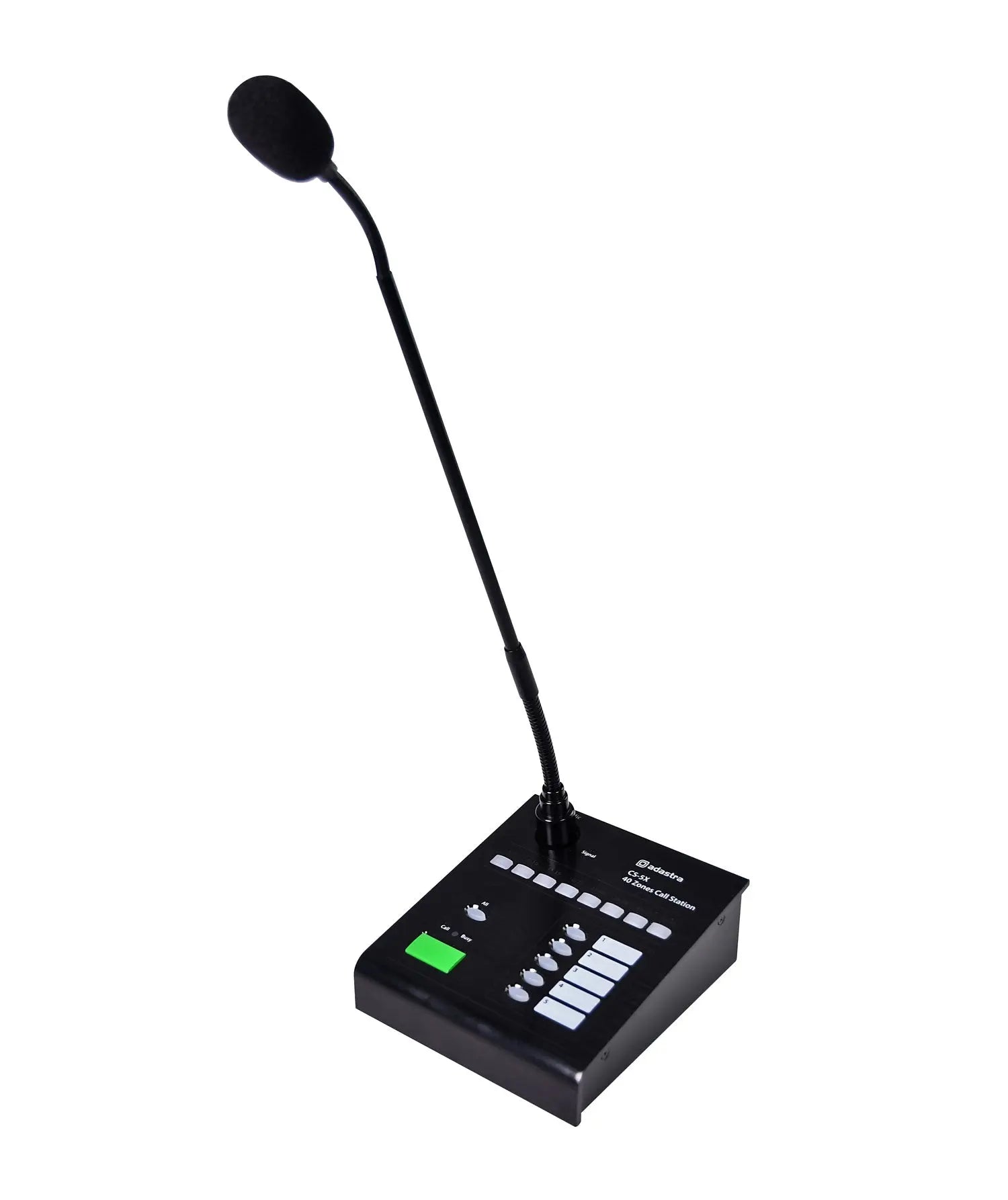

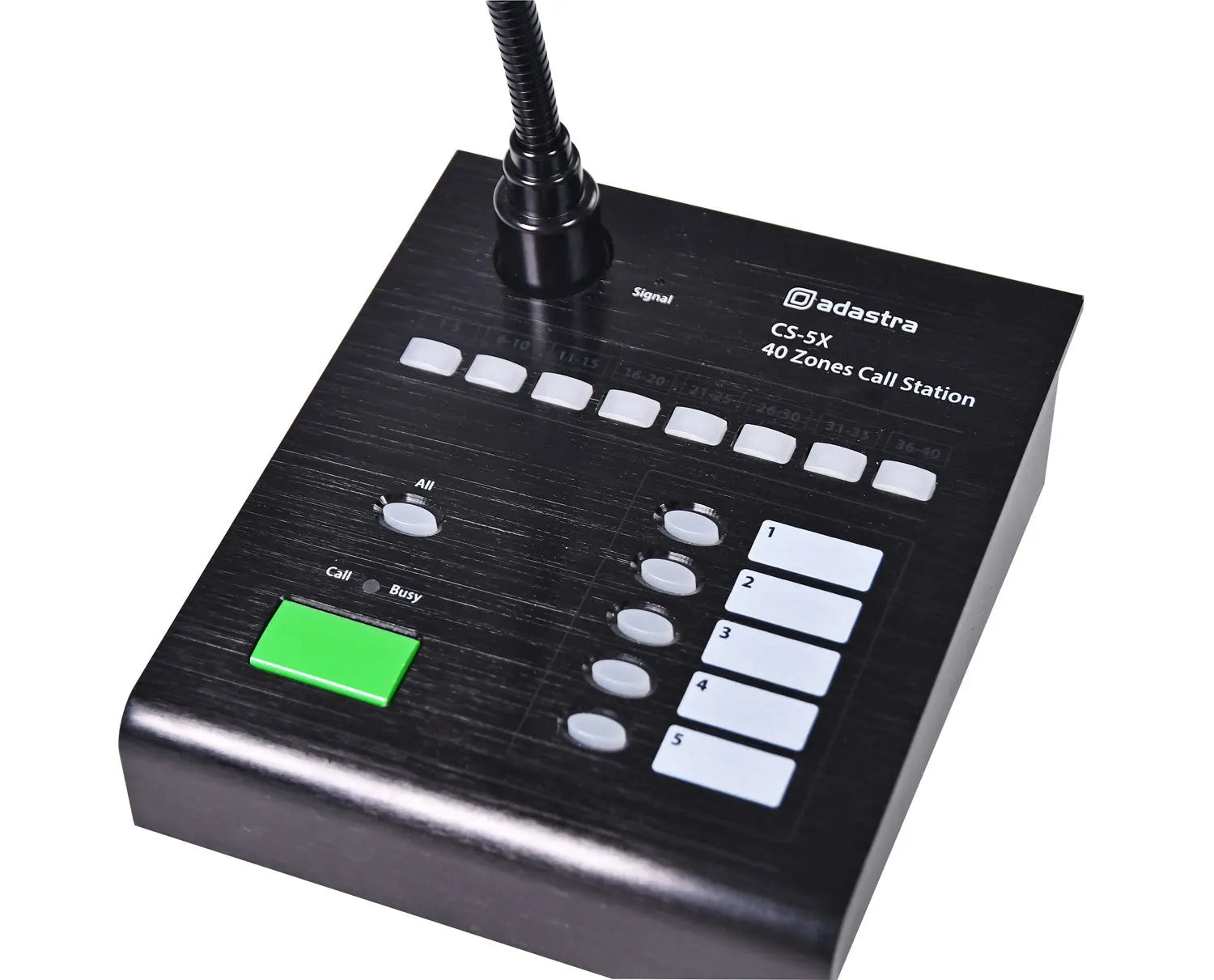

A paging microphone with call station base, to be used with the RX45 audio matrix to create a comprehensive paging system. Zone assign buttons enable intuitive calling to any combination of up to 5 zones of the RX45 unit, with the Page button accordingly muting audio playback in those areas for clear vocal announcements. There is a choice of 8 paging chimes, and an AUX audio input for pre-recorded messages and alerts. A further row of Group buttons enables the user to assign paging for up to 8 different RX45 units that are linked as an expanded system, allowing up to 40 distinct pageable zones.
Custom designed for the RX45 Audio matrix
Individual and multiple paging possible up to 40 zones
Power and signal connection via the supplied RJ45 cable
Optional 24Vdc in for connection up to 1km from RX45
Power supply 24Vdc, 500mA from RJ45 or optional adaptor
Max. connection length 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
Capsule Back electret condenser
Polar pattern Cardioid
Controls Aux/Mic/Chime levels, chime DIP switches, group/zone/page buttons

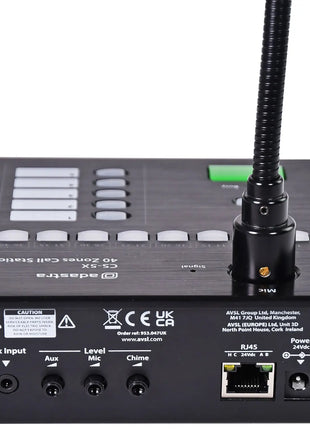

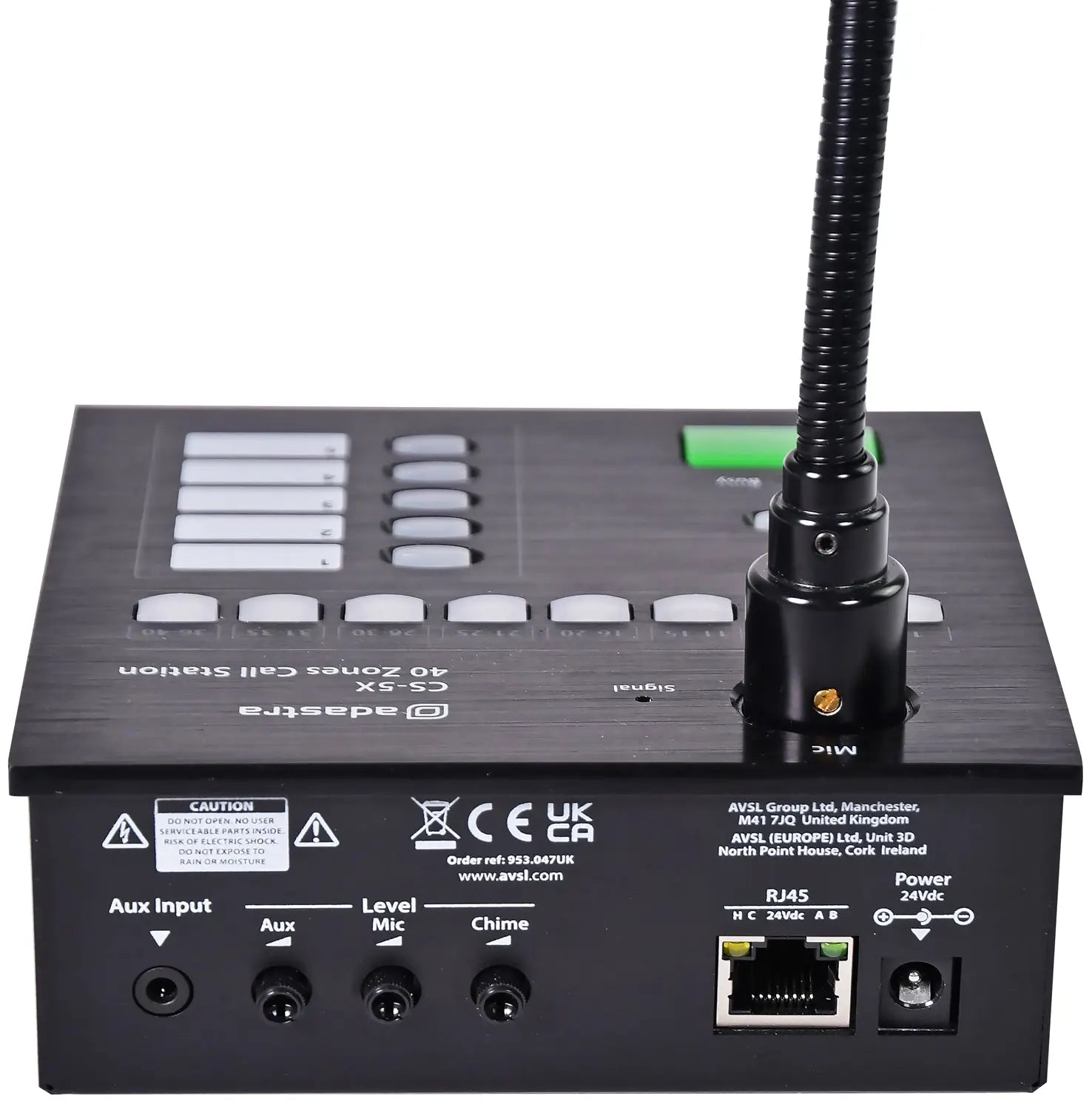

Connectors XLR, RJ45 (to RX45), 24Vdc power jack, 3.5mm aux in
Frequency response : -3dB 150Hz - 20kHz
Input level Mic: -46dBV, Aux: -10dBV
Input impedance Mic: 600 Ohms, Aux: 50k Ohms
Output level 10dBV
Output impedance : balanced 600 ohms
S/N ratio -60dB (all channels selected)
Interface RS-485 control
Zone assign 5 zones per RX45, any combination across 8 Group IDs
Dimensions 450 x 140 x 125mm
Weight 653g
