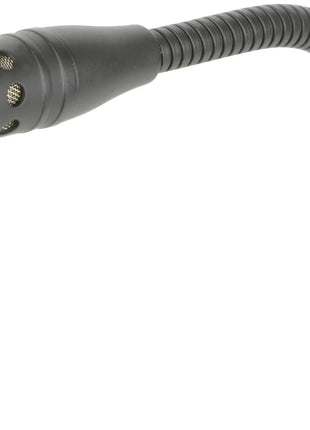

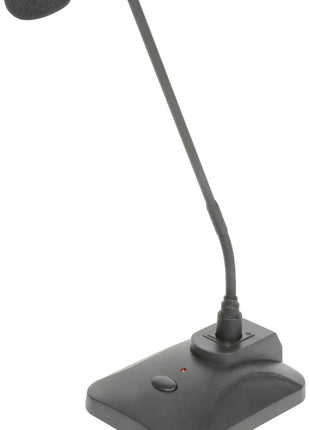

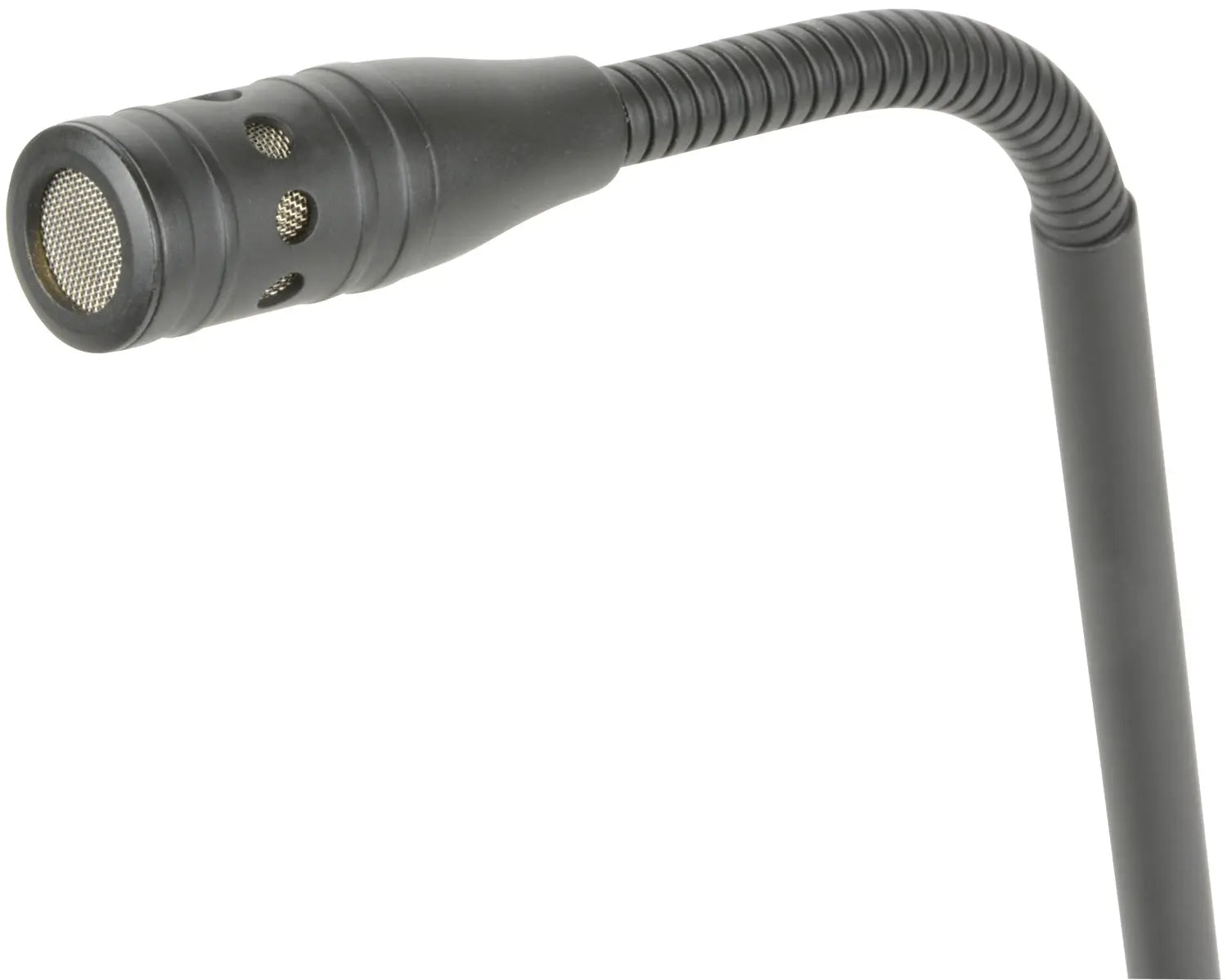

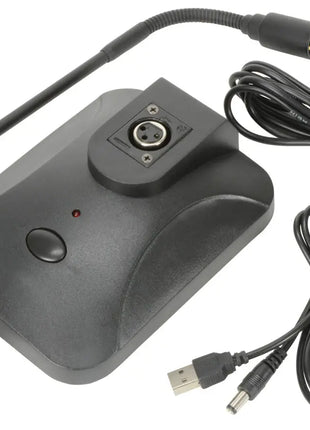

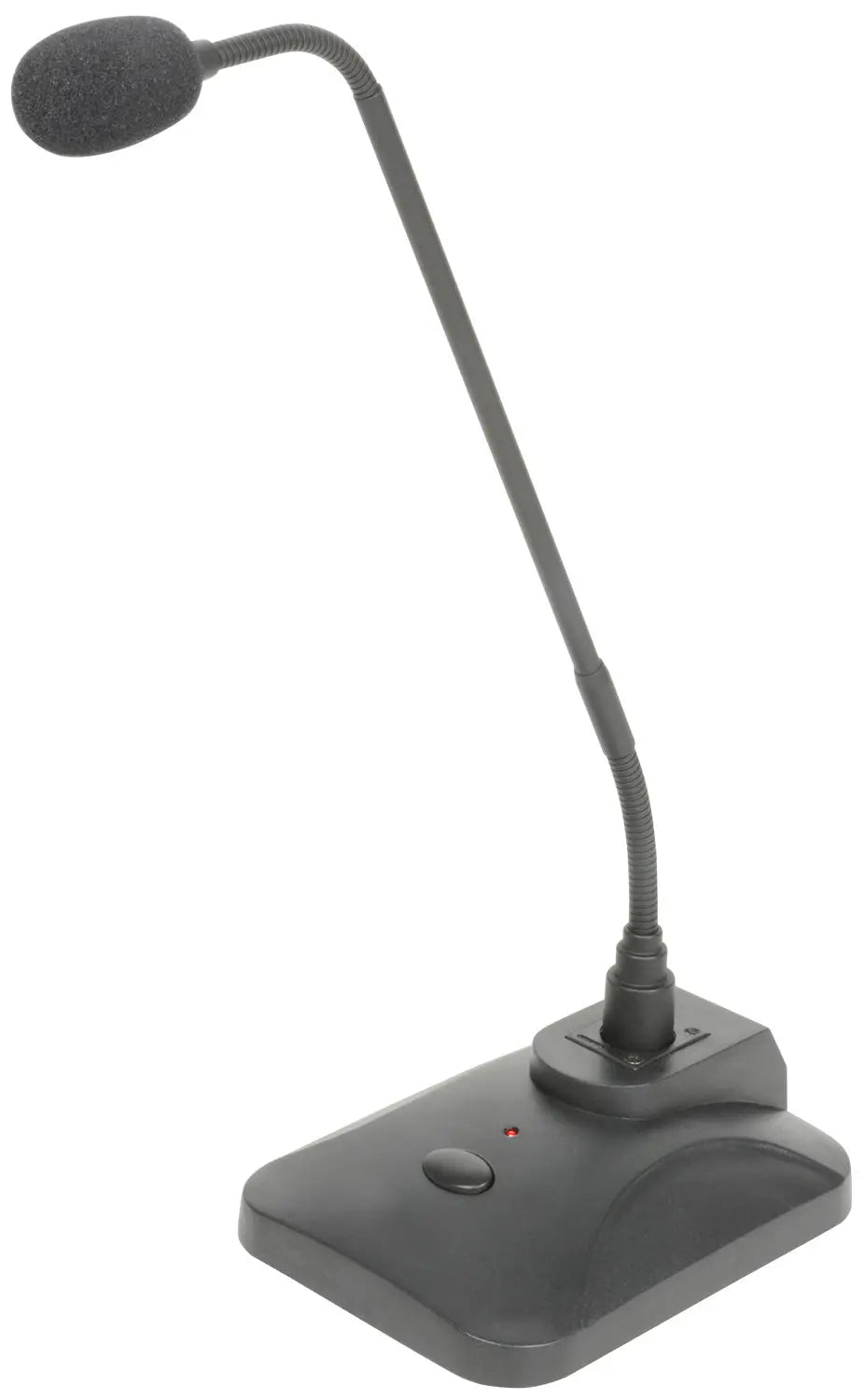

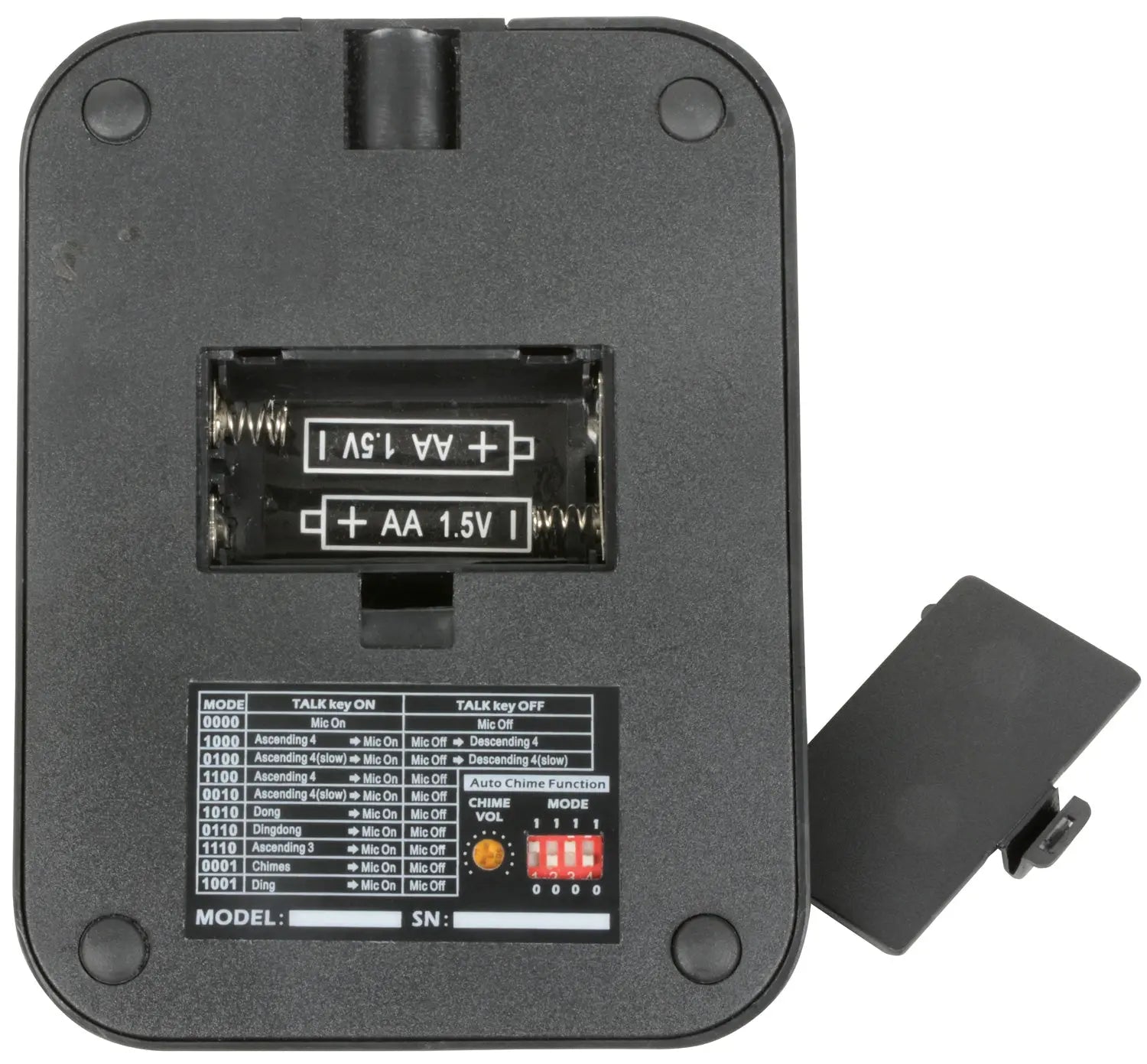

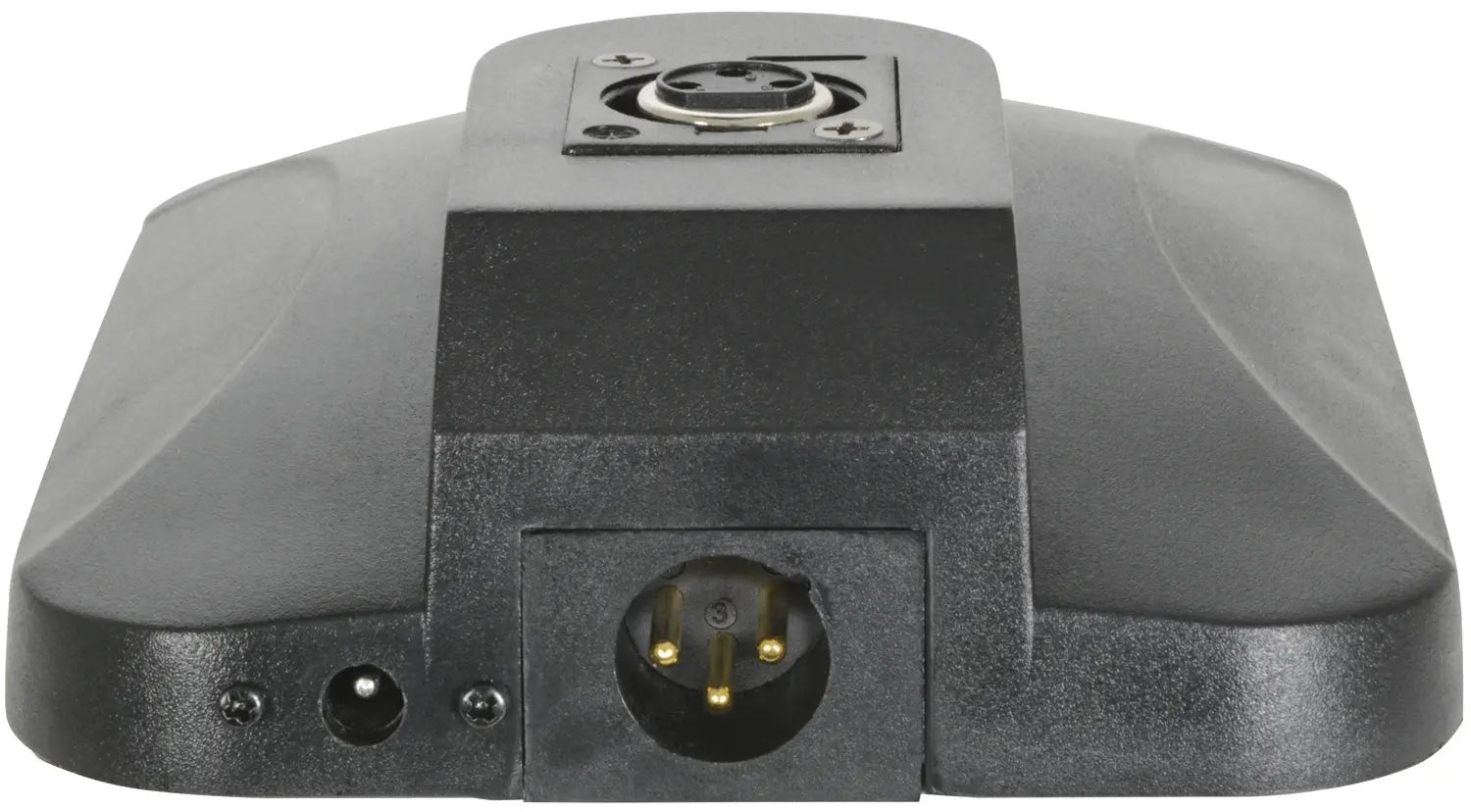

A gooseneck condenser microphone with selectable chime function. Microphone connection to the base is via XLR and output is on XLR at the rear. Power is provided to the microphone capsule either from 2 x AA batteries in the base or from 5Vdc via the supplied USB lead. The base is also home to a latching paging button on top and a chime section on the underside. DIP switches offer a selection of chime settings, governed by a rotary volume control. Designed for remote paging and announcements.
10 selectable chime settings

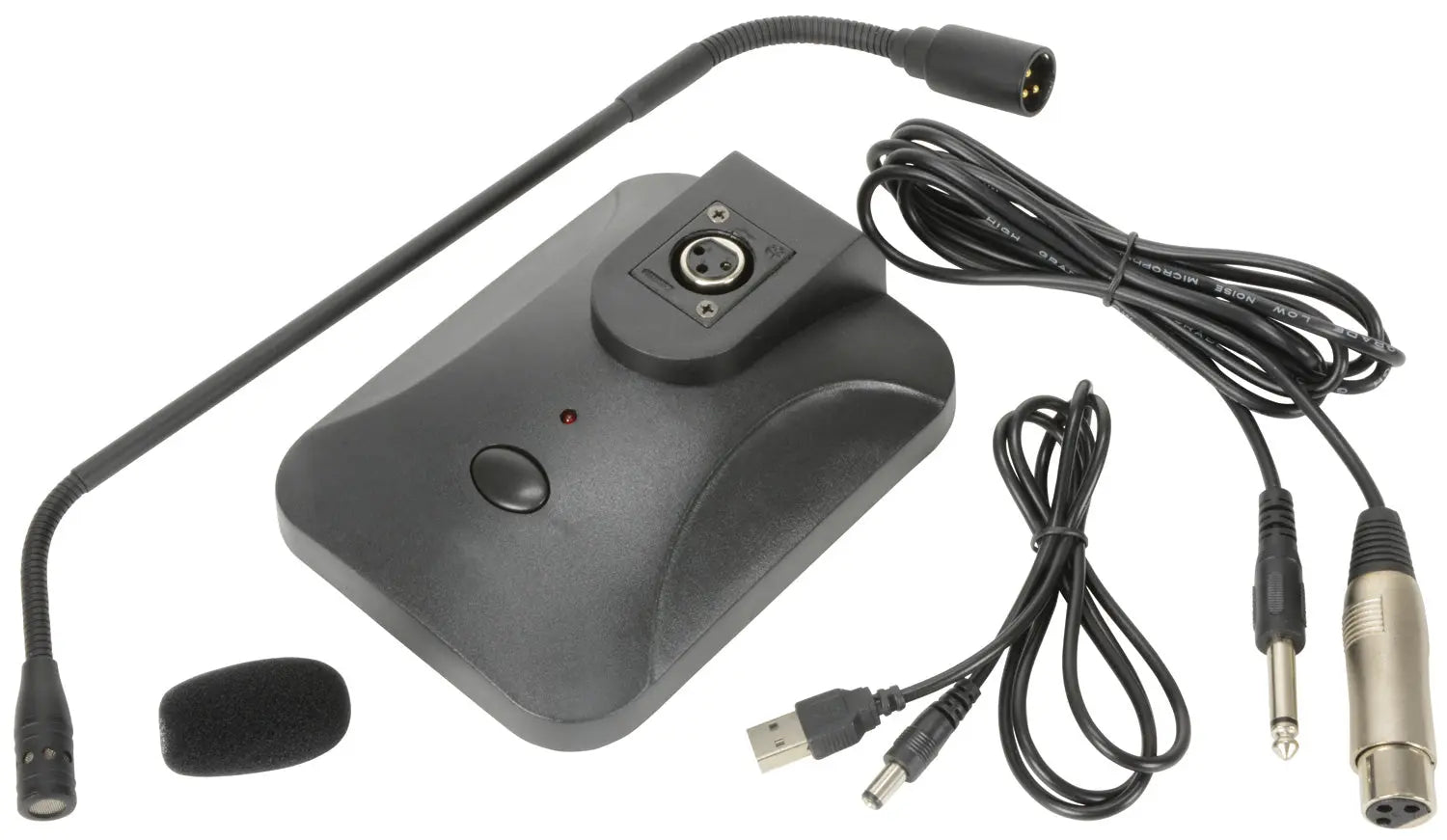

Supplied with USB power lead
Supplied with XLR to 6.3mm jack lead
Lead length XLR-jack 2.2m, USB 1.0m
Power supply 5Vdc (USB lead supplied) or 2 x AA batteries (optional)
Capsule Electret condenser

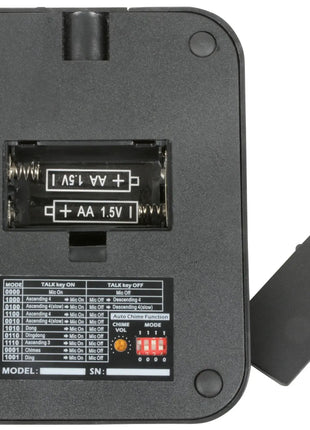

Chime function 10 DIP switch settings (including off)
Polar pattern Cardioid
Sensitivity -46dB (±2dB)
Frequency response 50Hz - 20kHz
Impedance 680 Ohms
Dimensions 445 x 150 x 112mm
Weight 518g (inc. base)

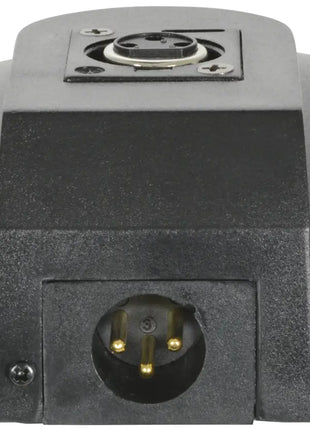

Connection XLR output, DC5521 jack (power)
