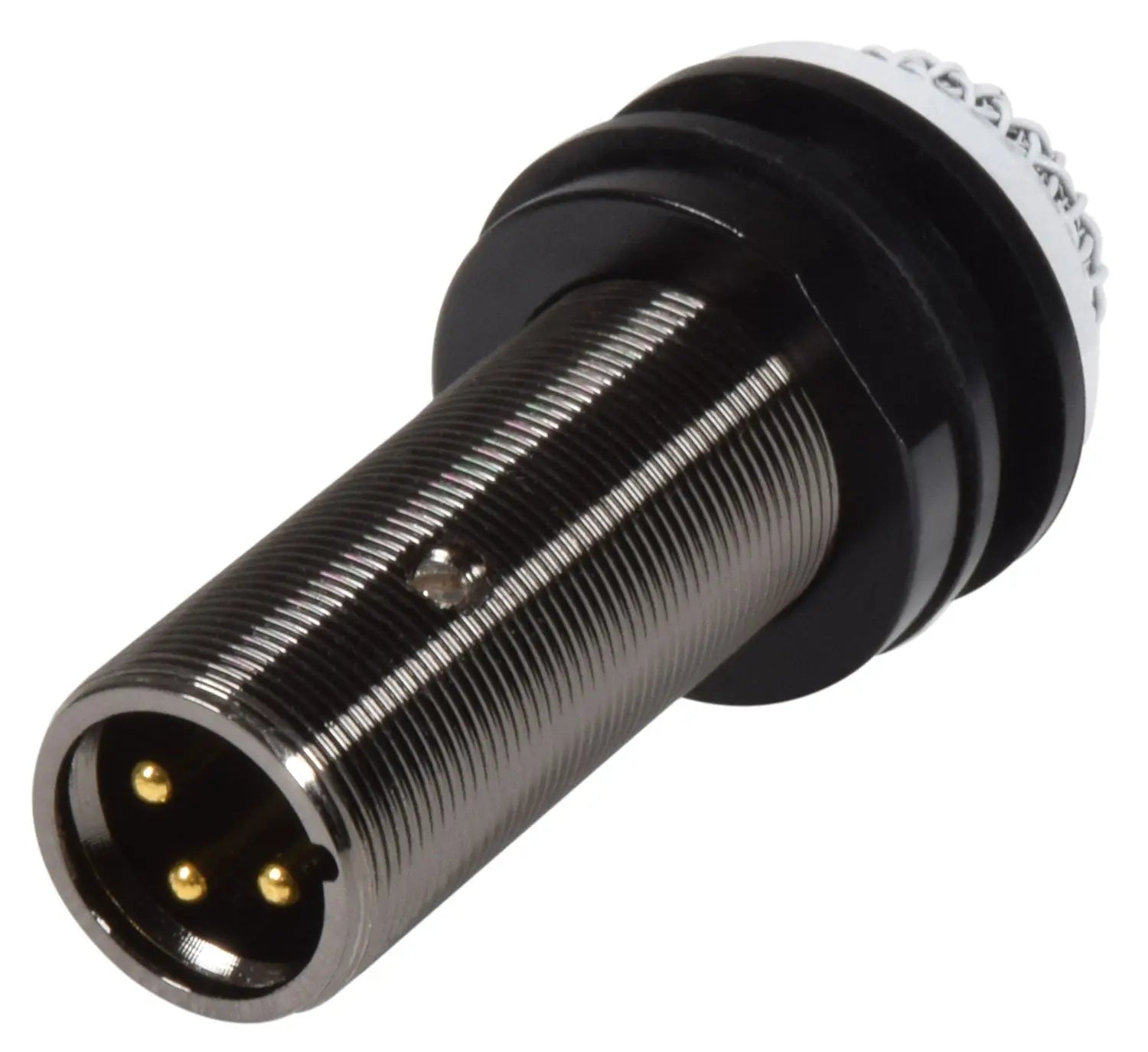

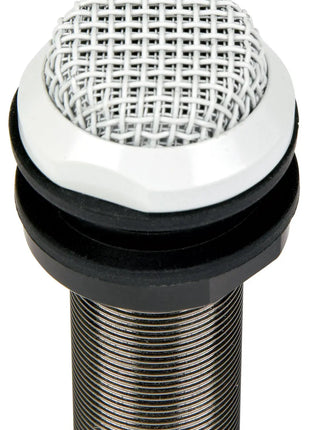

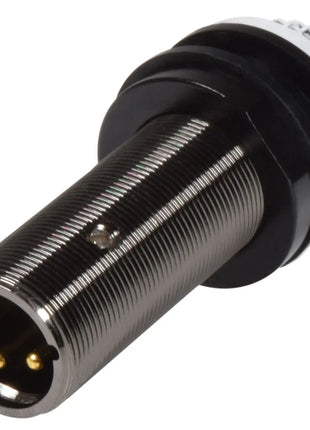

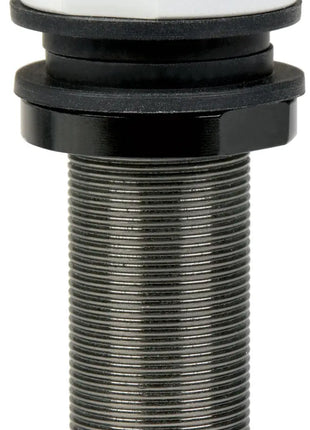

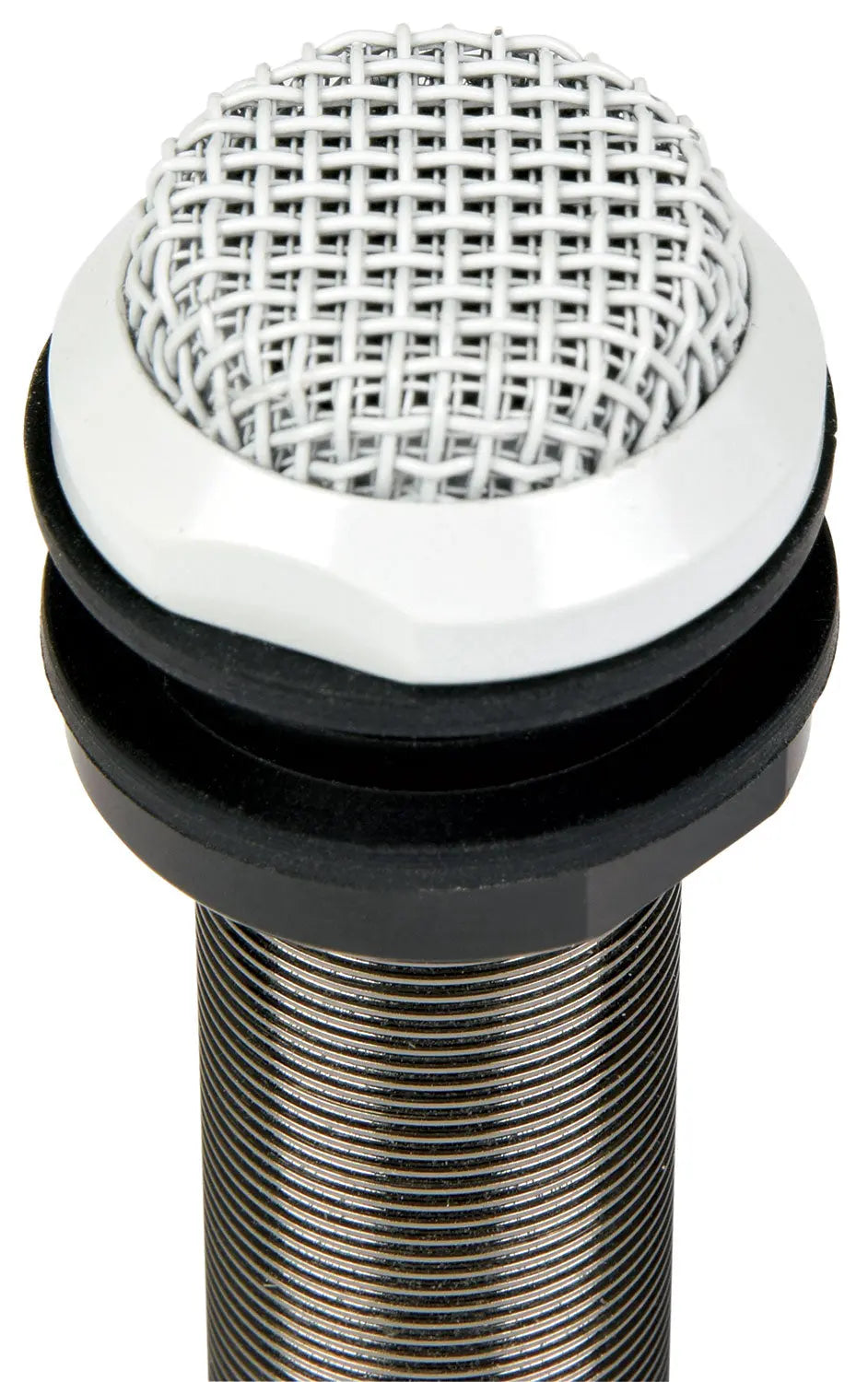

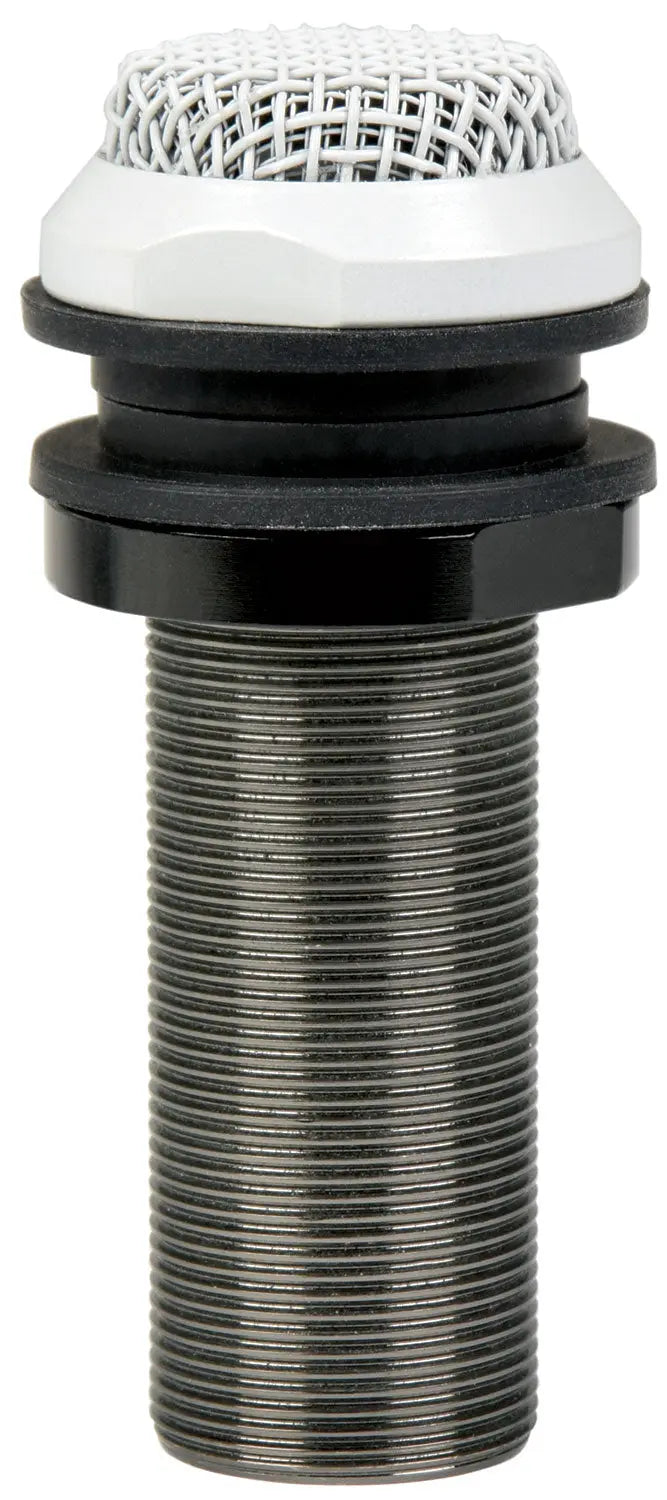

Low profile ceiling or panel mounting boundary microphone with an omnidirectional pick-up pattern which is suitable for use where discreet audio surveillance is required. Applications range from audio pick-up in induction loop systems to audio monitoring and recording for CCTV systems.
Phantom powered (9-52Vdc)
Threaded for up to 50mm through-hole mounting
Omnidirectional pickup pattern
Power supply 9-52Vdc phantom power
Cutout 20mmØ
Connection XLR male
Frequency response 50Hz-17kHz
Max. input SPL 140dB @ 1kHz (≤1% THD)
Sensitivity -39dB ±3dB (0dB=1V/Pa at 1kHz)
Impedance 200 Ohms ±30% (at 1 kHz)
Dimensions 72 x 32mmØ
Weight 76g
