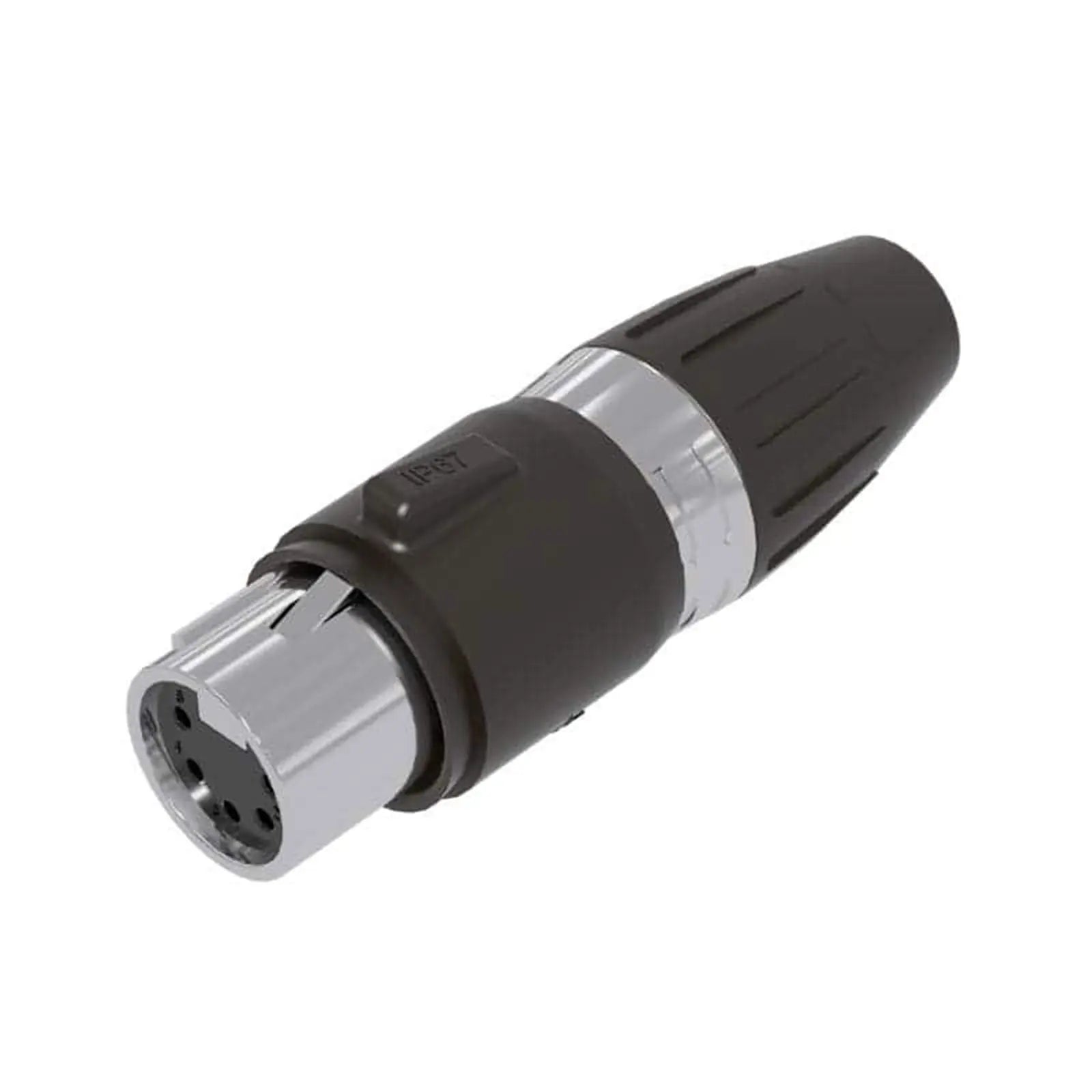

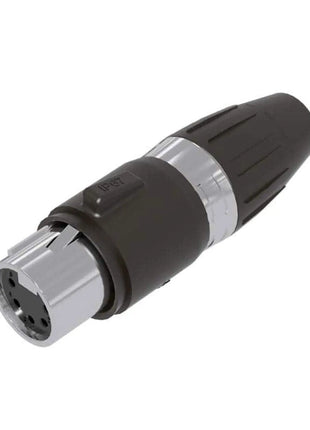

5-Pin Female XLR IP67 SCWF5-67

The Seetronic SCWF5‑67 is a rugged 5-pin XLR female cable connector engineered for high-performance signal transmission in outdoor industrial and stage environments. Featuring a chrome-plated zinc die-cast housing gold-plated copper alloy contacts and a polyurethane boot with strain relief it offers full IP67 protection low contact resistance and exceptional reliability under harsh conditions. Ideal for DMX lighting control and weatherproof audio systems.
  • IP67-rated: fully protected against dust and water ingress
  • Zinc die-cast housing with internal threads for durability and secure fit
  • Gold-plated copper alloy contacts with ≤ 3 mΩ contact resistance
  • Low capacitance ≤ 7 pF for noise-free signal transmission
  • Polyurethane boot and POM strain relief protect against cable strain and flexing
  • Latch-lock mechanism for secure mating under tension
  • Cable diameter compatibility: 5–8 mm; supports conductors up to 1 mm² (18 AWG)
  • Durability exceeds 1000 mating cycles; operating temp: –30 °C to +80 °C
Product form

5-Pin Female XLR IP67 SCWF5-67

Free pickup in our shop(s)

£5.00

  • Available
  • Fast tracked delivery
  • Service excellence guaranteed
    iFrame
    ×
    • Don't want to order online? Call us on 01635 780002

    SKU: CONN1418

    Trustpilot

    The Seetronic SCWF5‑67 is a rugged 5-pin XLR female cable connector engineered for high-performance signal transmission in outdoor industrial and stage environments. Featuring a chrome-plated zinc die-cast housing gold-plated copper alloy contacts and a polyurethane boot with strain relief it offers full IP67 protection low contact resistance and exceptional reliability under harsh conditions. Ideal for DMX lighting control and weatherproof audio systems.
    • IP67-rated: fully protected against dust and water ingress
    • Zinc die-cast housing with internal threads for durability and secure fit
    • Gold-plated copper alloy contacts with ≤ 3 mΩ contact resistance
    • Low capacitance ≤ 7 pF for noise-free signal transmission
    • Polyurethane boot and POM strain relief protect against cable strain and flexing
    • Latch-lock mechanism for secure mating under tension
    • Cable diameter compatibility: 5–8 mm; supports conductors up to 1 mm² (18 AWG)
    • Durability exceeds 1000 mating cycles; operating temp: –30 °C to +80 °C
