Description

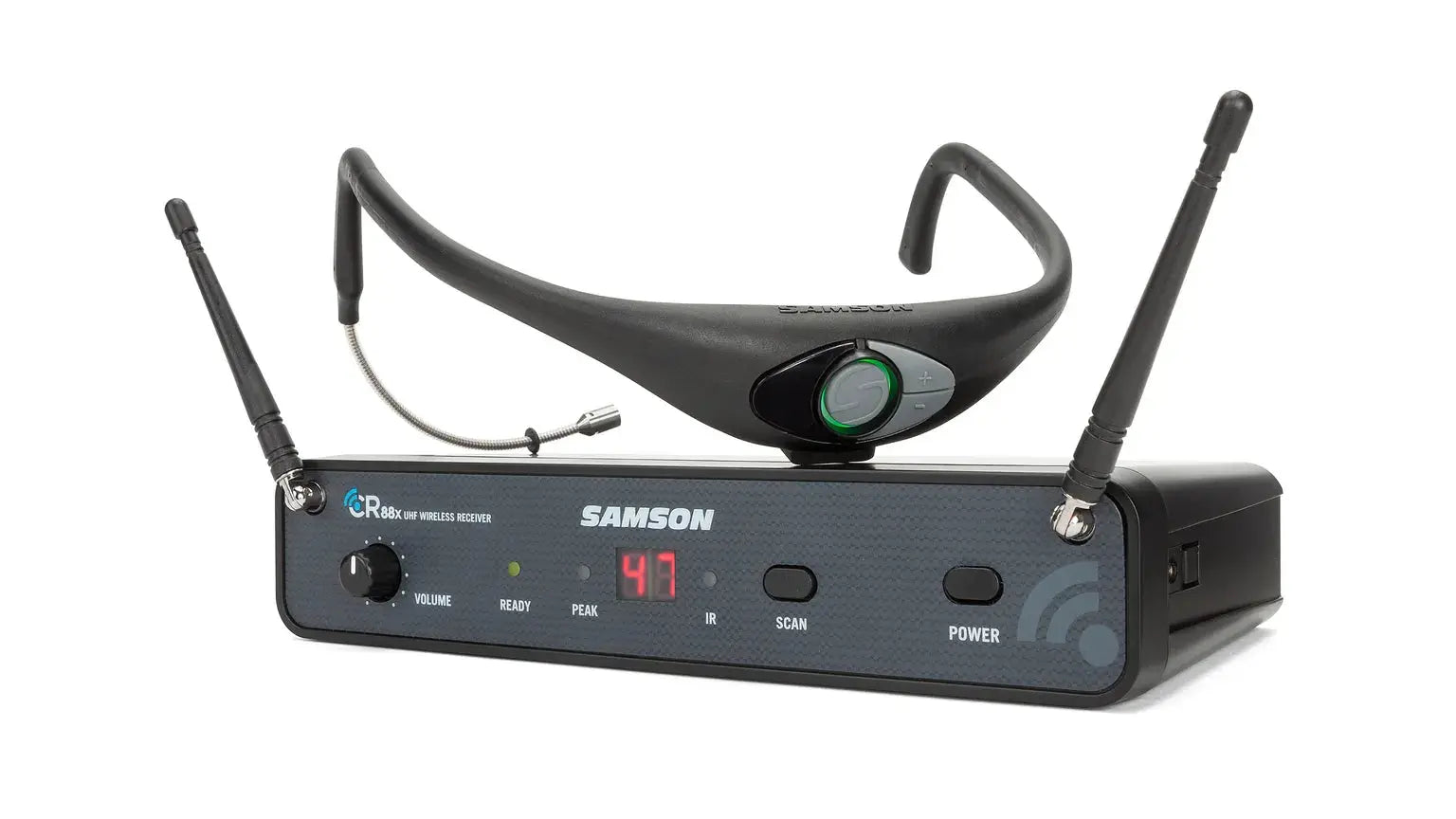

Samson AirLine 88x AH8 Fitness Headset Wireless System
The Samson AirLine 88x AH8 Fitness Headset System offers true wireless freedom specifically designed for fitness instructors and active performers. This frequency-agile wireless system eliminates the need for a belt clip or cable by integrating a micro-transmitter directly into the AH8 headset microphone. Featuring high-definition sound, a water-resistant design, and simple one-touch setup with the CR88x 100-channel true-diversity receiver, it provides reliable, high-performance professional UHF wireless audio.
Key Features
-
True Wireless Freedom: Integrated headset mic and transmitter eliminates the need for a beltpack or cable.
-
Water-Resistant Design: Features water-resistant materials and a sealed circuit board, ideal for active use.
-
Comfortable & Secure Fit: Designed to comfortably mold to the user’s head.
-
High-Definition Sound: Delivers high-definition audio with a micro-miniature Samson AE50X cardioid mic capsule and marine-grade stainless steel gooseneck.
-
Reliable Wireless Performance: High-performance professional UHF wireless system with 100 operating channels across a 25 MHz bandwidth.
-
Frequency-Agile System: Features automatic scanning/selection for 100 available frequencies.
-
Extended Operating Range: Up to 300' (100m) line of sight maximum operating range.
-
Long Battery Life: Rechargeable Lithium-ion Battery operates for up to 8 hours.
-
True Diversity Receiver: CR88x receiver features true diversity design to minimize dropouts.
-
Simple One-Touch Setup: Infrared link locks the receiver and transmitter to the same channel.
-
Clear Visual Indicators: Bold LED display and visual indicators on the receiver, plus a tri-color LED on the headset for Low Battery, Charging, Muted, Normal status.
-
Eliminates Background Noise: Tone-key and auto-mute functions eliminate background noise during dropouts.
-
Flexible Outputs: Balanced XLR and unbalanced 1/4" outputs on the receiver.
-
Rackmount Kit Included.
-
Adjustable Gain: Variable Gain control on the headset transmitter.
-
Silent Mute Switch.
Technical Specifications
-
System Type: UHF wireless system.
-
Working Range: 300' (100m) line of sight.
-
Audio Frequency Response: 50 Hz – 15 kHz.
-
T.H.D. (Overall): <1% (@AF 1 kHz, RF 46 dBu).
-
Dynamic Range: >100 dB A-weighted.
-
Signal to Noise: >95 dB.
-
Operating Temperature: –10°C (14°F) to +60°C (+140°F).
-
Tone Key Frequency: 35 kHz.
-
Headset Microphone Element: Condenser Mic.
-
Microphone Polar Pattern: Unidirectional.
-
Input Gain Range: 20dB.
-
RF Power: 10mW EIRP.
-
Headset Power Requirements: 3.6V 500mAh Lithium Ion rechargeable battery.
-
Headset Battery Life: 8 hours.
-
Headset Dimensions (LxWxH): 5.9" x 6.7" x 3.9" / 150mm x 170mm x 100mm.
-
Headset Weight: 0.13lb / 60g.
-
Receiver Audio Output Level - Unbalanced: +14 dBu.
-
Receiver Audio Output Level - Balanced: +9 dBu.
-
Receiver Audio Output Impedance - Unbalanced: 810 Ohms.
-
Receiver Audio Output Impedance - Balanced: 240 Ohms.
-
Receiver Sensitivity: -100 dBm / 30 dB sinad.
-
Receiver Image Rejection: >50 dB.
-
Receiver Operating Voltage: 15 VDC 200mA.
-
Receiver Dimensions (LxWxH): 8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm.
-
Receiver Weight: 0.88lb / 400g.
Suitable For
- Fitness instructors.
- Active performers.
- Presenters.
- Anyone requiring wireless freedom without a belt pack or cable.
What's in the box
- AH8 Fitness Headset Transmitter.
- CR88x Wireless Receiver.
- 4 foam windscreens.
- 1 stainless steel windscreen.
- Rubber headband.
- Rackmount kit.
