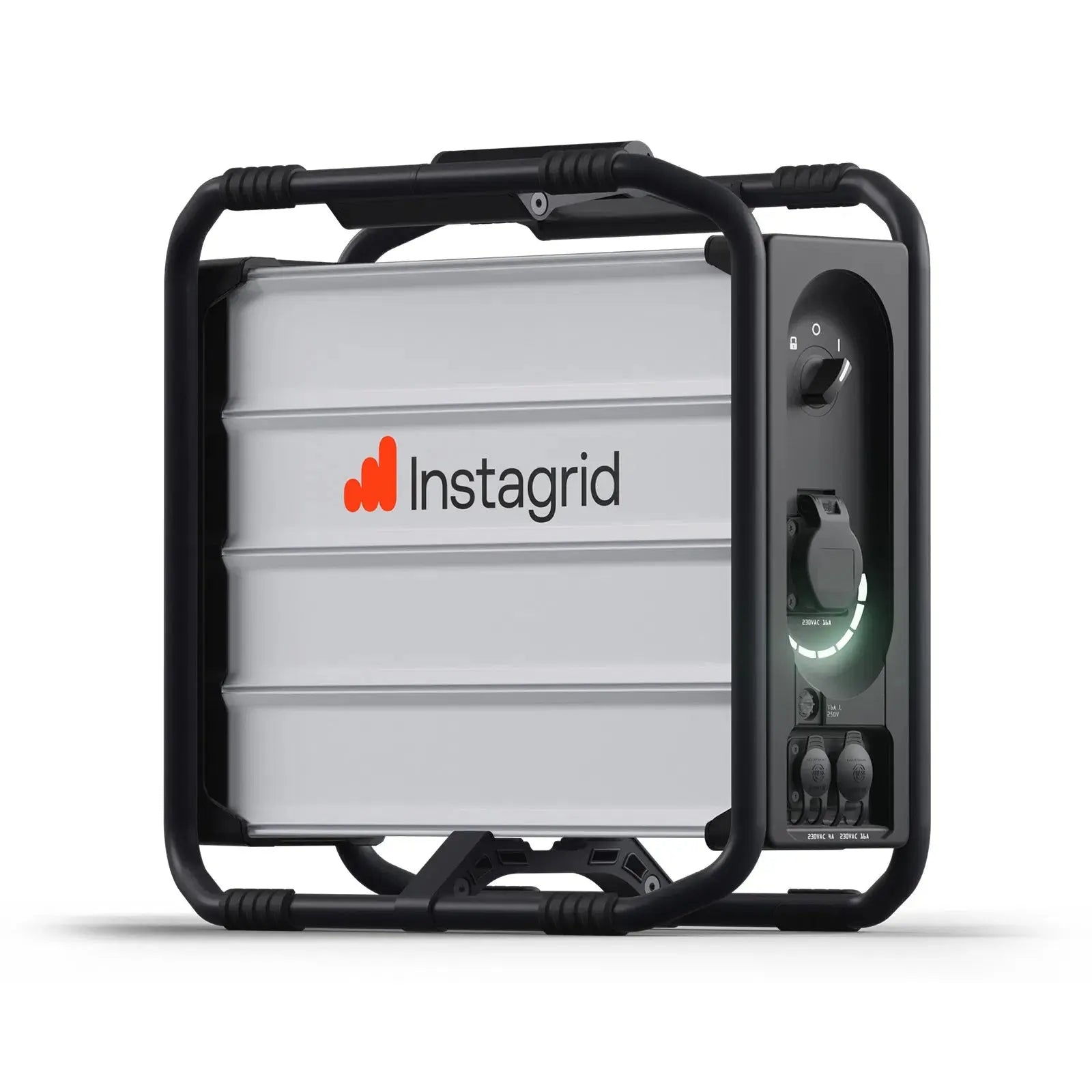

Instagrid ONE Type G - Portable Power Supply (230V, IP54)
Instagrid ONE is a powerful, portable 230V AC battery system designed to deliver grid-like performance for professionals. Weighing just 20kg, this compact unit replaces bulky generators with clean, silent, and instant power. Its rugged IP54-rated design ensures reliable performance indoors or out, across all weather conditions and environments. The fanless, zero-emissions system is whisper-quiet and recharges in under 2.5 hours from a standard 230V socket, making it ideal for film, events, construction, and remote locations.
Key Features
High Power Output: 3,600 W rated output and up to 18,000 W peak power capacity for demanding electrical loads.

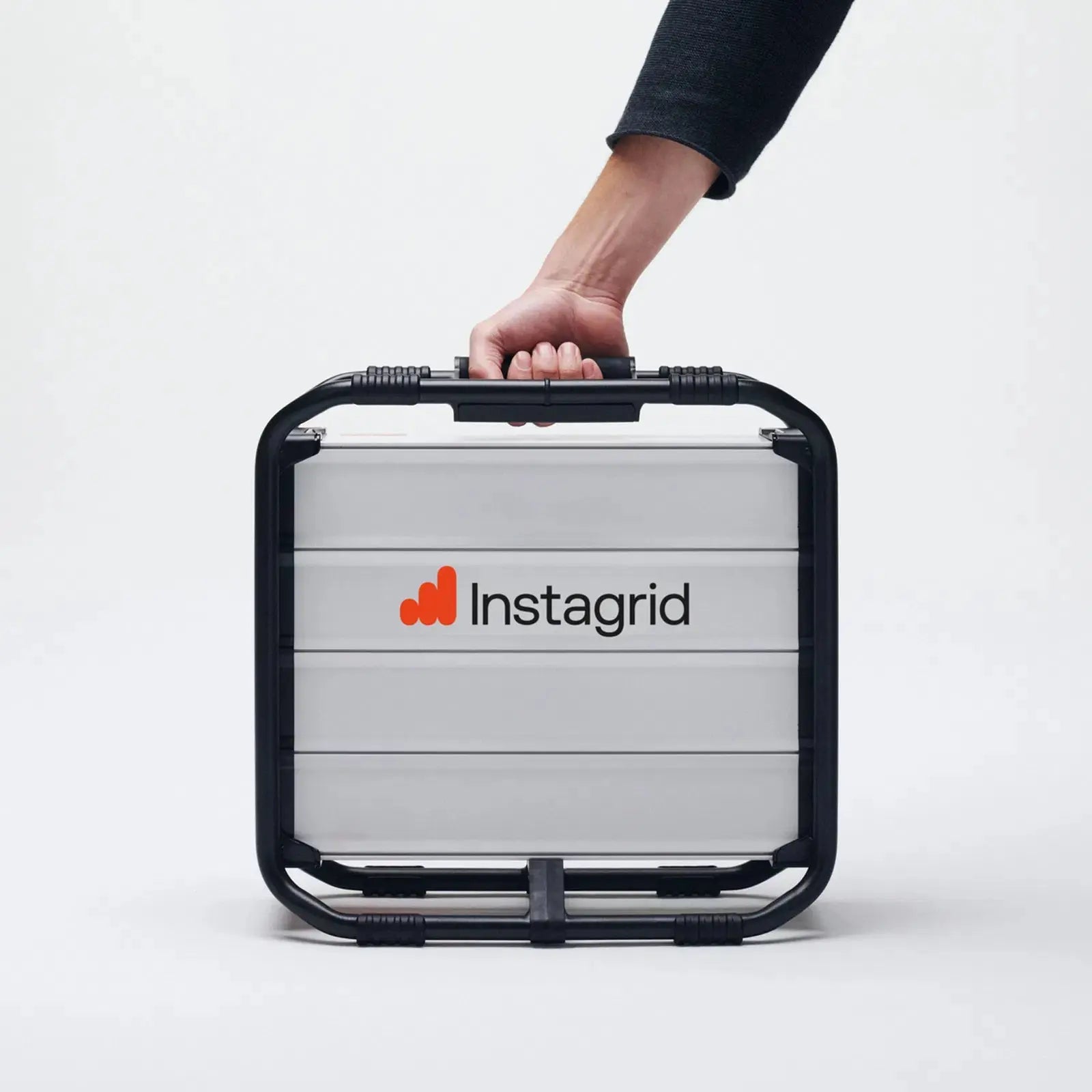

Ultra-Portable: Weighs just 20kg and features an integrated handle, allowing it to be carried in one hand.
Fast Recharge: Recharges from 0–100% in under 2.5 hours from a standard 230V AC socket.
Rugged & Weather-Resistant: IP54-rated for dust and splash resistance, ensuring reliable performance across all weather conditions and environments.
Silent & Zero-Emissions: Fanless design results in whisper-quiet operation (<30 dB(A)) with no fumes or fuel required.
Wide Operating Temperature: Functions reliably in temperatures from –20°C to +60°C (discharging).
Dual Outputs: Includes 1 x BS 1363 (13A) and 1 x Neutrik PowerCON TRUE1 TOP® output sockets.
Overload Tolerance: Handles demanding loads with tolerance for 150% (5,400W) for up to 500 sec, 200% (7,200W) for up to 50 sec, and 250% (9,000W) for up to 10 sec.
Expandable Capacity: Works with Instagrid LINK and LINK MAX for expanded capacity.
Real-time Monitoring: Via the Instagrid App (charge, temperature, location, usage).
Technical Specifications
Rated Output Power: 3,600W (230V AC / 16 A).
Peak Output Power: 18,000W.
Overload Tolerance: 150% (5,400W) for up to 500 sec; 200% (7,200W) for up to 50 sec; 250% (9,000W) for up to 10 sec.
Output Voltage: 230V AC / 50Hz.
Output Sockets: 1 x BS 1363 (13A); 1 x Neutrik PowerCON TRUE1 TOP®.
Input Voltage (Charging): 100–240V AC / 50–60Hz.
Input Power (Charging): 400–960W.
Charge Time: Under 2.5 hours (from 0–100%, using 230V AC).
Battery Capacity: 2,074Wh (24 x 86.4Wh modules).
Battery Type: Lithium-ion (stacked micro-inverter architecture).
Weight: 20kg.
Dimensions (L x W x H): 420 x 210 x 420mm.
Operating Temperature: –20°C to +60°C (discharging); 0°C to +45°C (charging).
Protection Class: Class II (double-insulated).
IP Rating: IP54 – dust and splash resistant.
Noise Emission: <30dB(A) – fanless design.
Mounting & Transport: Integrated handle; suitable for standalone or LINK systems.
Certifications: CE (RED, LVD, EMC, RoHS, WEEE), REACH-compliant.
Suitable For
Professionals working in film.
Event professionals.
Construction industry.
Professionals in remote locations.
Anyone needing to power lighting, AV gear, production tools, or catering equipment.

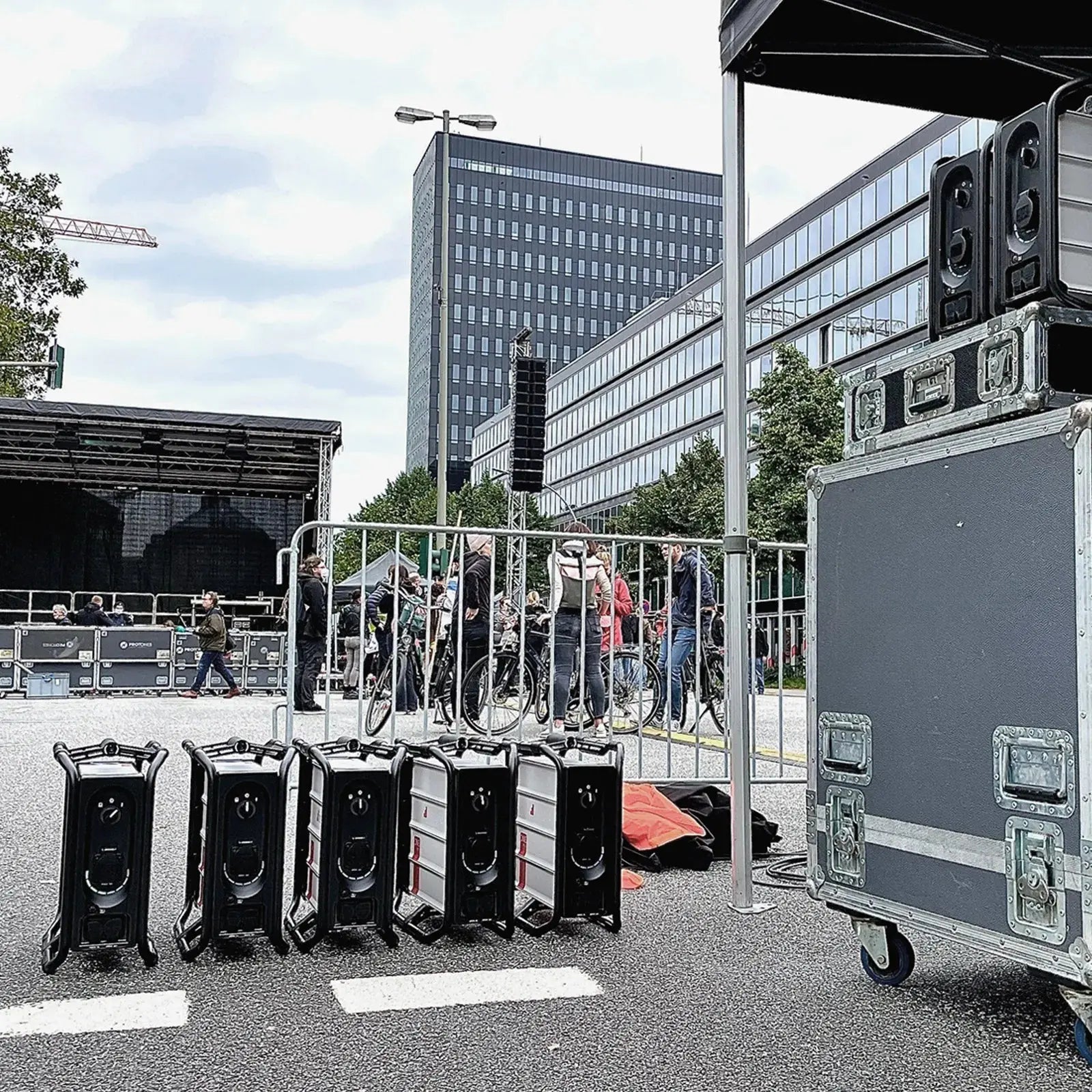

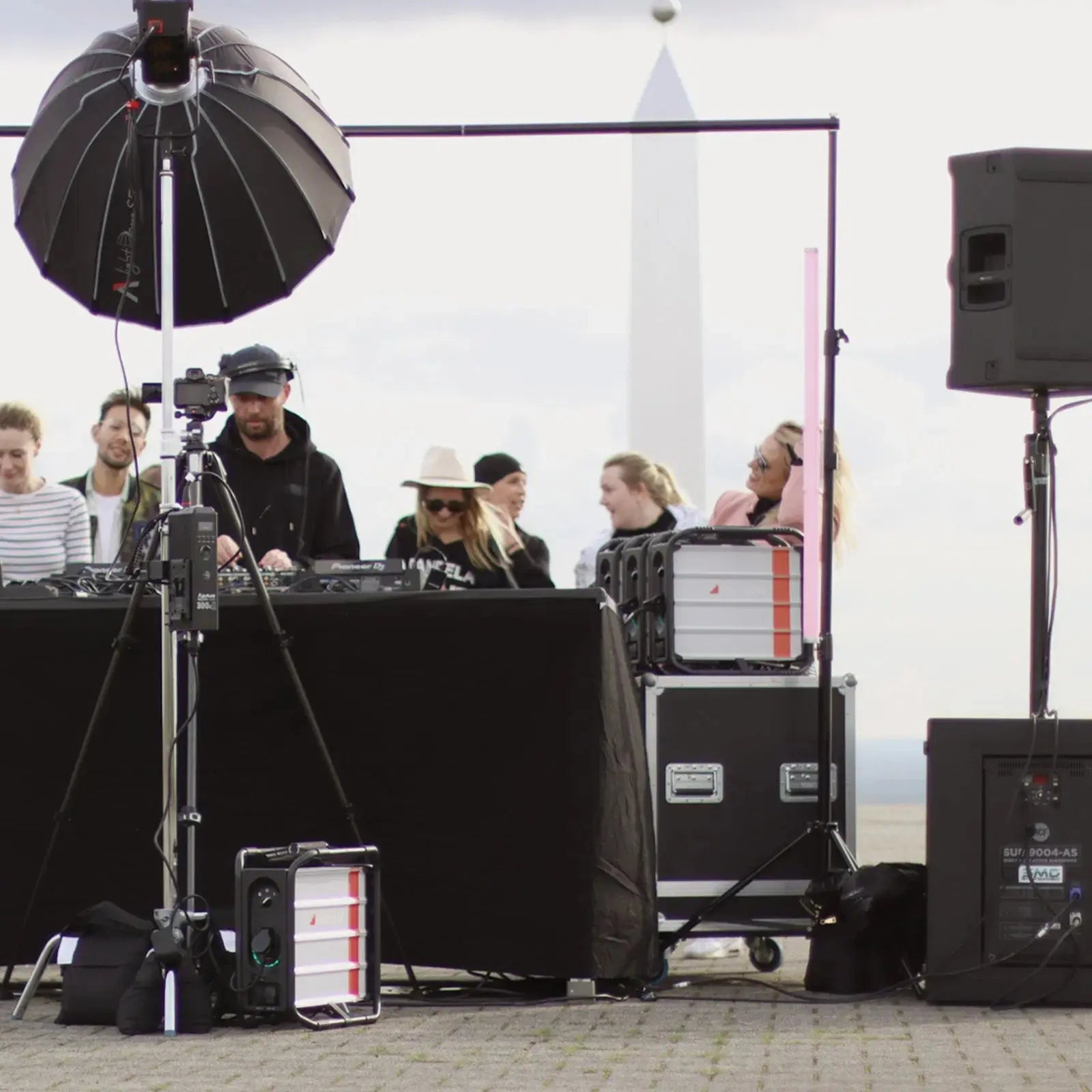

DJs and musicians powering PA systems at music events.
What's in the box
Instagrid ONE Type G Portable Power Supply.
(Specific cables or chargers are implied by "Input Voltage (Charging)" but not explicitly listed in a "what's in the box" section within the provided text. Usually, the main charging cable would be included).
