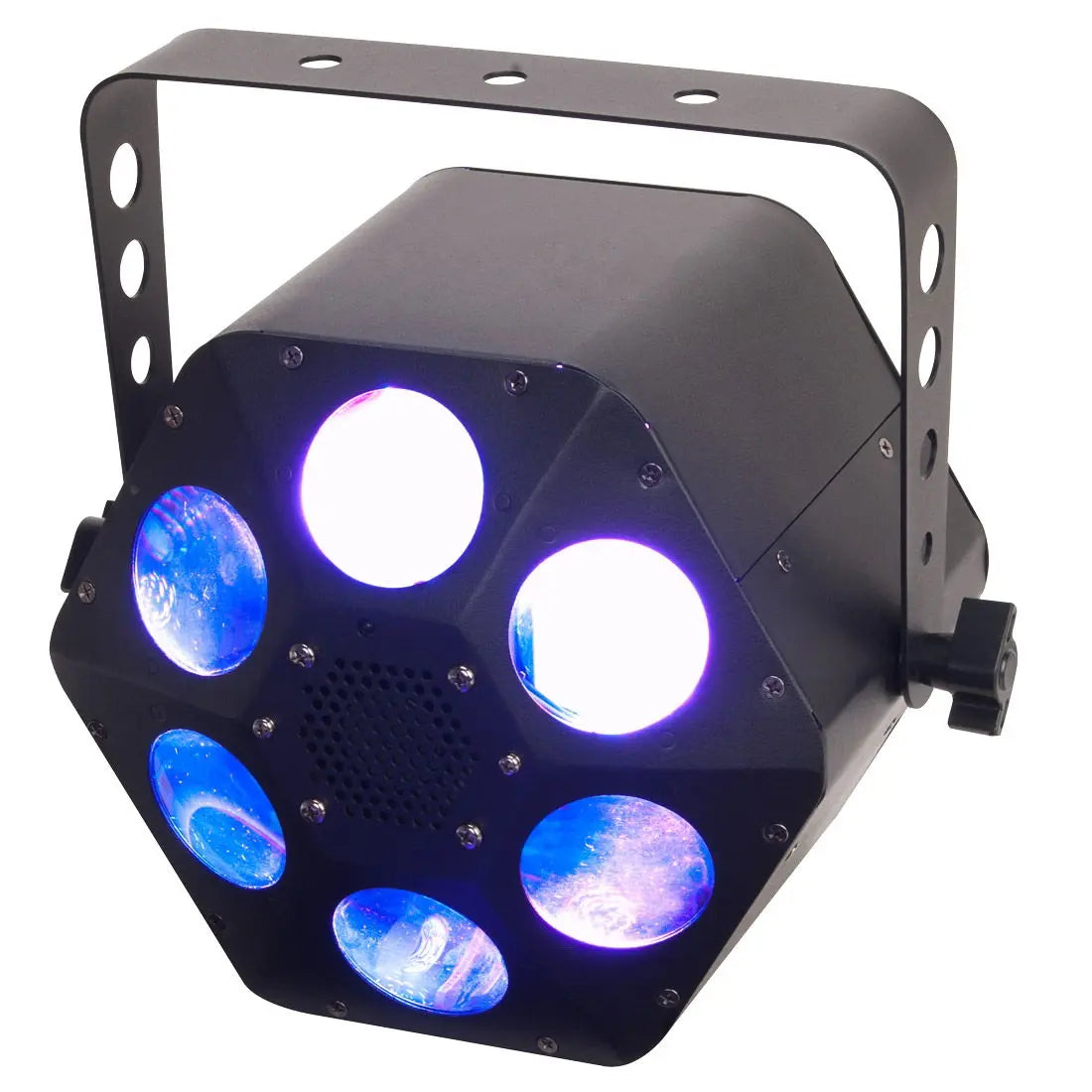

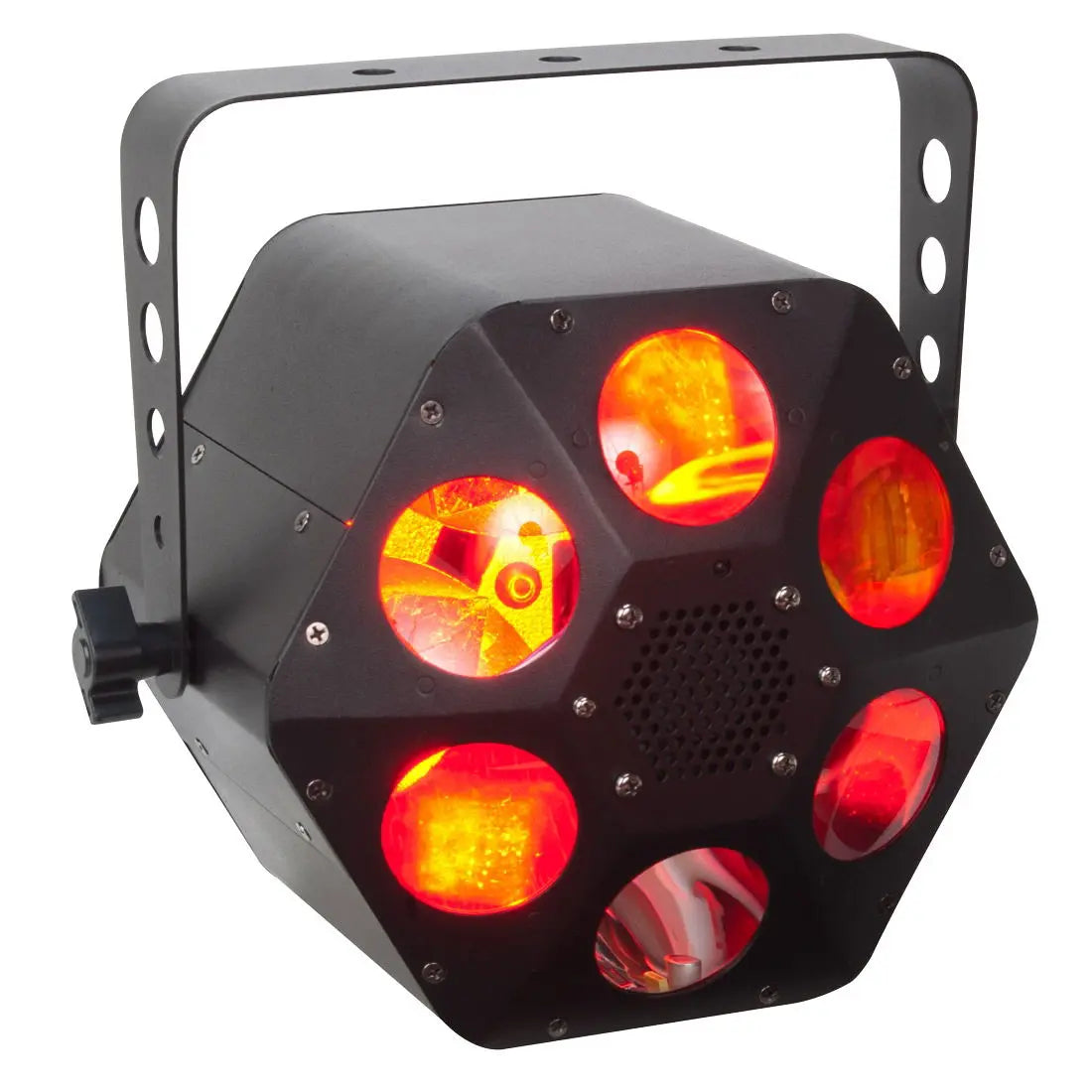

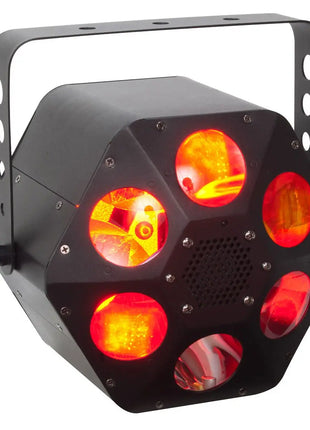

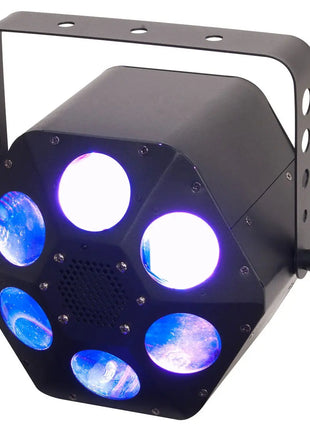

ADJ's Quad Phase HP is designed to fill a room and dazzle a crowd with dozens of razor sharp beams of light. This technologically advanced moonflower features a high-powered 32-Watt 4-in-1 quad colour LED source (RGBW). Offering twice as many majestic colours as a “TRI LED” the Quad Phase HP produces up to fifteen colours in all.
The Quad Phase HP also offers all the latest features sought after in special effects lights such as: DMX-512 for programming or linking capabilities exciting built-in sound active programs no duty cycle (run all night) a long life high output LED source (30000 hours) 4-button DMX display on rear (for easier programmability) IEC power daisy-chaining and a 1.8-degree stepper motor for smooth movement. The Quad Phase HP may be controlled by any DMX Controller.
Specification
Features:
High output Moonflower effect with 32-Watt Quad-Colour LED 4-in-1 (Red Green Blue White) technology produces colour-changing beams of light Dozens of razor sharp beams fill a dance floor ceiling or wall Using a 1.8 Degree Long Life Stepper motor Technology it can produce quick accurate movement or smooth fluid move movements for mood music Runs extremely cool! - NO Duty Cycles! - Run all night!
Source:
Light Source: 32W RGBW LED 4-in-1 Long life LEDs (30000 hr. rating) Beam Angle: 65 degree
Control:
4 DMX Channels (Colour Rotation Strobe Shutter) Operation modes: Sound Active Primary/Secondary or DMX-512 Exciting built-in programs Produces 15 Preset Colours Strobe & Pulse LED Effect Electronic Dimming: 0 - 100% Compatible with the UC-IR Remote 4-button DMX display on rear panel
Connections:

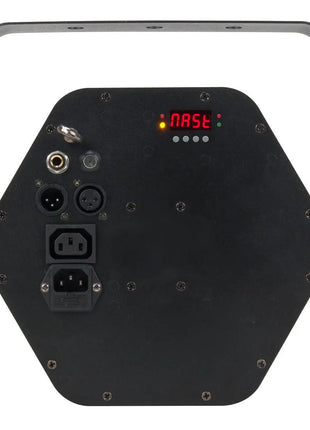

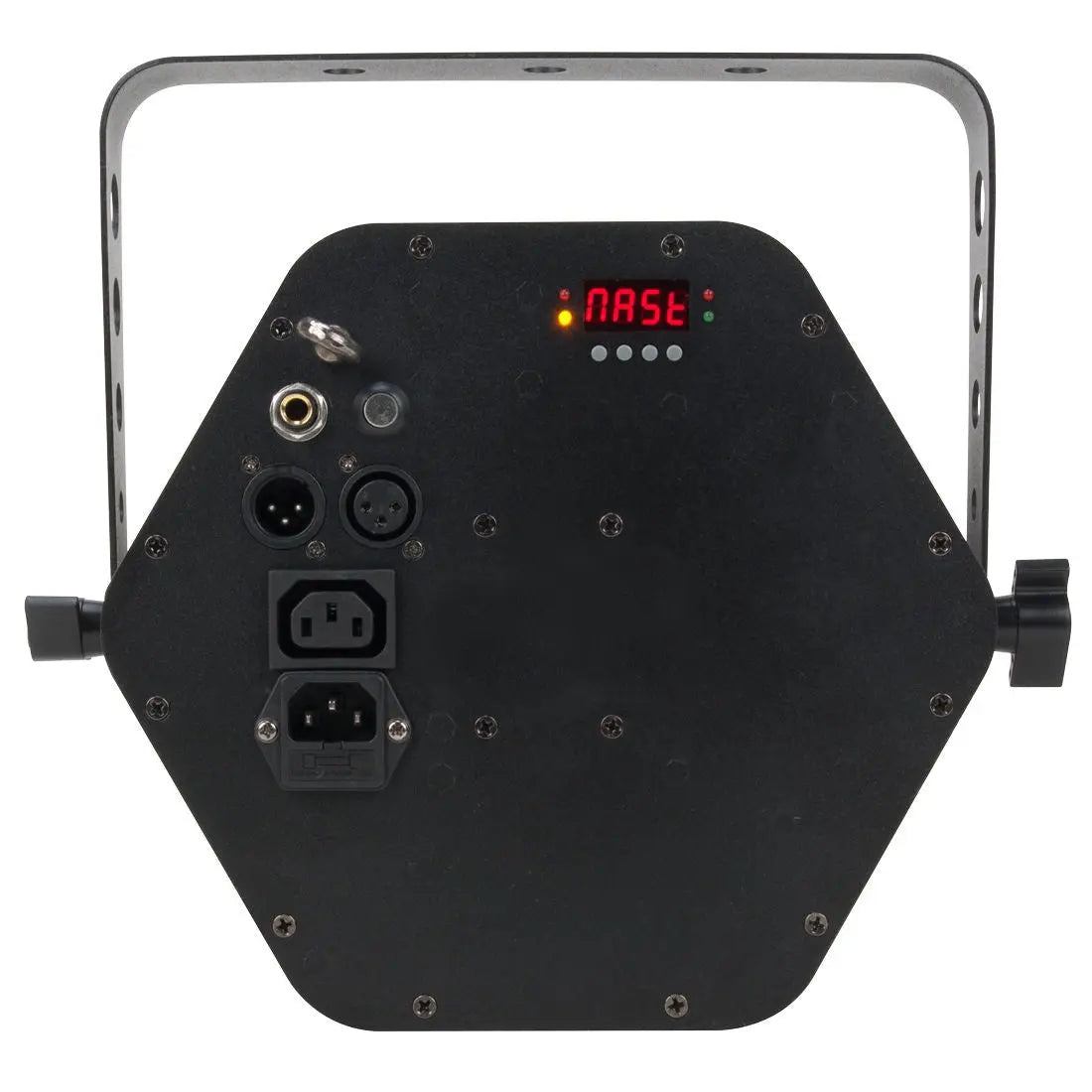

DMX: 3-pin XLR in/out Power: IEC AC IN/OUT on rear to daisy chain power (up to 9 Quad Phase HP’s @ 230V )
Electrical:
Power Draw: 64W Max Multi voltage: 100V~240V 50/60Hz
Dimensions & Weight:
Dimensions (LxWxH): 312 x 198 x 279mm Weight: 4 kg.
